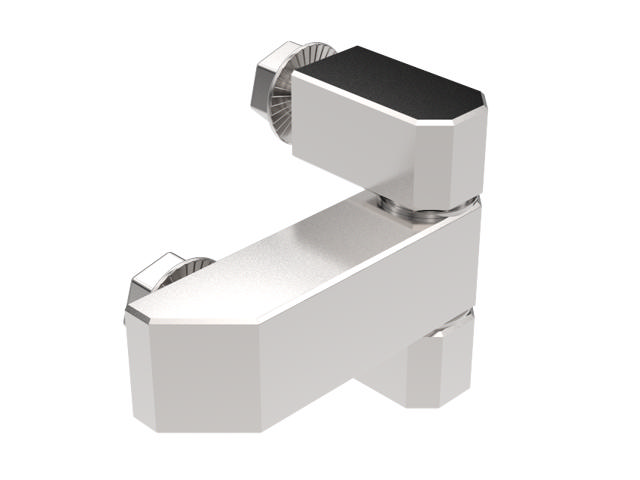

    External Bolt-On Hinge 180°

    Index Code 3-520
    180° opening angle of hinges Universally right or left mounted

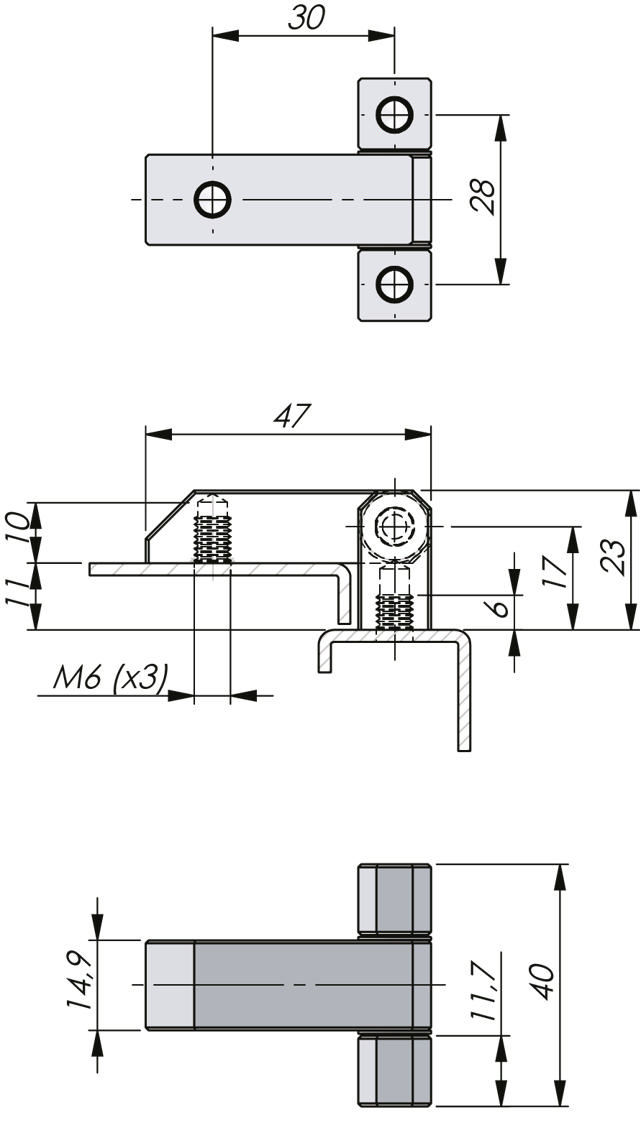

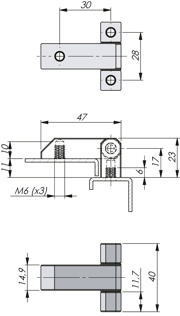

    External bolt-on hinge for surface mounted doors with universal left and right mounting. Opening angle 180°. Offset between frame part and door part is 11 mm.

    Download PDFRecommended Tightening Torque
    ScrewSteel, zinc plated
    HingeZinc die cast, zinc plated or black texture powder coated
    PinSteel, zinc plated
    WasherBrass, nickel plated
    NotesEach hinge is supplied assembled and with three mounting screws M6 x 6 mm.
    Choose CAD format here: INFO_TEXT
    Download here:
    CAD* P/N Surface treatment
    		321110  Zinc plated
    		321610  Black powder coated
