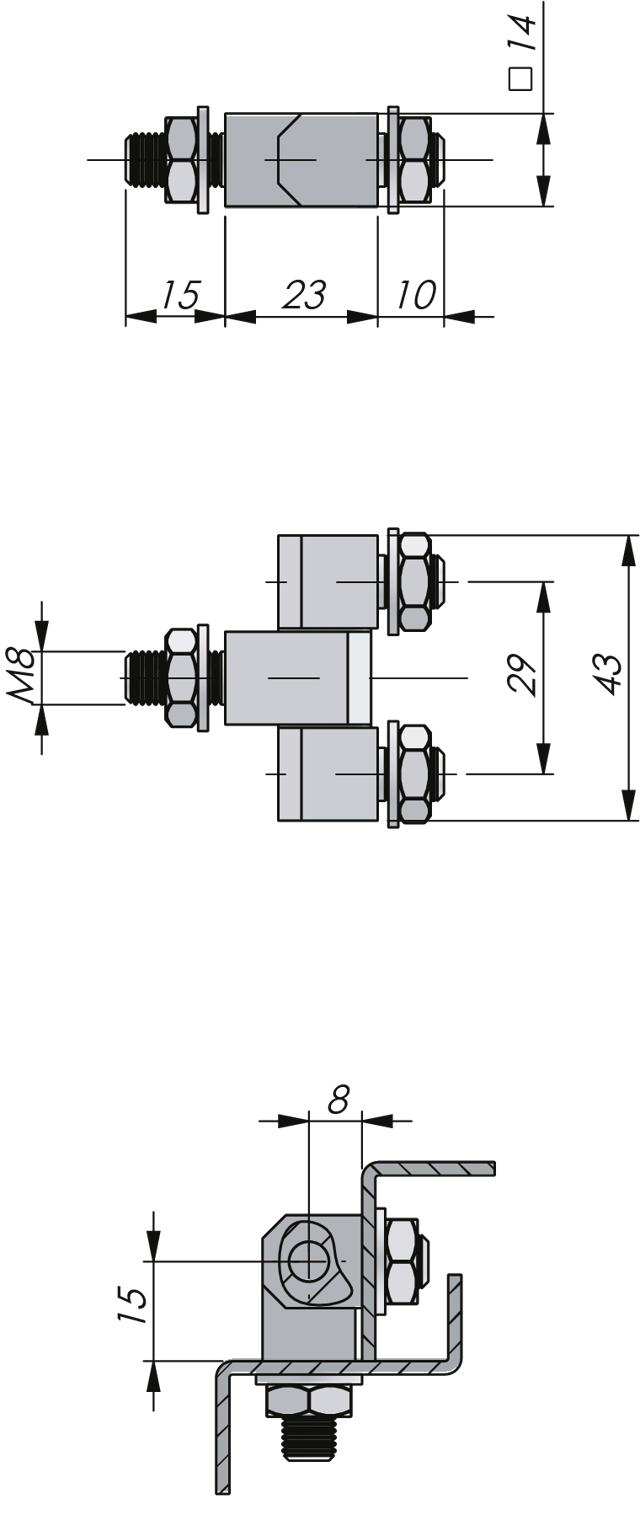

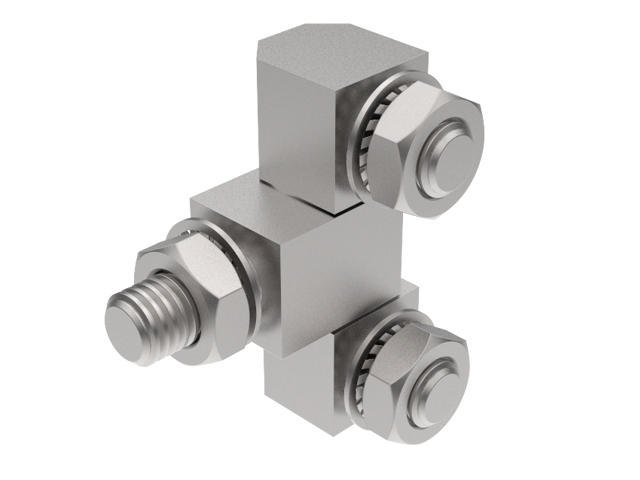

    External Bolt-On Hinge 180°

    Index Code 3-530
    180° opening angle of hinges Universally right or left mounted

    External bolt-on hinge for surface mounted doors with universal left and right mounting. Opening angle 180°.

    Download PDFRecommended Tightening Torque
    NutSteel, zinc plated
    HingeSteel, zinc plated
    PinBrass, nickel plated
    WasherBrass, nickel plated
    NotesSupplied unassembled, with nuts and washers.
    Choose CAD format here: INFO_TEXT
    Download here:
    CAD* P/N Description (OLD)
    		322115 Bolt-on hinge
