    Butt Hinge Stainless Steel

    Index Code 6-496
    180° opening angle of hinges Universally right or left mounted Stainless steel

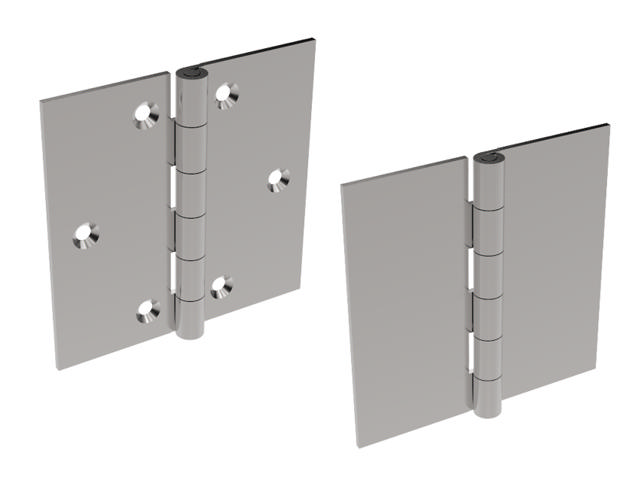

    Cold rolled butt hinge in stainless steel with or without countersunk holes. Universal left and right mounting.

    Download PDFRecommended Tightening Torque
    HingeStainless steel 304
    Notes

    The J-measurement describes the largest diameter of the countersunk - and not the diameter of the hole.

    For the holed hinges, we recommend any of the following screws for mounting:

    • Countersunk screws against DIN EN ISO 2009.
    • Screws with raised countersunk head against DIN EN ISO 2010.
    • Countersunk screw against DIN EN ISO 7046-1.
    • Screws with raised countersunk head against DIN EN ISO 7047.
    Choose CAD format here: INFO_TEXT
    Download here:

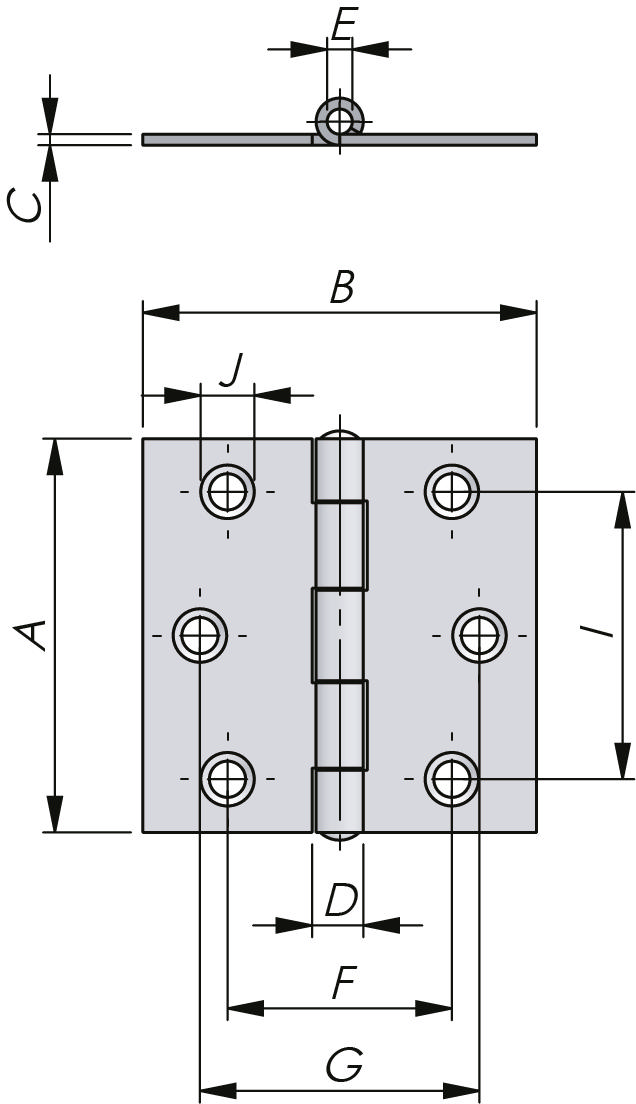

    CAD* P/N Cutout A B C D E F G I J Holes
    		3430-303000-4040 40 40 1,0 5,2 3,0 - - - - -
    		3430-303000-5050 50 50 1,4 6,2 3,0 - - - - -
    		3430-303000-6060 60 60 1,4 6,2 3,0 - - - - -
    		3430-303001-4040 40 40 1,0 5,2 3,0 22,5 - 25,0 4,9 4 x
    		3430-303001-5050 50 50 1,4 6,2 3,0 18,0 35,0 35,0 5,8 6 x
    		3430-303001-6060 60 60 1,4 6,2 3,0 18,0 45,0 45,0 5,8 6 x
    		3430-303001-7070 70 70 1,4 6,2 3,0 41,0 54,0 55,0 6,8 6 x
    		3430-303001-8080 80 80 1,4 6,2 3,0 41,0 65,0 65,0 6,8 6 x
    		3430-303000-8080 80 80 1,4 6,4 3,0 - - - - -
