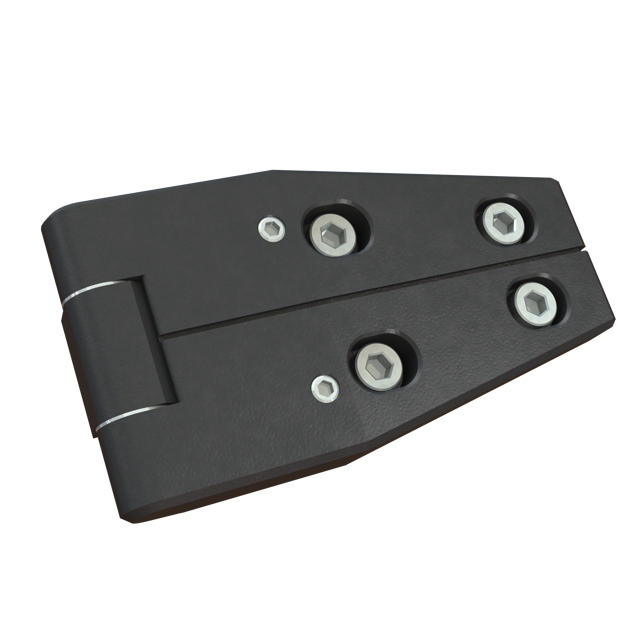

    Klima-flex Adjustable 3D-Hinge 180°

    Index Code 3-163
    180° opening angle of hinges Universally right or left mounted Adjustable in X-, Y- and Z-axis

    Specifically designed hinge to simplify mounting on insulated doors. Adjustable in the X-, Y- and Z-axis by 3 mm.

    Supplied with adjustment screws and fastening plate.

    Download PDFRecommended Tightening Torque
    HingeZinc die cast, zinc plated or black texture powder coated
    Mounting plateZinc die cast, zinc plated
    PinSteel, zinc plated
    Choose CAD format here: INFO_TEXT
    Download here:
    CAD* P/N Surface treatment
    		321151-3D Zinc plated
    		321651-3D Black texture powder coated
