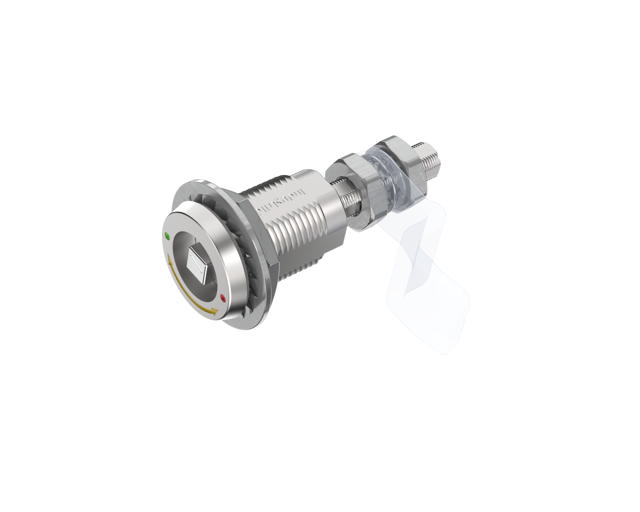

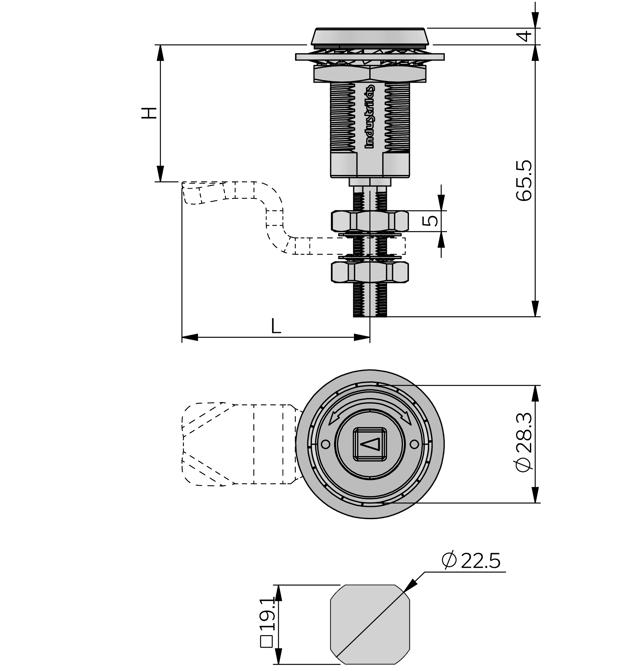

Compression Latch

Index Code 2-133
Tool operated insert Classified according to IP66 Adjustable grip range (Z-axis) Vibration-resistant according to DIN EN 61373 Latch with compression function

Compression latch that closes and tightens with a single continuous half-turn motion. First 90° turn moves the cam 90°, the second 90° turn retracts the cam 6 mm. The extended, threaded shaft allows you to place the cam along its entire length, resulting in a adjustable grip range. Fix the cam with the counter-nuts. The latch is supplied assembled and cam is ordered separately. Available in clock wise and counter clock wise rotation to open / close. Red dot indicate closed and compressed latch and green dot indicates open and uncompressed latch. Sealed against dust and water according IP66.

Download PDFRecommended Tightening Torque
HousingZinc die cast, chrome plated
NutZinc die cast, zinc plated
InsertZinc die cast, chrome plated
Counter-nutsSteel, zinc plated
WasherSteel, zinc plated
ShaftSteel, zinc plated
StandardsIP66
Notes

Other inserts on request.

Latch is supplied with screw with mechanical thread lock.

Choose CAD format here: INFO_TEXT
Download here:
3D CAD files are for reference only and are not a quality document. Errors may occur. Read full disclaimer

The 3D CAD models are provided as a design aid and for reference only. They are not a quality document and do not replace official product specifications, technical drawings or data sheets. Simplifications, inaccuracies or errors can occur, for example in dimensions, tolerances or details, and may also arise when files are converted between formats. Industrilås accepts no liability for errors in the CAD files or for any consequences of their use. Always verify critical dimensions against the current product documentation, or contact us if you are unsure.

CAD* P/N Insert Opening Rotation
241379-2082-0000 Square 7 Counter clockwise
241379-2083-0000 Square 7 Clockwise
