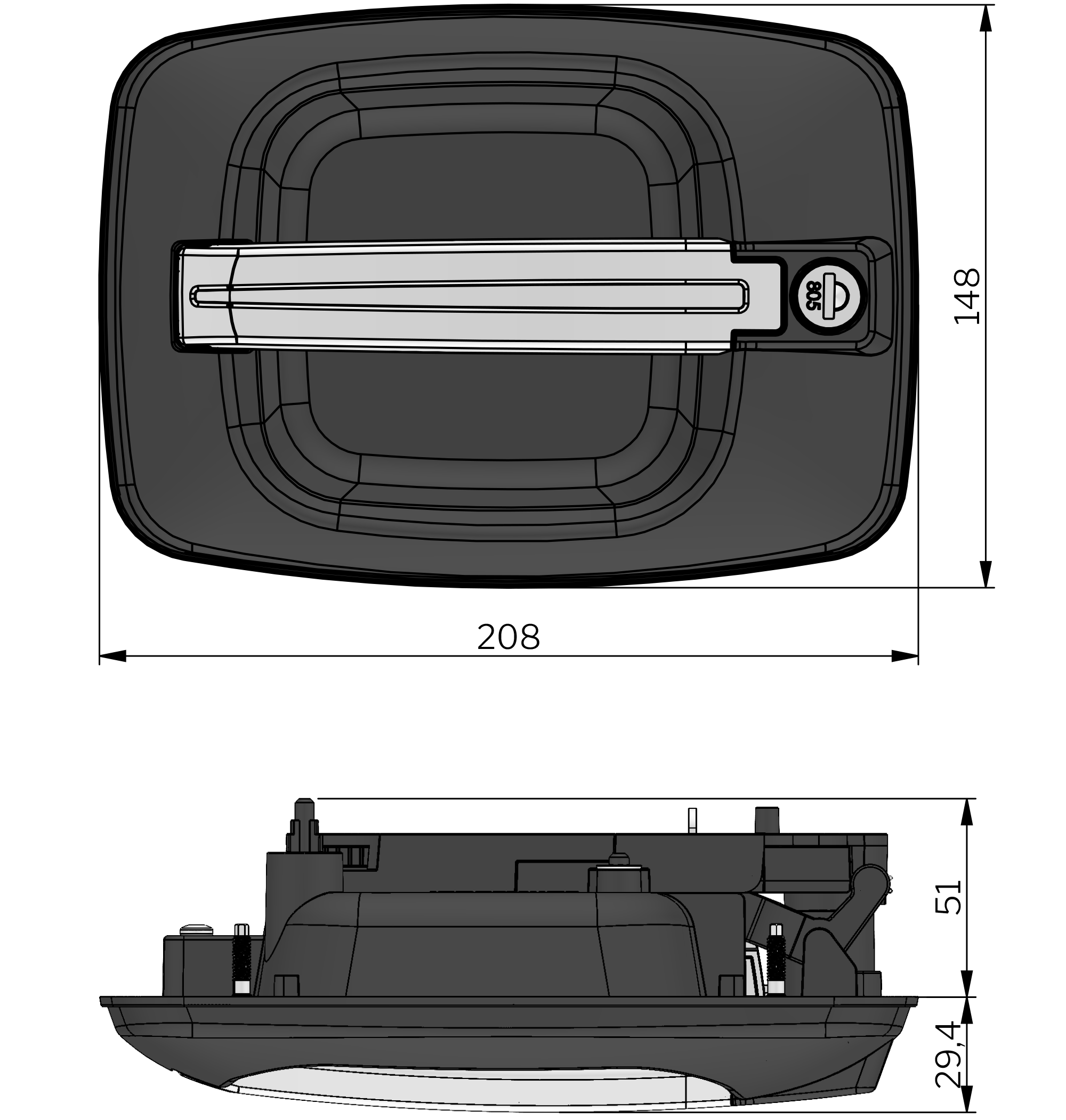

Vector Pull Handle

Index Code:
2-850

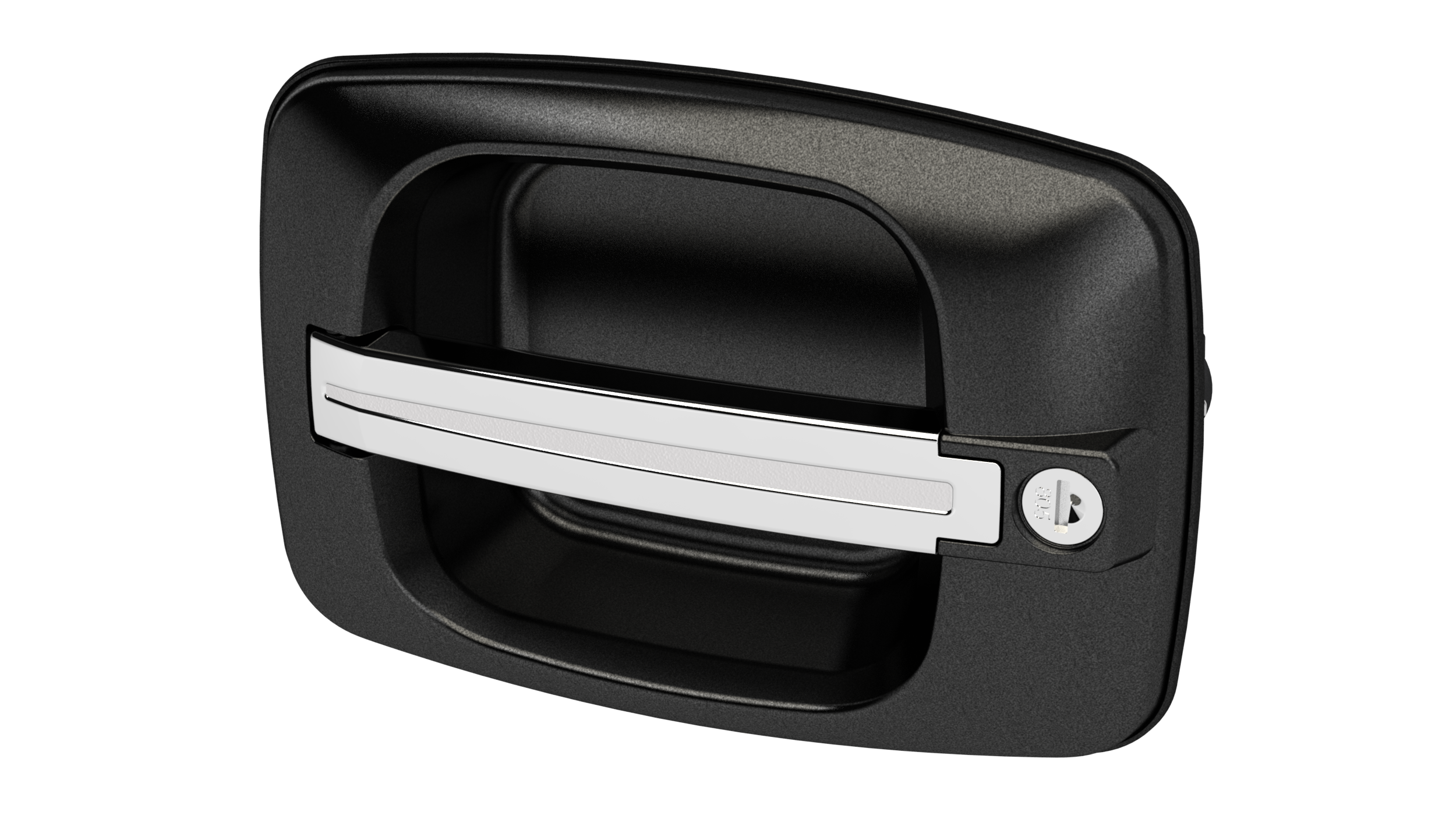

Robust handle to operate doors equipped with Vector Rotary Latches or Vector Latch Points. The freewheeling locking mechanism ensure the latched status of the door in every situation, regardless of how much force is applied to the handle. Vector Pull Handle is ordered either as an actuator for a single point latching system or as a multi version with the possibility to connect a maximum of three latching points to the handle. The connection to the latch points can be done with either Vector cables or rods. Sealed against water and dust with o-ring and molded TPE-gasket.

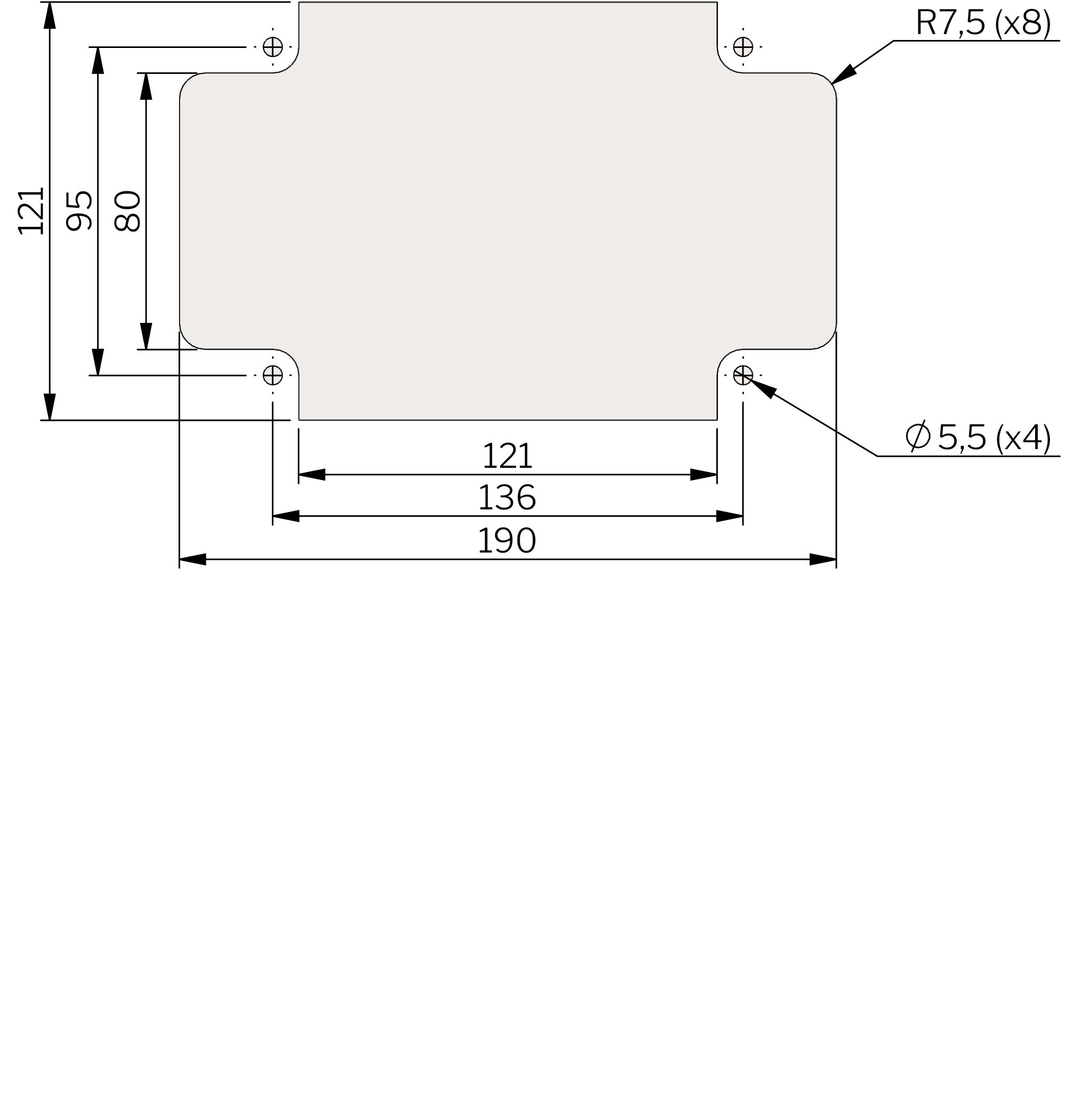

Mounted into the door with the four pre-mounted M5 bolts.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
BodyPolycarbonate and acrylic styrene acrylate terpolymer (PC/ASA)
BracketSteel, zinc plated
Cast-in boltsSteel, zinc plated
CylinderZinc die cast, stainless steel 304 cap and dust shutter
GasketsTPE
HandleZinc die cast, chrome plated or black texture powder coated
O-ringSilicone
SpringSpring steel EN 1.4310
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account
Make your selections in each column to create your article number (AAAA-BBCCDD-EFGG)
AAAA Type
2950Pull handle
BB Material Tray
50PA6GF30
CC Material / Surface treatment
12Zinc die cast, chrome plated
16Zinc die cast, black texture powder coated
DD Cylinder
06Keyed alike CH751
20Keyed alike 455
21Keyed alike 805
69Keyed alike 810
70Keyed alike 815
71Keyed alike 820
72Keyed alike 825
73Keyed alike 830
74Keyed alike 835
75Keyed alike 840
76Keyed alike 845
77Keyed alike 850
E Mounting
0Cast-in bolts
F IP class
5IP65
GG Cable / Rod connection
11Cable, single
14Cable, multi max 3
21Rod, single
24Rod, multi max 3
