2-112 |

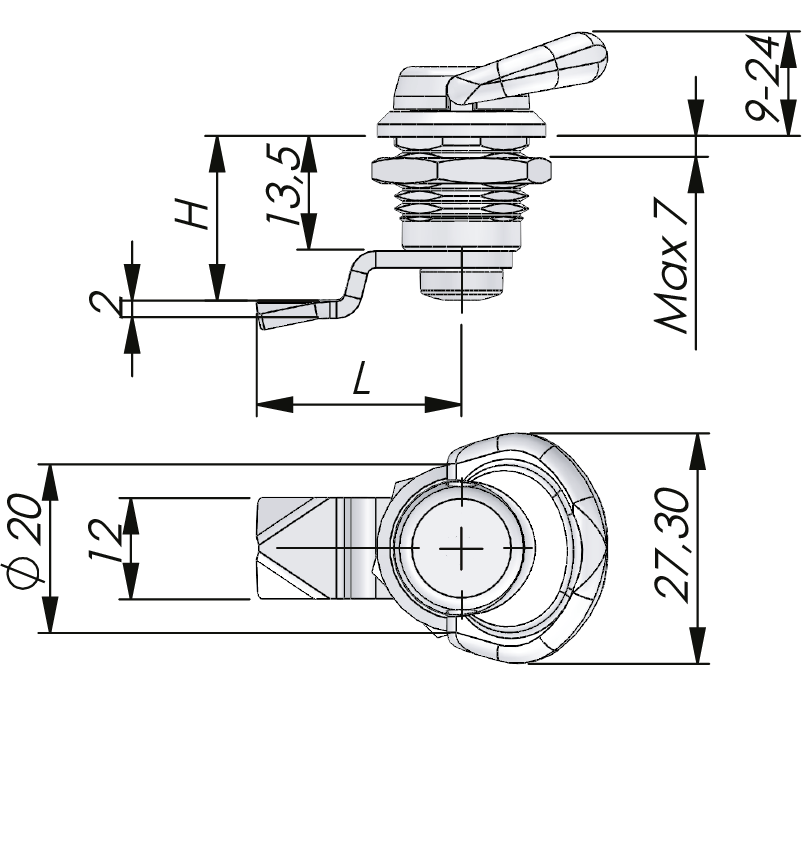

Drehriegelverschluss Compact Knebel-Griff 13,5 mm
Index Code:2-112
Vibrationsresistenter, kompakter Drehriegelverschluss mit Knebel-Griff. Für Öffnen oder Schließen in Drehrichtung im oder gegen den Uhrzeigersinn einsetzbar. IP65 Schutzklasse durch O-Ring am Betätigung und Dichtung am Gehäuse.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Download PDF | Industrilas cut out versions |
| Cam and screw | Steel, zinc plated |
|---|---|
| Housing | Zinc die cast, chrome plated or black texture powder coated |
| Nut | Brass, zinc plated |
| Washer | Stainless steel 304 |
| Wing knob | Zinc die cast, chrome plated or black texture powder coated |
| Cutout | COMPACT |
|---|---|
| Classifications | IP65 |
| Notes | Earthing nut can be ordered separately, see related products. |
To download CAD-files, you need an Industrilas account. It only takes a minute.
Make your selections in each column to create your article number (AAAA-AAAABC-HHLL)
|
|
|
|
* Gerade Zunge.
