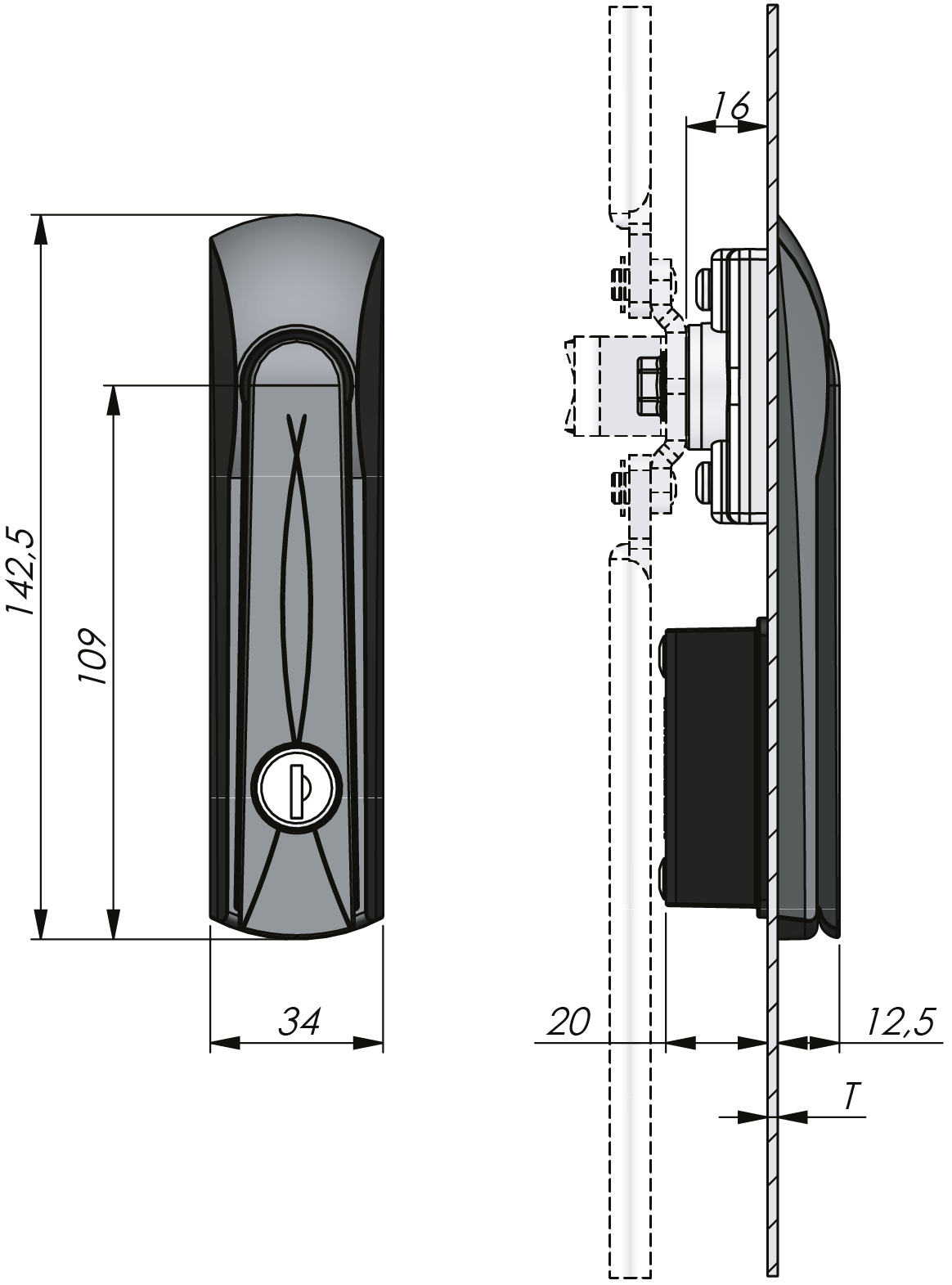

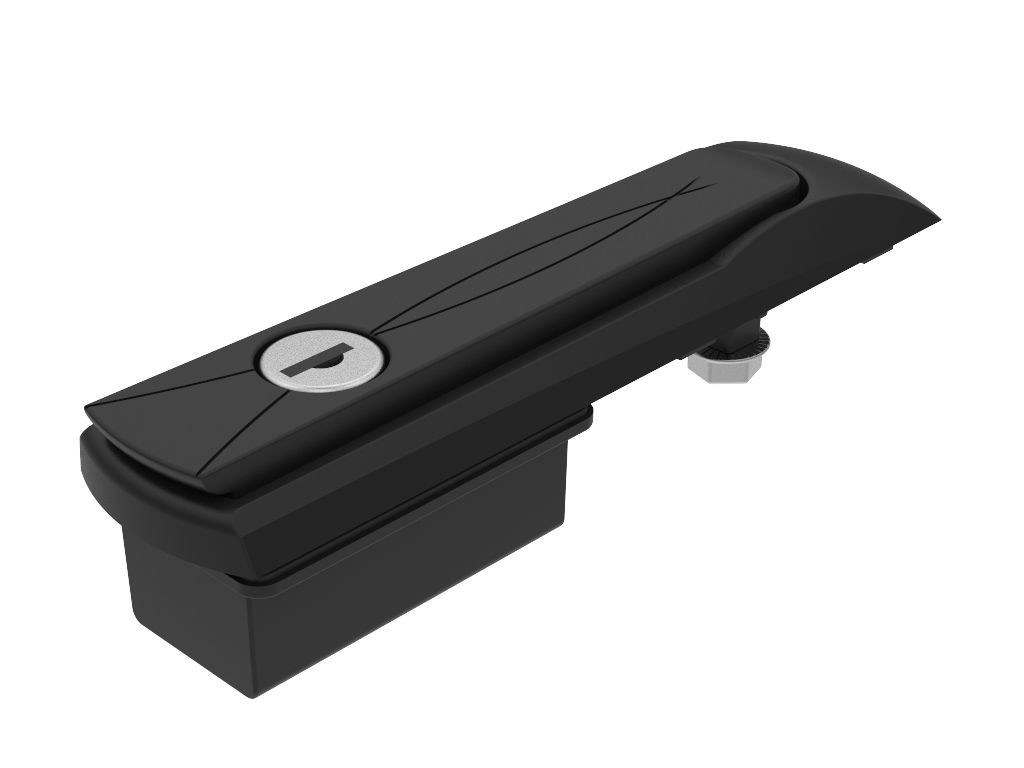

Vision Schwenkhebel Compact mit Zylinder
Index Code:1-006.11
Flacher kompakter Schwenkhebel mit Zylinder für Zunge. Ausführungen als „Push-to-latch“, d. h. bei Einlegen des Griffs in die Mulde verschließt eine federnd gelagerte Zunge den Griff automatisch.
| Download PDF | Product Data Sheet |
| Download PDF | Industrilas cut out versions |
| Download PDF | Recommended Tightening Torque |
| Cylinder | Zinc die cast, stainless steel 304 cap and dust shutter |
|---|---|
| Dish | Glass fibre reinforced polyamide (PA6GF30) |
| Handle | Zinc die cast, black texture powder coated |
| Pivot shaft | Zinc die cast, zinc plated |
| Cutout | Version B |
|---|---|
| Cylinder information | Lieferung erfolgt mit 3 Schlüsseln,Cylinder with other key codes on request |
| Classifications | IP66,NEMA 4 |
| Specifications | Standard cams with negative bending are not possible to use with this swing handle (negative bended cam will interfere with escutcheon plate). |
|---|
To download CAD-files, you need an Industrilas account. It only takes a minute.
Make your selections in each column to create your article number (AAAAAABCD-EEEE)
|
|
|
|
|
Öse = Federnd gelagerte Öse für Vorhangschloss.
