6-120a |

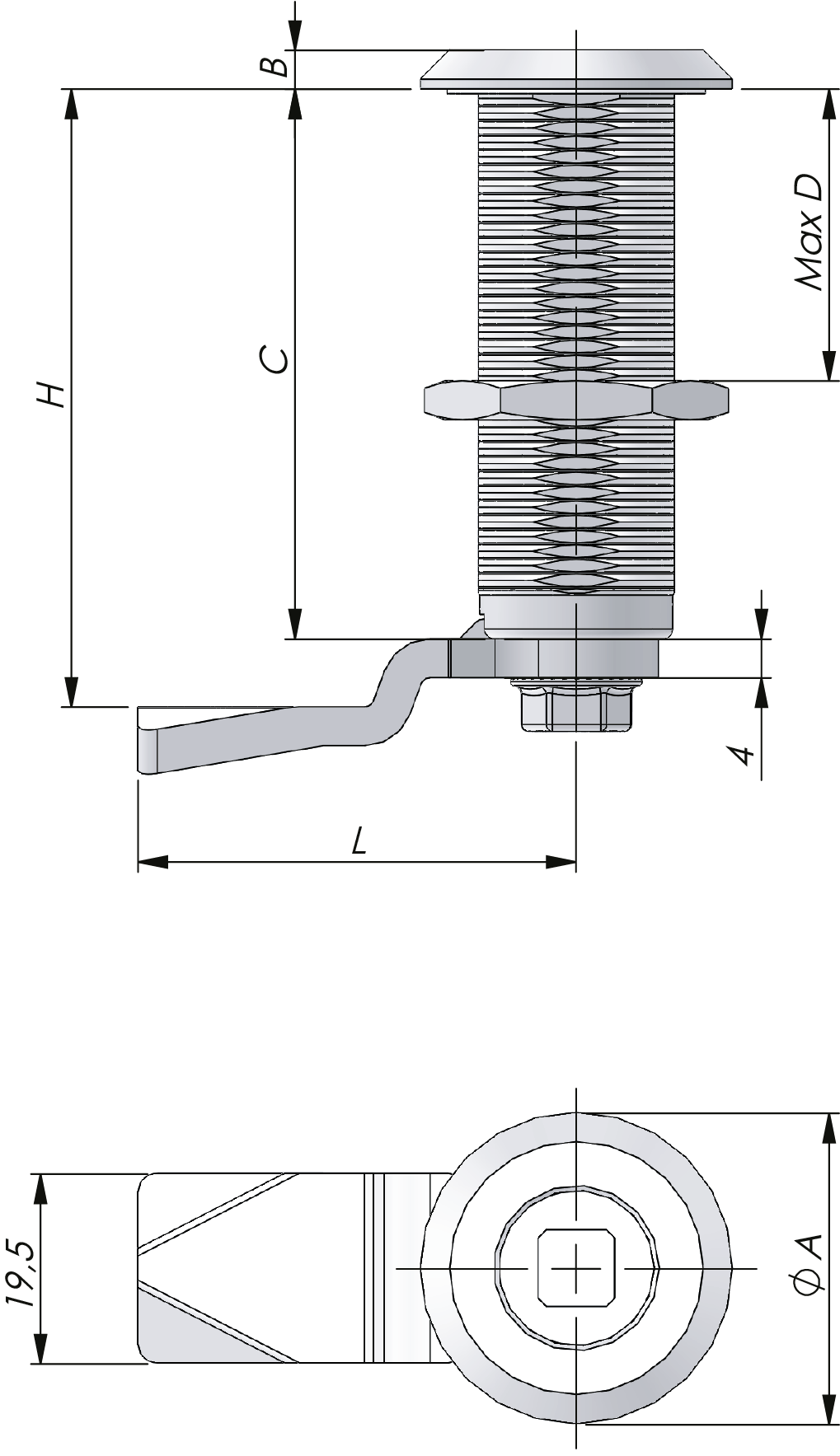

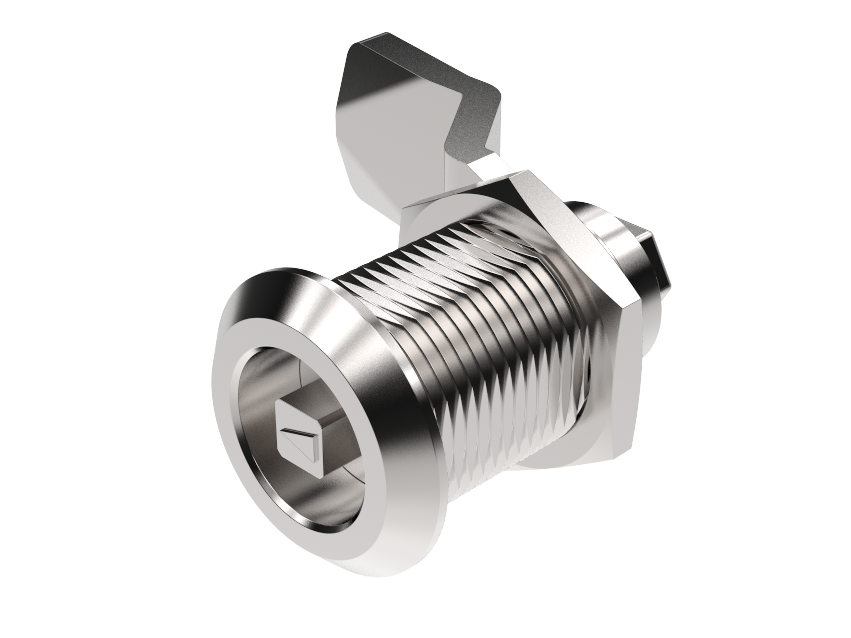

Drehriegelverschluss Classic aus Edelstahl 30 mm
Index Code:6-120
Schutzklasse IP65 durch O-Ring am Einsatz und aufgeschäumter PUR-Dichtung am Gehäuse.
Download PDF | Product Data Sheet |
Download PDF | Recommended Tightening Torque |
Cam | Stainless steel 304 or stainless steel 316 |
---|---|
Housing | Stainless steel 303 or stainless steel 316 |
Insert | Stainless steel 303 or stainless steel 316 |
Nut | Stainless steel 303 or stainless steel 316 |
Notes | Weitere Abmessungen oder Betätigungen auf Anfrage lieferbar. |
---|---|
Cutout | COMBI |
Classifications | IP65 |
To download CAD-files, you need an Industrilas account. It only takes a minute.
Make your selections in each column to create your article number (AAAA-BCCDEF-HHLL)
|
|
|
|
|
|
|
