2-115 |

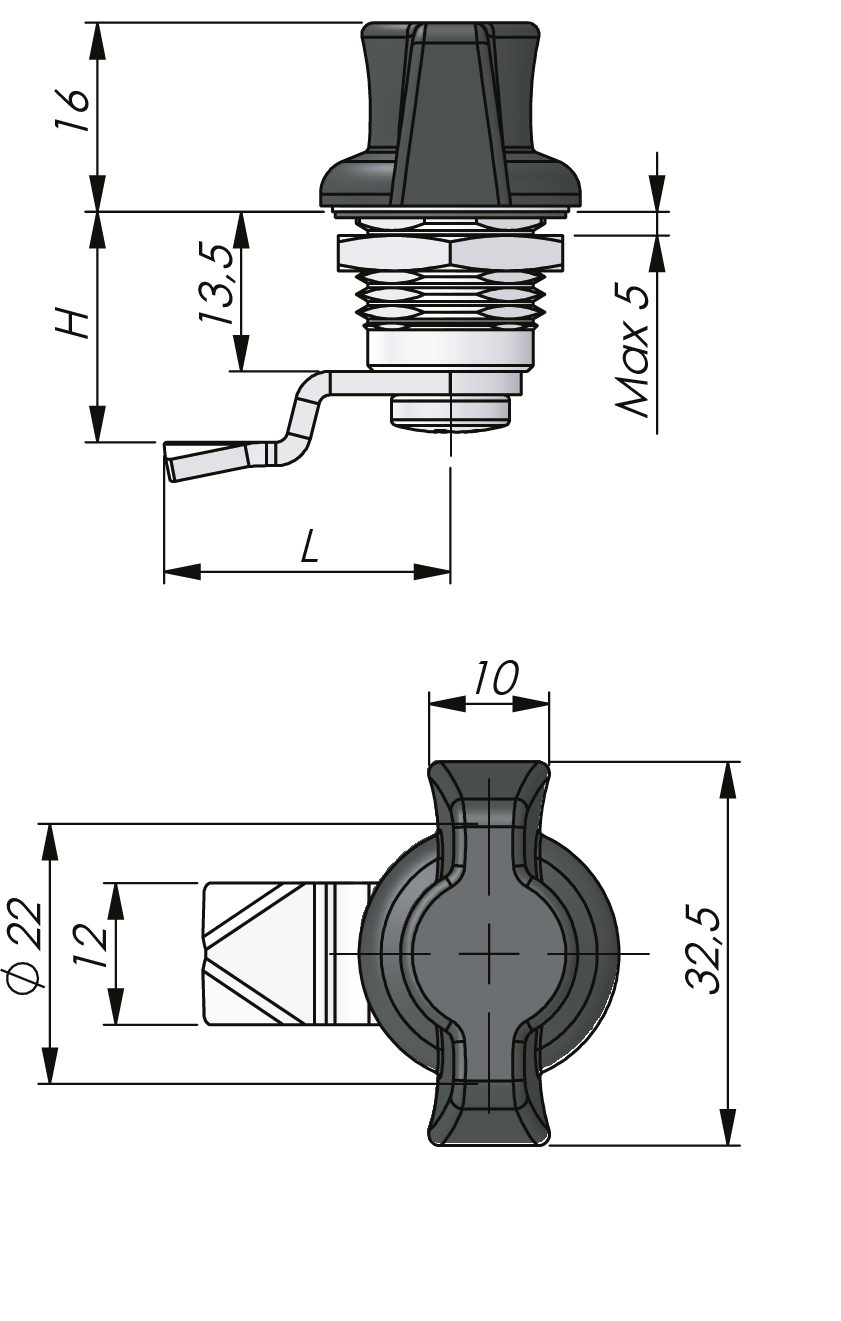

Fecho Lingueta Mini com Manopla 13,5 mm
Index Code:2-115
Fecho Lingueta Mini anti-vibração com manípulo e limitação de rotação interna. Abertura Universal para direita e esquerda quando aberto ou fechado. Fornecido com ou sem chave yale. Seu design ergonômico confere ao manípulo uma pega firme.
| Baixar pdf | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Download PDF | Industrilas cut out versions |
| Cam, screw and washer | Aço, zincado |
|---|---|
| Cylinder | Zinc die cast, stainless steel 304 cap and dust shutter |
| Wing knob | Zinc die cast, black texture powder coated |
| Porca | Brass, zinc plated |
| Footnotes | * Straight cam. |
|---|
| Key extraction | Open / Closed |
|---|---|
| Classifications | IP65 |
| Cutout | COMPACT |
| Cylinder information | Supplied with two keys |
| Earthing nut can be ordered separately, see related products." data-field-type="editor" data-typid="14" data-categoryname="">Notes | Earthing nut can be ordered separately, see related products. |
| (AAAAAA-AA)(Description) | (241576-00)(Non-locking),(241576-01)(Keyed alike 2233X) |
|---|---|
| (HHLL)(H/L in mm) | (0000)(No cam),(0724)(7,5/24),(0727)(7,5/27),(0730)(7,5/30),(0934)(9/34),(1027)(10,5/27),(1324)(13,5/24*),(1327)(13,5/27*),(1627)(16,5/27),(1834)(18/34),(1924)(19,5/24),(1927)(19,5/27),(2824)(28/24) |
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Criar conta
Make your selections in each column to create your article number (AAAAAA-AA-HHLL)
|
|
* Straight cam.
