Sistema Vision Compacto de fechos escamoteáveis com chave Yale
Index Code:1-006.01

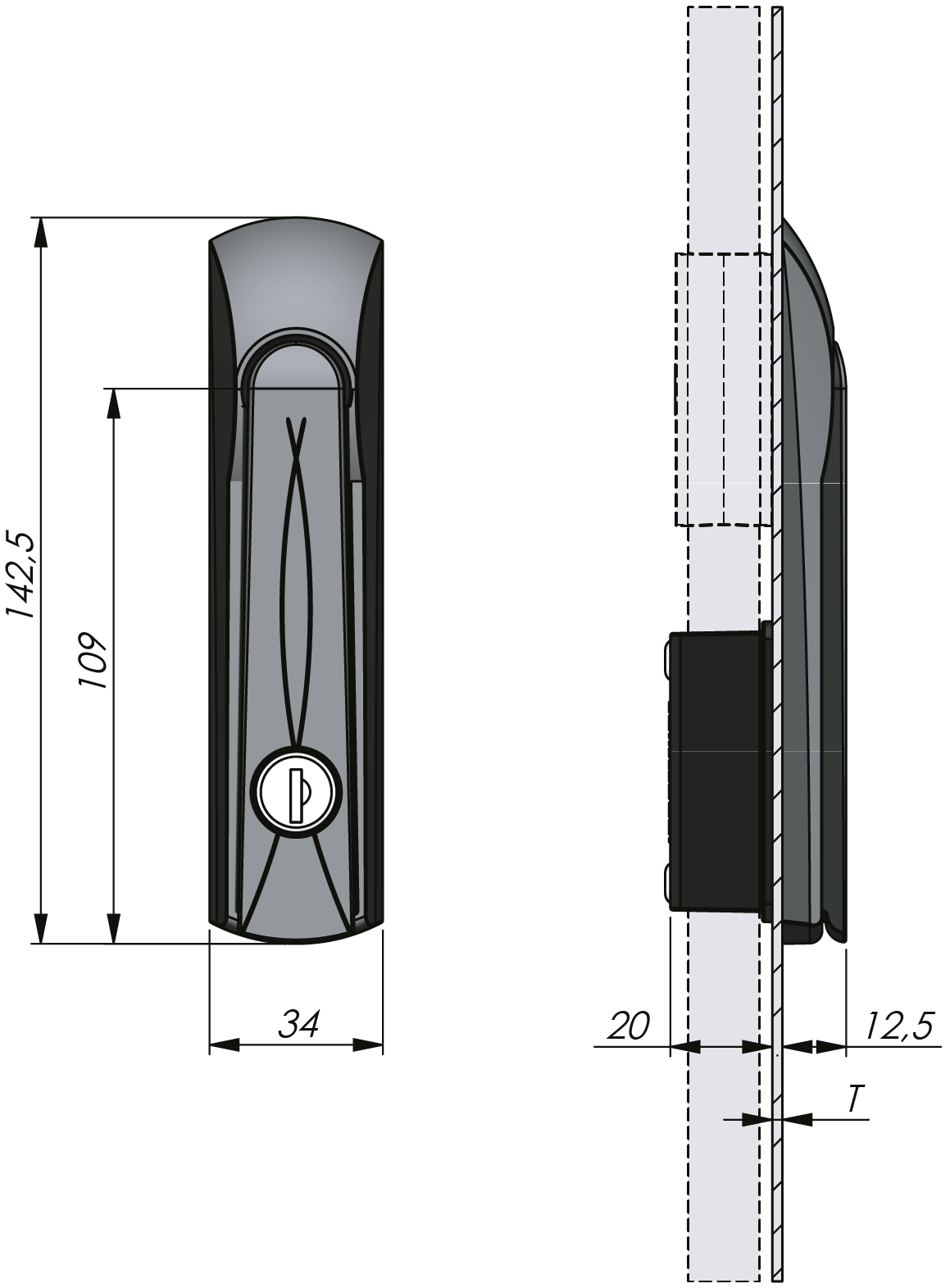

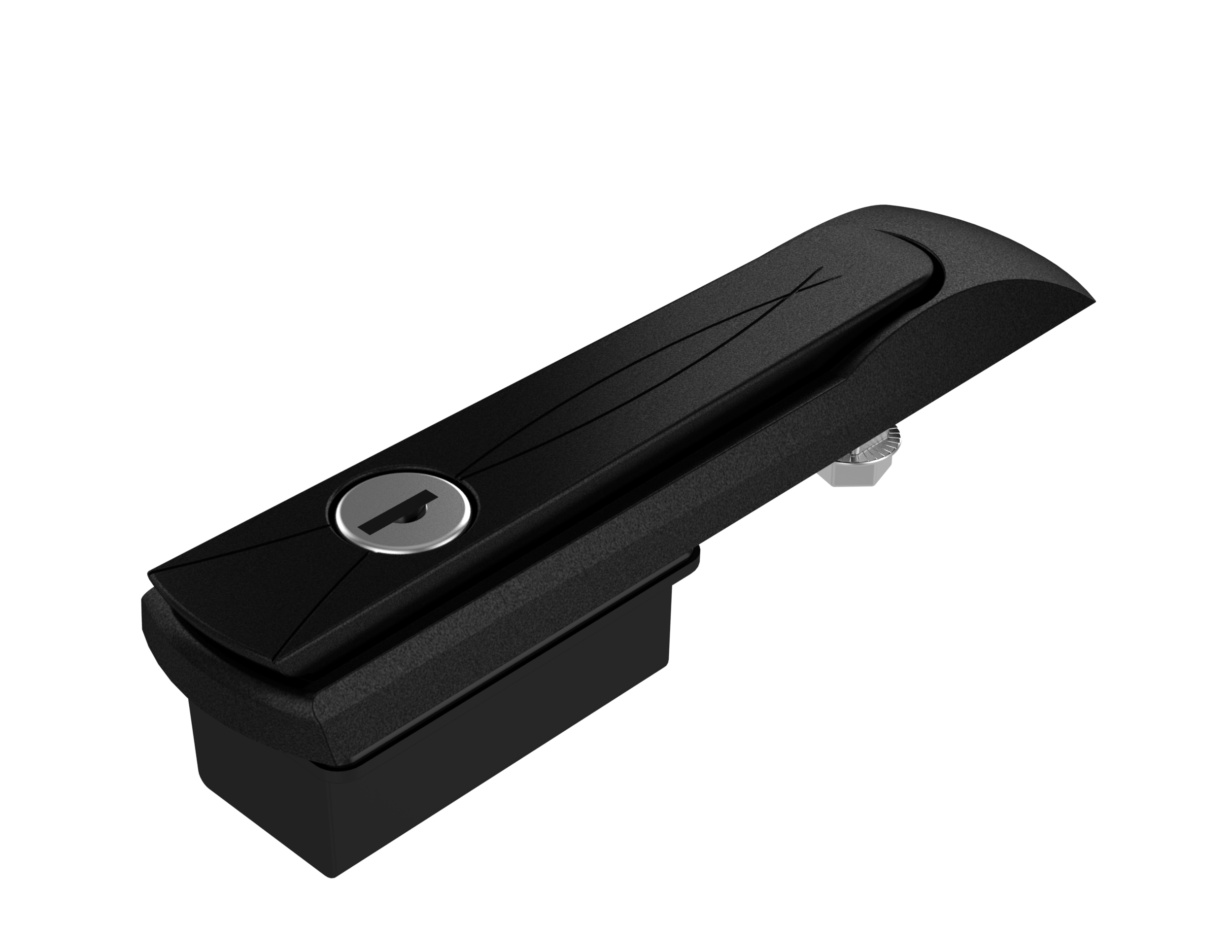

Fecho escamoteável compacto para acionar cremona com cilindro para chave yale. Fornecido com duas cópias de chave. Disponível na versão "push-to-latch", que trava o fecho automaticamente quando a maçaneta é pressionada para dentro do alojamento.

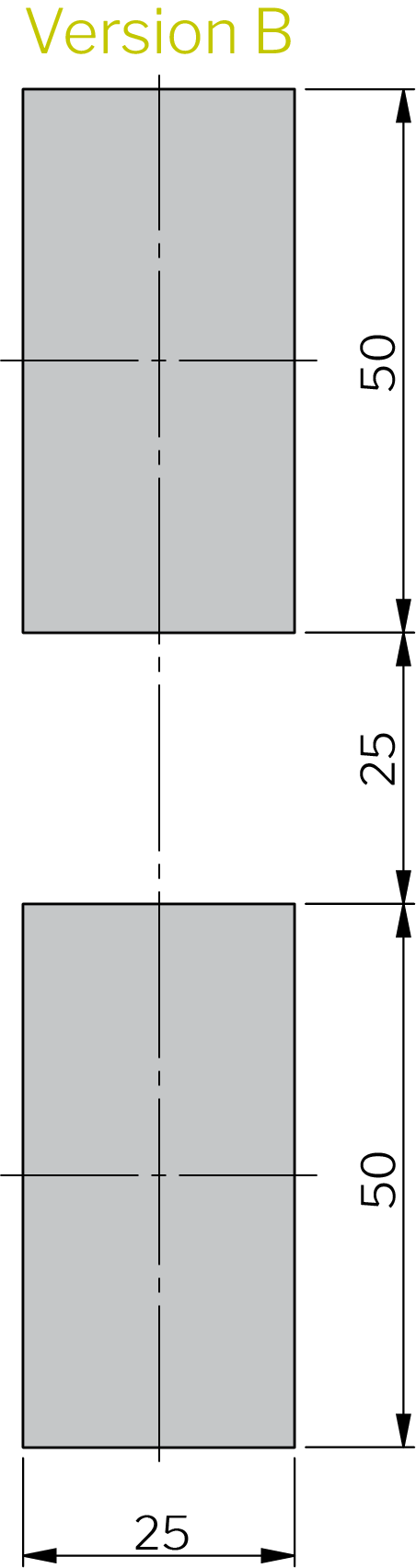

| Baixar pdf | Product Data Sheet |
| Download PDF | Industrilas cut out versions |
| Download PDF | Recommended Tightening Torque |
| Cylinder | Brass, nickel plated in matt finish |
|---|---|
| Dish | Glass fibre reinforced polyamide (PA6GF30) |
| Maçaneta | Zinc die cast, chrome plated or black texture powder coated |
| Pivot shaft | Aço inox 316 |
| Footnotes | PDL = Spring loaded padlock loop retracts when handle is released. |
|---|
| Cylinder information | Master key system on request,Supplied with two keys |
|---|---|
| Classifications | IP66,NEMA 4 |
| (AAAAAAA)(Material) | (1416118)(Handle zinc / Dish PA6) |
|---|---|
| (B)(Door thickness T) | (1)(0,8-1,5 mm),(2)(1,6-2,5 mm),(3)(2,6-3,5 mm) |
| (C)(PDL) | (0)(No) |
| (DDDD)(Cylinder) | (C21S)(Keyed alike IL101),(C22S)(Keyed to differ*),(C23S)(Keyed alike IL0333) |
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Criar conta
Make your selections in each column to create your article number (AAAAAAABC-DDDD)
|
|
|
|
PDL = Spring loaded padlock loop retracts when handle is released.
