RotationGeeignet für Profil-HalbzylinderGeeignet für RundzylinderBestlock CylinderCan be equipped with Scandinavian oval cylinderGeeignet für BetätigungOptional mit Öse für Vorhangschloss

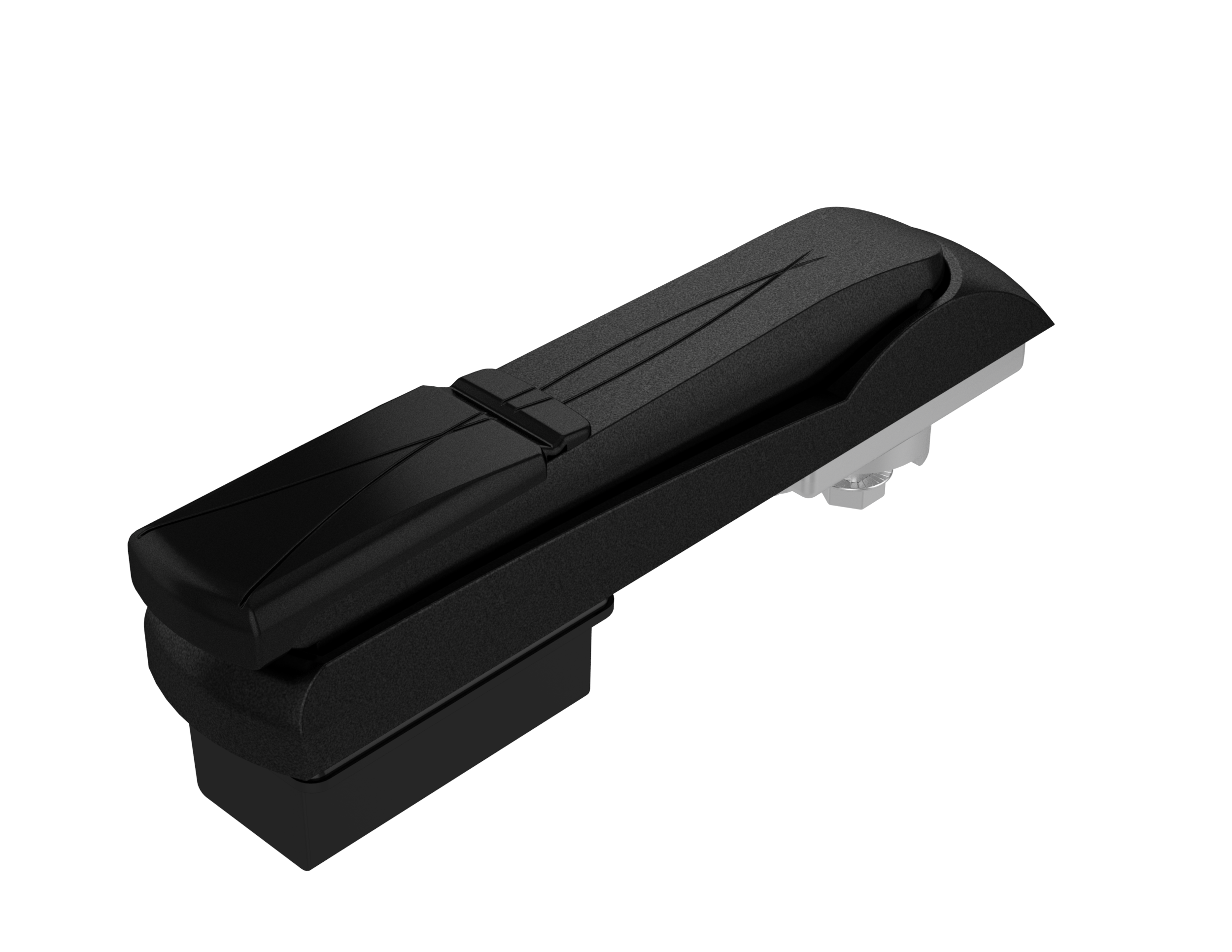

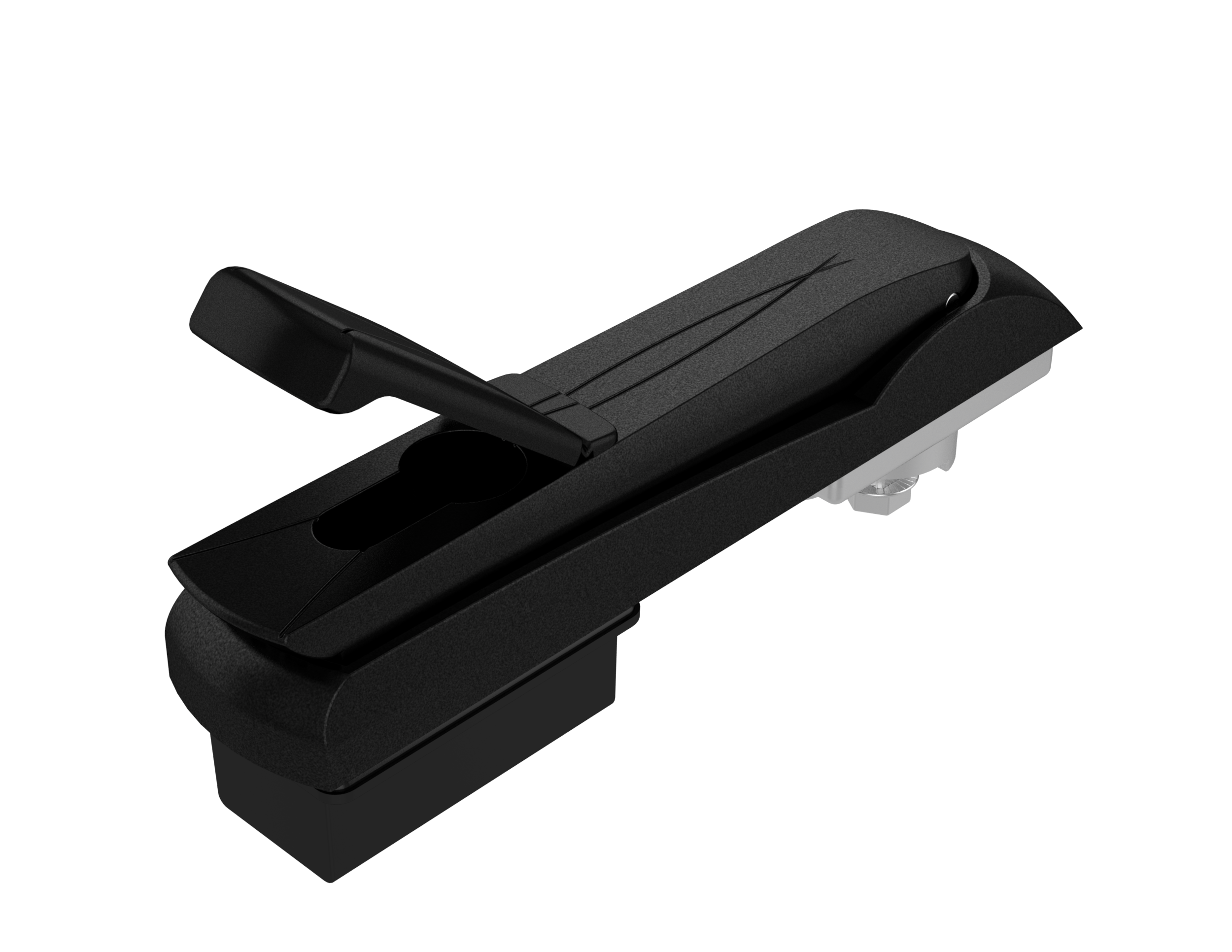

Vision Schwenkhebel Standard für 40 mm Profilzylinder

Index Code:
1-002.12

Flacher Schwenkhebel für 40 mm Zylinder und Zunge. Ausführung als „Turn-to-latch“, d. h. die Tür wird durch Drehung des Schlüssels verschlossen.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
Download PDF
Industrilas cut out versions
DishZinc die cast, black coated or fibre glass reinforced polyamide (PA6GF30)
Dust coverTPE
HandleZinc die cast, black coated or fibre glass reinforced polyamide (PA6GF30)
Pivot shaftZinc die cast, zinc plated
CutoutVersion C
Without dust cover: Handle height = 23 mm (X)
With dust cover: Handle height = 28 mm (X)" data-field-type="editor" data-typid="14" data-categoryname="">Notes
Without dust cover: Handle height = 23 mm (X)
With dust cover: Handle height = 28 mm (X)
ClassificationsIP66,NEMA 4
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account
Make your selections in each column to create your article number (AAAAAABCD-EEEE)
AAAAAA Description material
121611Handle zinc / Dish PA6
121641Handle zinc / Dish zinc
125011Handle PA6 / Dish PA6
B Opening rotation
190° clockwise or counter-clockwise
290° counter clockwise
390° clockwise
C Door thickness T
10,8 - 1,5 mm
21,6 - 2,5 mm
32,6 - 3,5 mm
D PDL
0No
EEEE Dust cover
C60DYes
C60UNo

Öse = Federnd gelagerte Öse für Vorhangschloss.
