Vision Schwenkhebel Standard für 45 mm Bestlock-Zylinder
Index Code:1-002.08

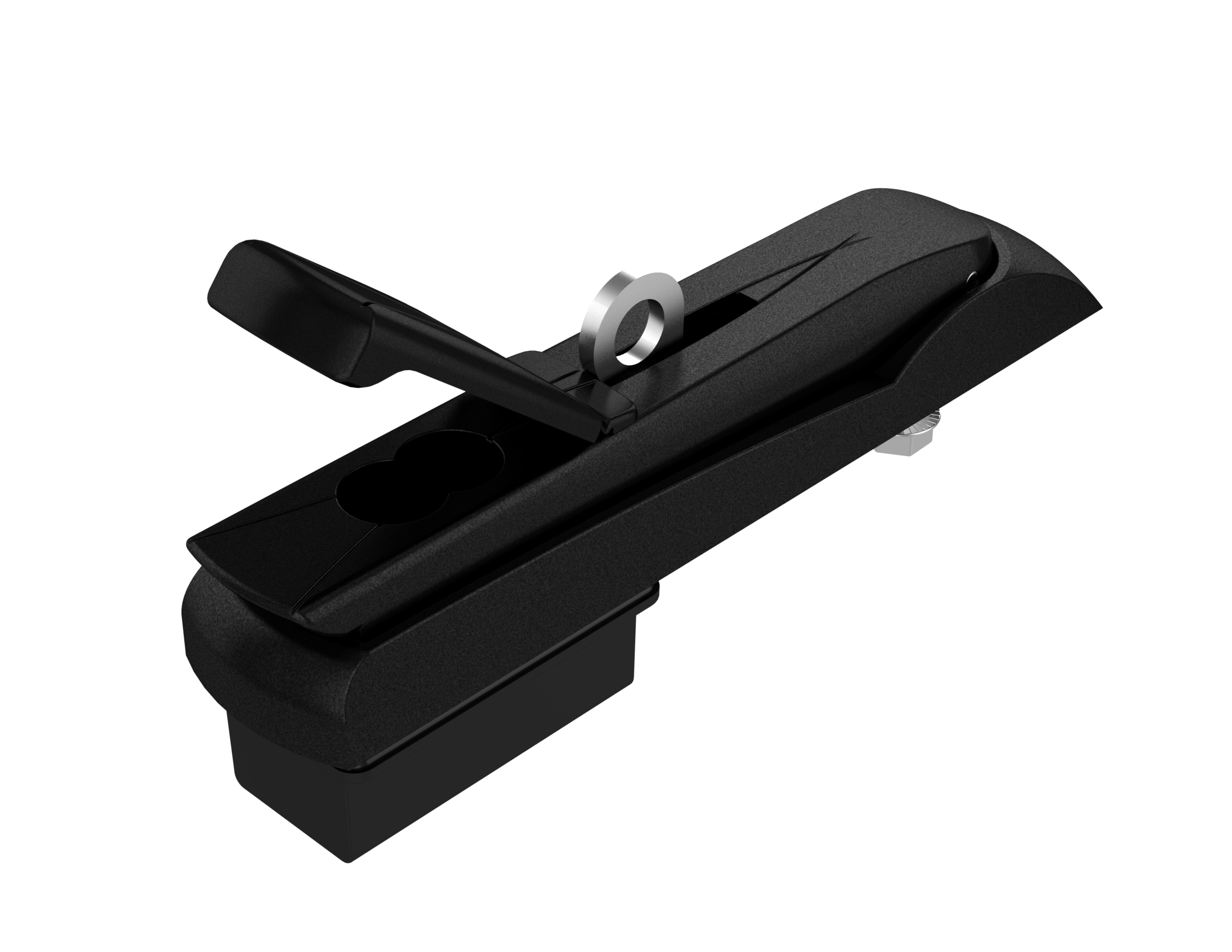

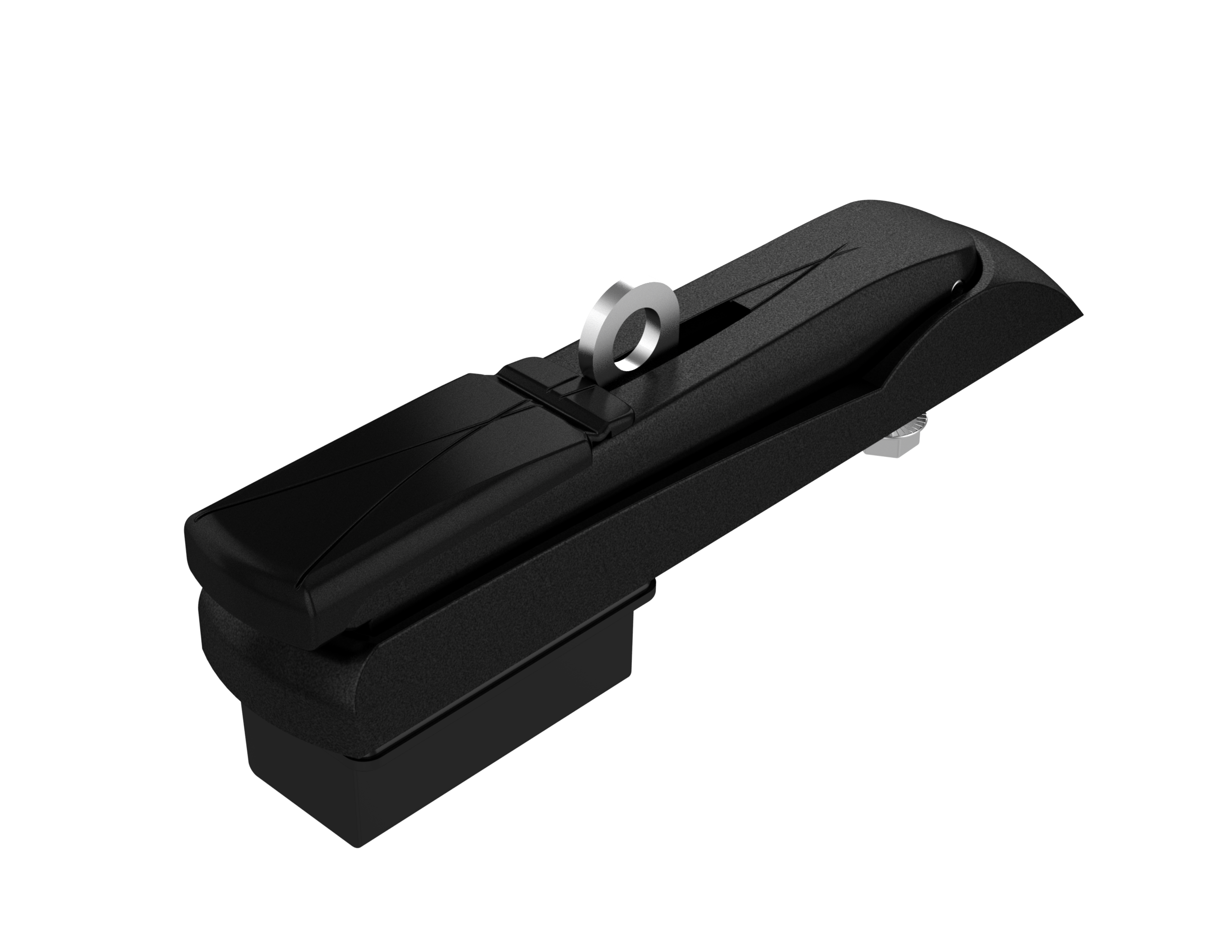

Flacher Schwenkhebel für 45 mm Best-Zylinder und Stangenschloss. Ausführung als „Turn-to-latch“, d. h. die Tür wird durch Drehung des Schlüssels verschlossen.
| Download PDF | Product Data Sheet |
| Download PDF | Industrilas cut out versions |
| Download PDF | Recommended Tightening Torque |
| Dish | Zinc die cast, black coated or fibre glass reinforced polyamide (PA6GF30) |
|---|---|
| Handle | Zinc die cast, black coated or fibre glass reinforced polyamide (PA6GF30) |
| Padlock loop | Stainless steel 304 |
| Pivot shaft | Zinc die cast, zinc plated |
| Cutout | Version C |
|---|---|
| Notes | Without dust cover: Handle height = 23 mm (X) |
| Classifications | IP66,NEMA 4 |
To download CAD-files, you need an Industrilas account. It only takes a minute.
Make your selections in each column to create your article number (AAAAAAABC-DDDD)
|
|
|
|
Öse = Federnd gelagerte Öse für Vorhangschloss.
