Sistema Vision de fechos escamoteáveis com tambor Bestlock
Index Code:1-002.08

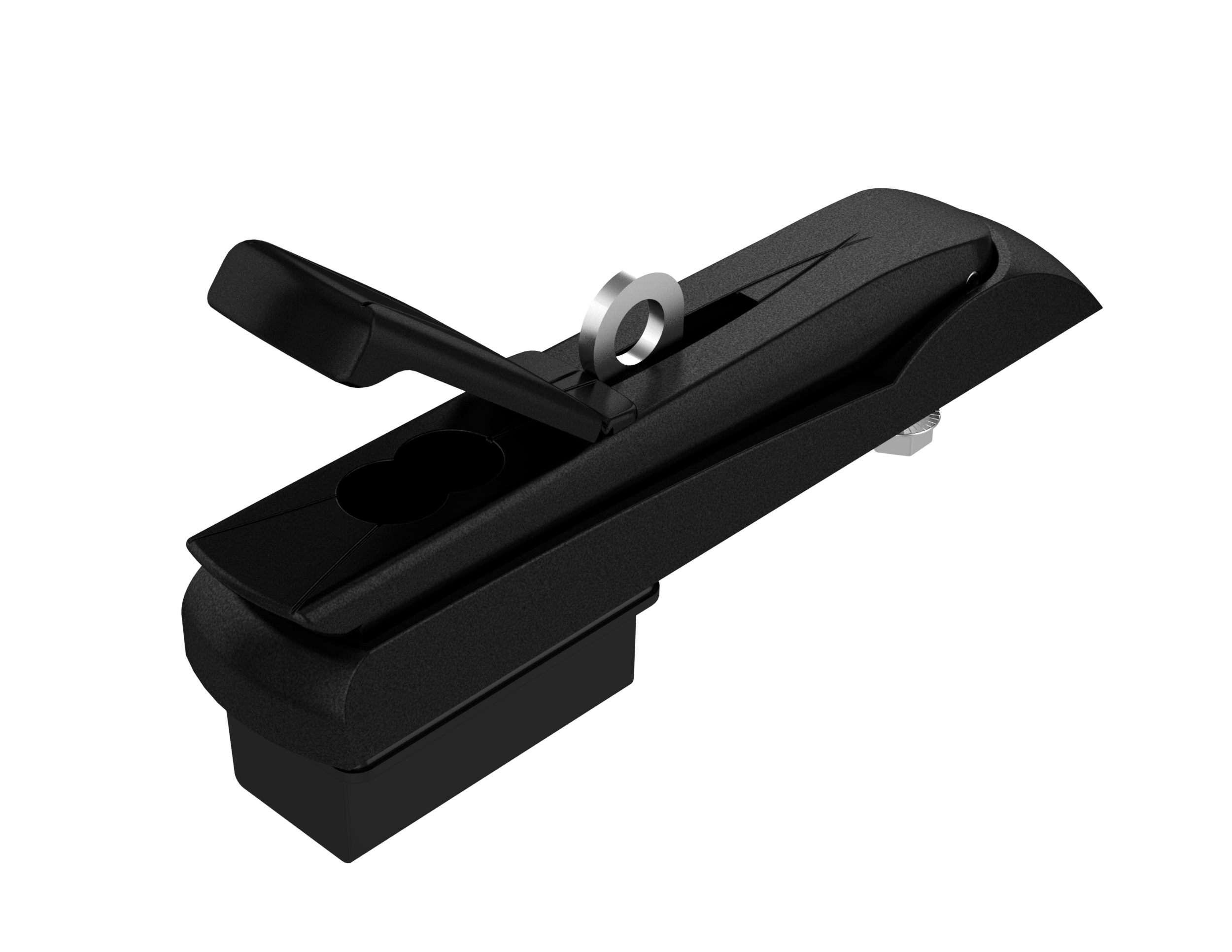

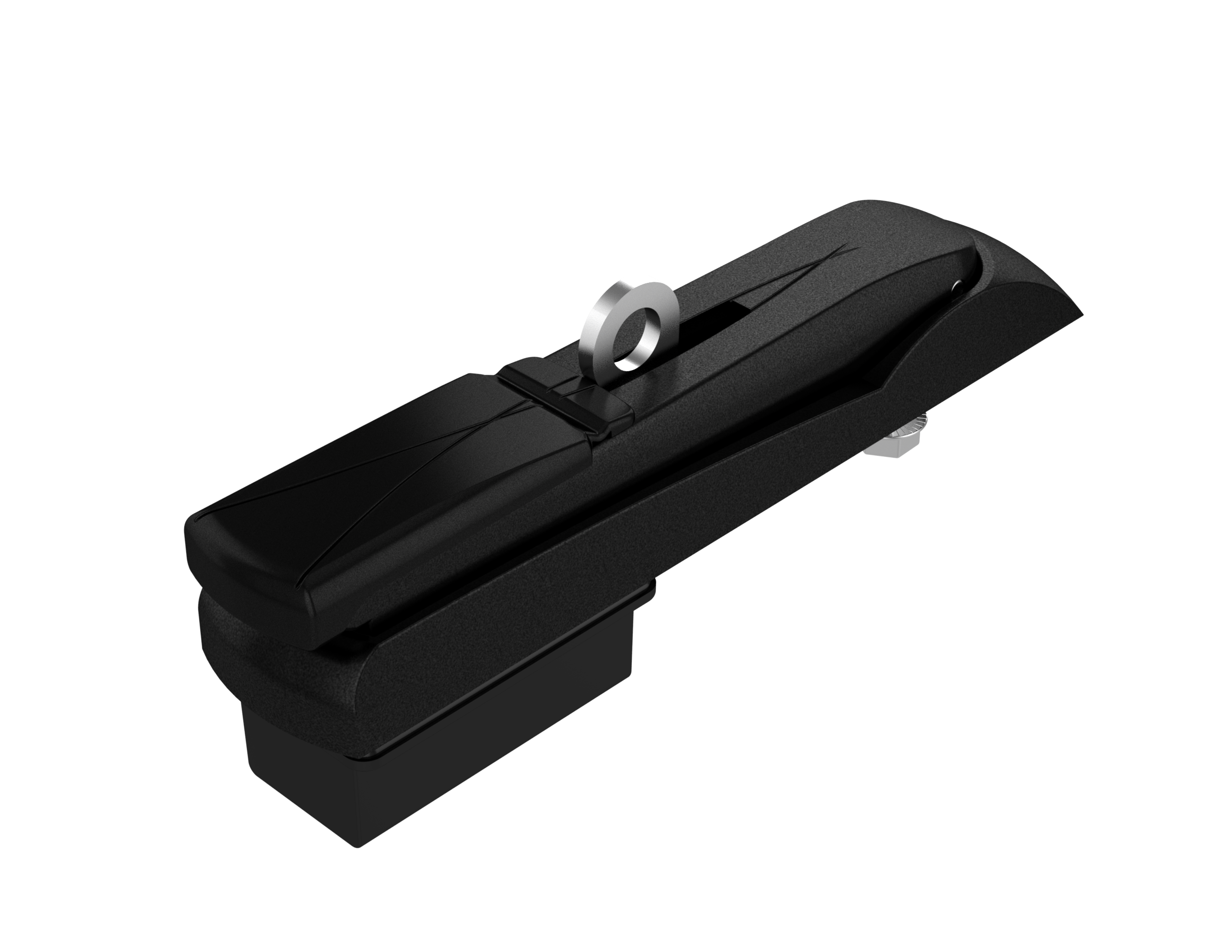

Fecho escamoteável para acionar cremona com Tambor Best Lock. Disponível na versão "turn-to-latch", que trava o fecho girando-se a chave.
| Baixar pdf | Product Data Sheet |
| Download PDF | Industrilas cut out versions |
| Download PDF | Recommended Tightening Torque |
| Dish | Zinc die cast, black coated or fibre glass reinforced polyamide (PA6GF30) |
|---|---|
| Maçaneta | Zinc die cast, black coated or fibre glass reinforced polyamide (PA6GF30) |
| Padlock loop | Aço inox 304 |
| Pivot shaft | Zamak, zincado |
| Footnotes | PDL = Spring loaded padlock loop retracts when handle is released. |
|---|
| Cutout | Version C |
|---|---|
| Notes | Without dust cover: Handle height = 23 mm (X) |
| Classifications | IP66,NEMA 4 |
| (AAAAAAA)(Material) | (1216118)(Handle zinc / Dish PA6),(1216418)(Handle zinc / Dish zinc) |
|---|---|
| (B)(Door thickness T) | (1)(0,8-1,5 mm),(2)(1,6-2,5 mm),(3)(2,6-3,5 mm) |
| (C)(PDL) | (1)(Yes) |
| (DDDD)(Dust Cover) | (C70U)(No),(C70D)(Yes) |
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Criar conta
Make your selections in each column to create your article number (AAAAAAABC-DDDD)
|
|
|
|
PDL = Spring loaded padlock loop retracts when handle is released.
