Klima-flex Extended Adjustable 3D-Hinge 180°
Index Code:3-164

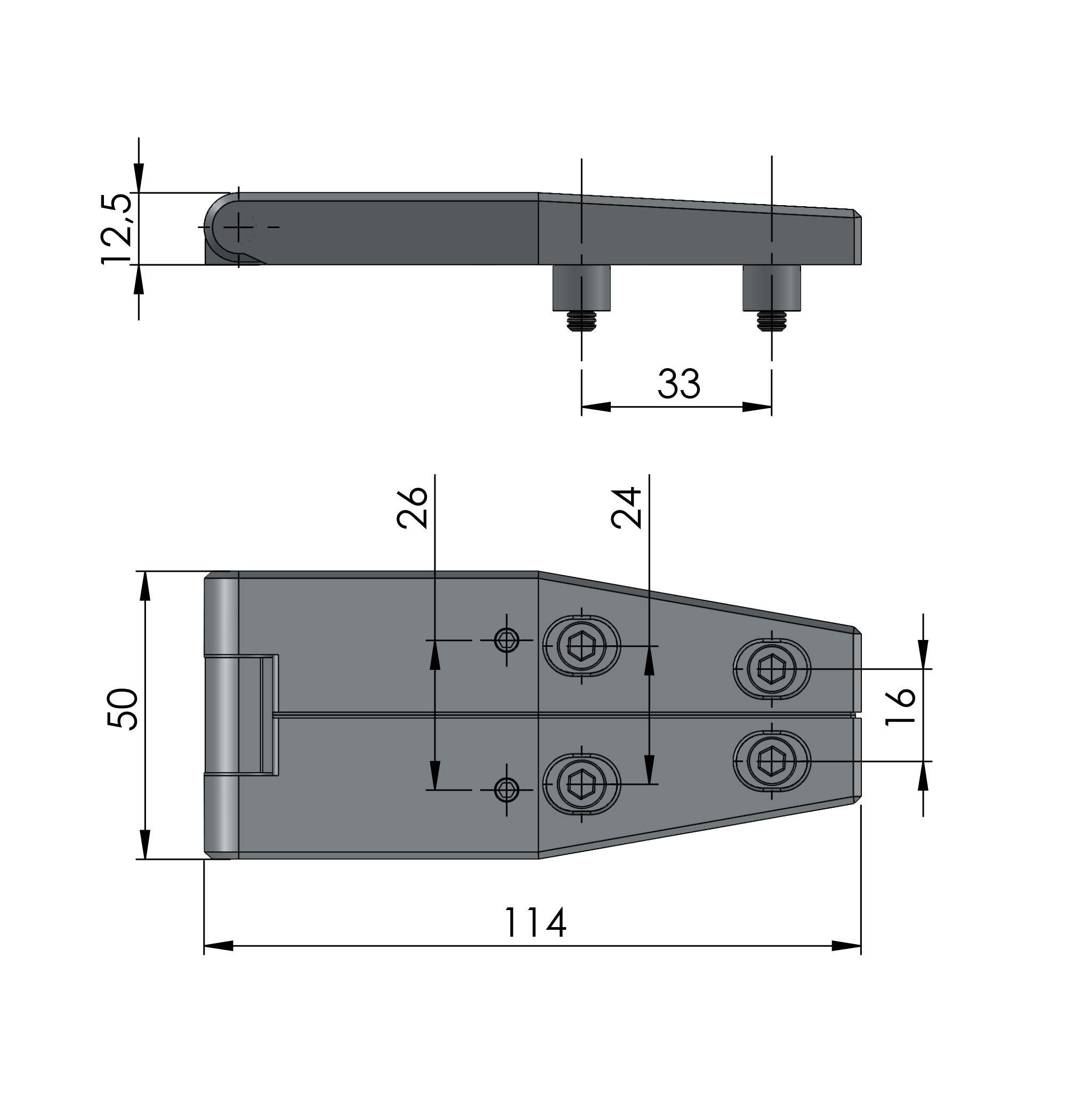

Surface mounted hinge, especially designed for insulated doors. The hinge comes with a mounting plate for thin door skins. Lift-off feature when lower hinge part is removed. Adjustable in the X-, Y- and Z-axis by 3 mm.
This version has an extended door part compared to 321151-3D and 321651-3D (3-163).
| Télécharger le pdf | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Door part | Zinc die cast, zinc plated or black texture powder coated |
|---|---|
| Frame part | Zinc die cast, zinc plated or black texture powder coated |
| Mounting plate | Zinc moulé sous pression, zingué |
| Pin | Acier, galvanisé |
| Vis | Acier, galvanisé |
| Washer | Brass, nickel plated |
