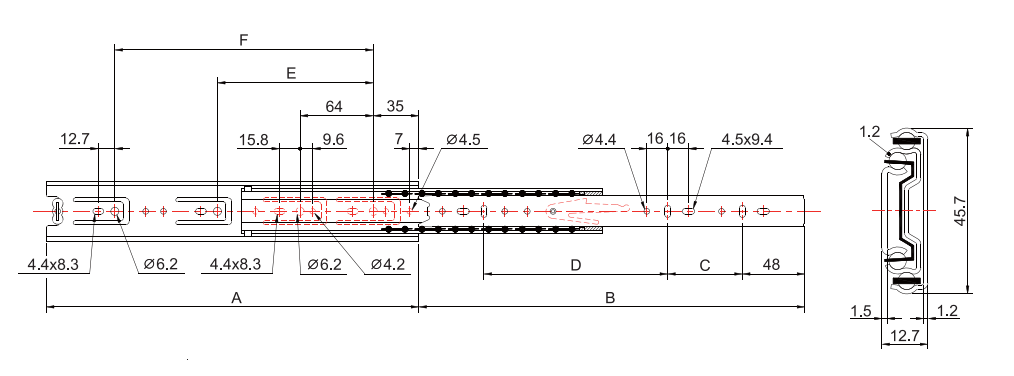

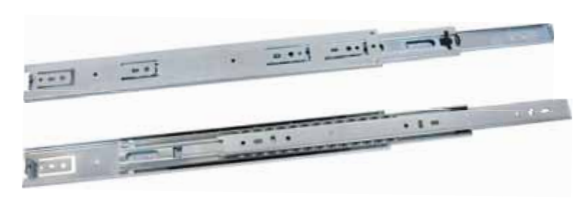

Drawer slide 3-part 45 mm Stainless steel

Index Code:
5-603-02

Full extension ball bearing drawer slides 45 mm with 45 kg load capacity*. The material thickness 1,2mm offers a robust drawer slide with great load capacity for its size. 3-part drawer slide with full extension, i.e. the extended part is 100% of the compressed length of the drawer slide.

Upon request we offer features such as soft closing, self-closing, push-to-open, locking and different mounting options such as studs, customized holes, L-brackets and bayonets for easy assembly.

Drawer slides are sold in pairs (one pair=two pieces). These drawer slides are sold in 10 pairs/box (MOQ=10 pairs). Samples can be shipped as one pair.

*Load capacity is defined in Technical Specifications.

Download PDF
Product Data Sheet
Drawer slideStainless steel 304
Ball bearingsHardened steel
Specifications

The maximum load capacity is defined as evenly distributed weight on a pair of drawer slides with a length of 450mm. Longer and shorter drawer slides have slightly reduced load capacity compared to the length 450mm.

Choose CAD format here:

To download CAD-Files for this product
1. Select CAD-format
2. Click the green cube icon to generate CAD-Files
3. Wait until the download symbol is completed
4. Click the download symbol to download

Download here:
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account
