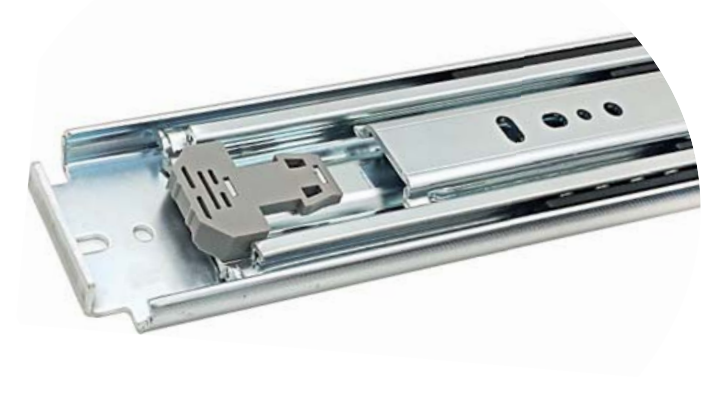

Drawer slide 3-part 76 mm
Index Code:Full extension ball bearing drawer slides 76 mm with 300 kg load capacity*. This robust drawer slide offers a great load capacity for its size. 3-part drawer slide with full extension, i.e. the extended part is 100% of the compressed length of the drawer slide.
These 76 mm drawer slides are offered upon request.
Upon request we offer features such as locking and different mounting options such as studs, customized holes and L-brackets for easy assembly.
Drawer slides are sold in pairs (one pair=two pieces).
*Load capacity is defined in Technical Specifications.
| Drawer slide | Cold rolled steel, zinc plated |
|---|---|
| Ball bearings | Hardened steel |
| Download PDF | Product Data Sheet |
| Specifications | The maximum load capacity is defined as evenly distributed weight on a pair of drawer slides. Longer and shorter drawer slides have slightly reduced load capacity. |
|---|
| Download PDF | L76131 Data sheet.pdf |
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
