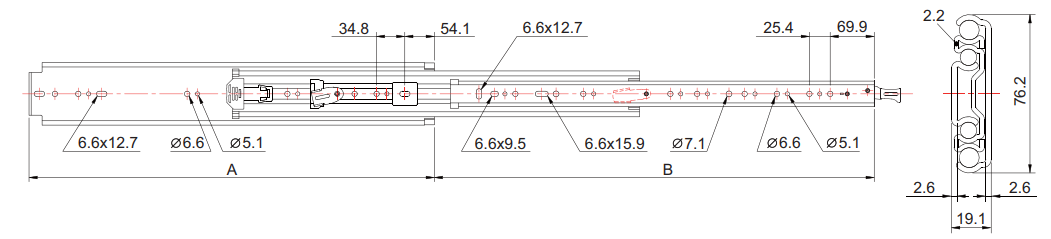

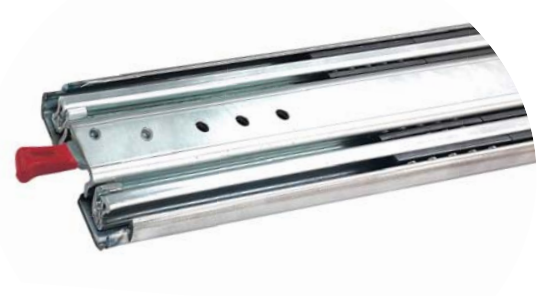

Drawer slide 3-part lock-in / lock-out 76 mm
Index Code:Full extension ball bearing drawer slides 76 mm with 300 kg load capacity*. This robust drawer slide offers a great load capacity for its size. 3-part drawer slide with full extension, i.e. the extended part is 100% of the compressed length of the drawer slide.
These 76 mm drawer slides are offered upon request.
Upon request we offer different mounting options such as studs, customized holes and L-brackets for easy assembly.
Drawer slides are sold in pairs (one pair=two pieces). Please note these pairs contain one left and one right drawer slide.
*Load capacity is defined in Technical Specifications.
| Ball bearings | Hardened steel |
|---|---|
| Drawer slide | Cold rolled steel, zinc plated |
| Download PDF | Product Data Sheet |
| Specifications | The maximum load capacity is defined as evenly distributed weight on a pair of drawer slides. Longer and shorter drawer slides have slightly reduced load capacity. |
|---|
| Download PDF | L76131 Data sheet.pdf |
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
