Handle rotation 90° in both directions

Finger Pulls and Dust Covers

Index Code:
2-590

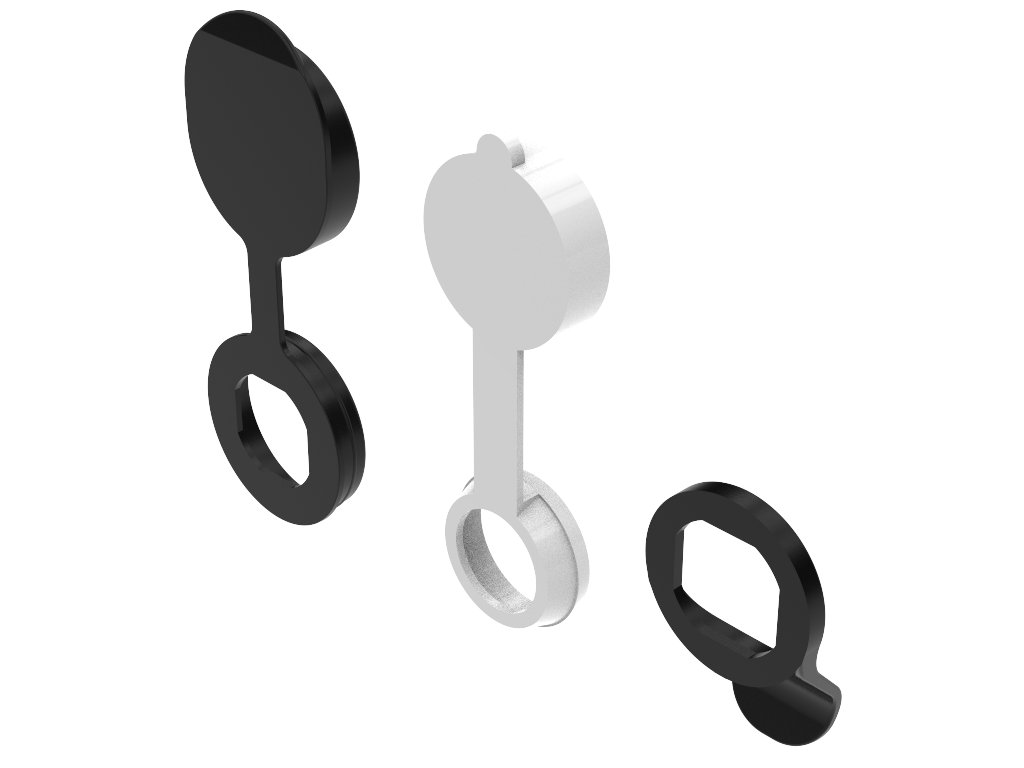

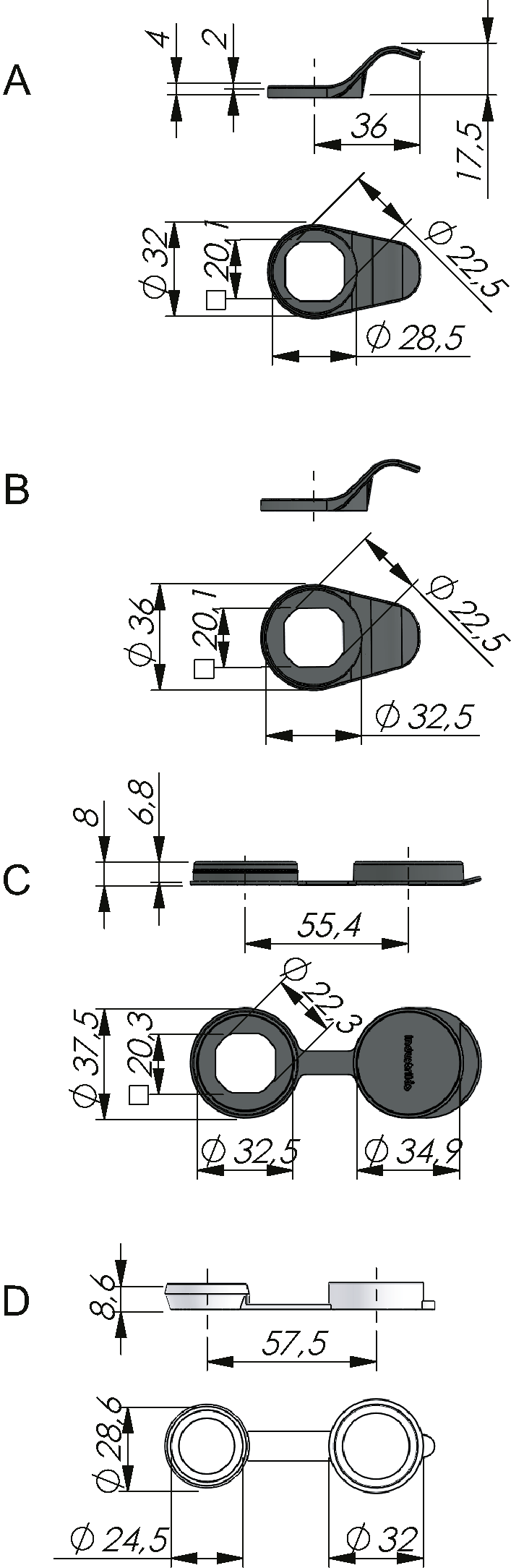

Finger pull (black) and protective dust cover (black) for standard quarter-turn latches with a collar diameter of 28 or 32 mm (see table).

The white protective dust covers for quarter-turn latches using a modified circular cut-out of 16 x 19 mm. These latches are found on Index Code 2-620 and 2-655.

Download PDF
Product Data Sheet
Dust cover, blackTPE
Dust cover, whitePolyethene
Finger pullGlass fibre reinforced polyamide (PA6GF30)
Notes Add 2 mm to the H-dimension to compensate for plate thickness. If a IP65-product is used with finger pull or dust cover, you need to order a separate flat gasket 297006 to maintain IP65. (See table).
