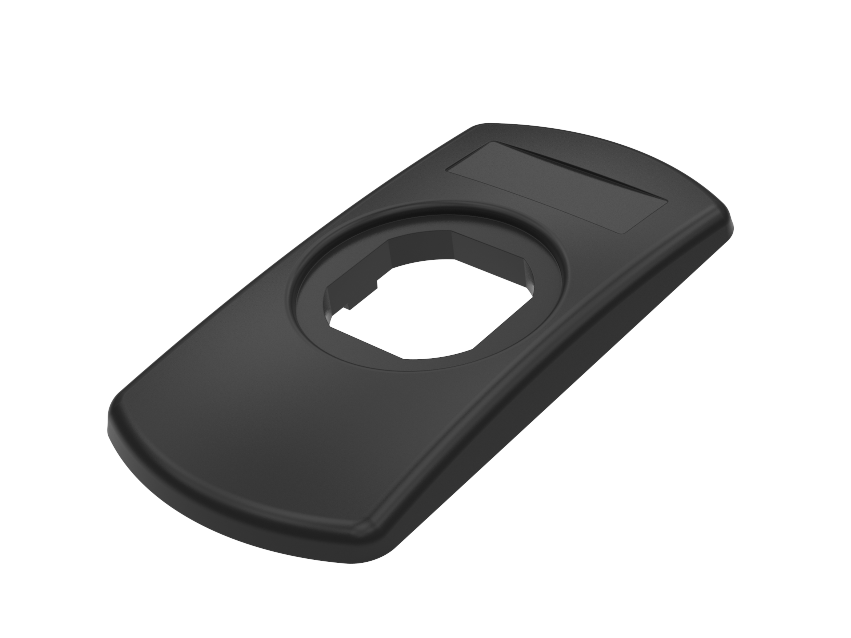

Logo Plate
Index Code:2-585
Logo plate for all latches and handles with cut-out combi. On request, the plate can be supplied in any colour and with your company logotype.
| Download PDF | Product Data Sheet |
| Plate | Glass fibre reinforced polyamide (PA6GF30) |
|---|

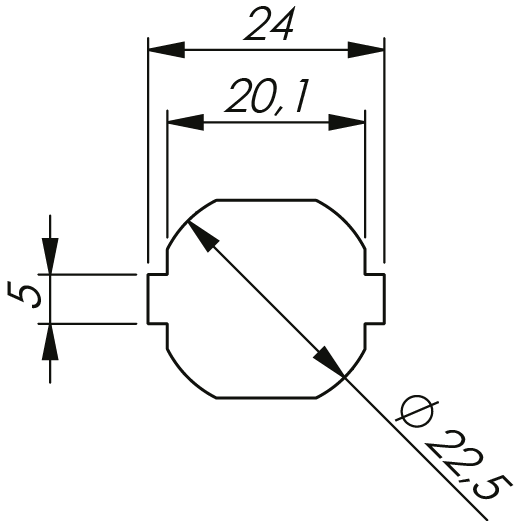

| Notes | Special cut-out (see drawing) and add 4 mm to the H-dimension of the cam, to compensate for plate thickness. If a IP65 product is used with the logo plate, you need to order a separate flat gasket 297006 to maintain IP65. |
|---|
