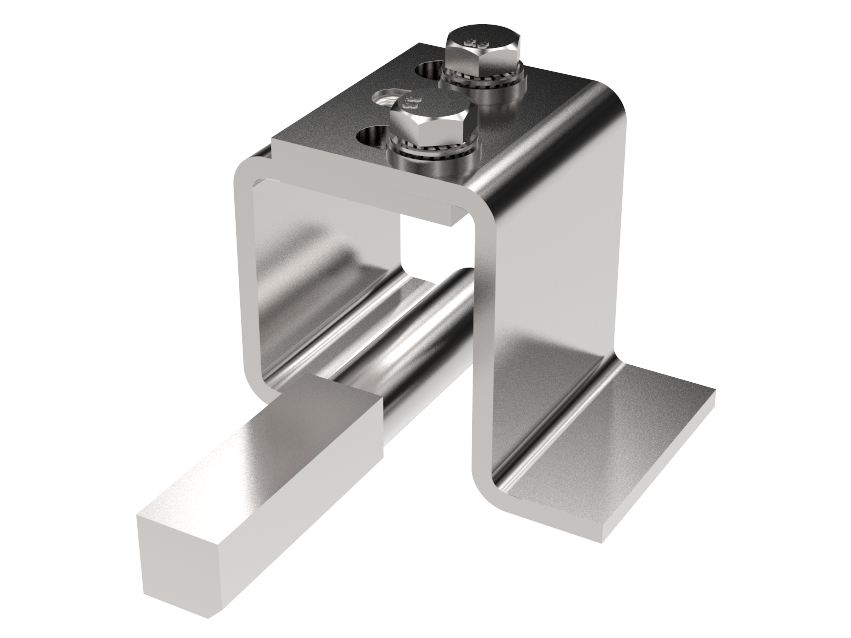

Concealed Adjustable Lift Off Hinge 100°
Index Code:3-030
Adjustable concealed hinge for weld-on mounting with universal left and right mounting. The door part is adjustable 10 mm horizontally. Frame part shaped as a square pin.
| Download PDF | Product Data Sheet |
| Door part, rolled | Steel, zinc plated |
|---|---|
| Door part, Z-shaped | Steel, unplated (for welding) |
| Frame part | Steel, unplated (for welding) |
| Nut | Steel, zinc plated |
| Pin | Steel, unplated (for welding) |
| Screw | Steel, zinc plated |
