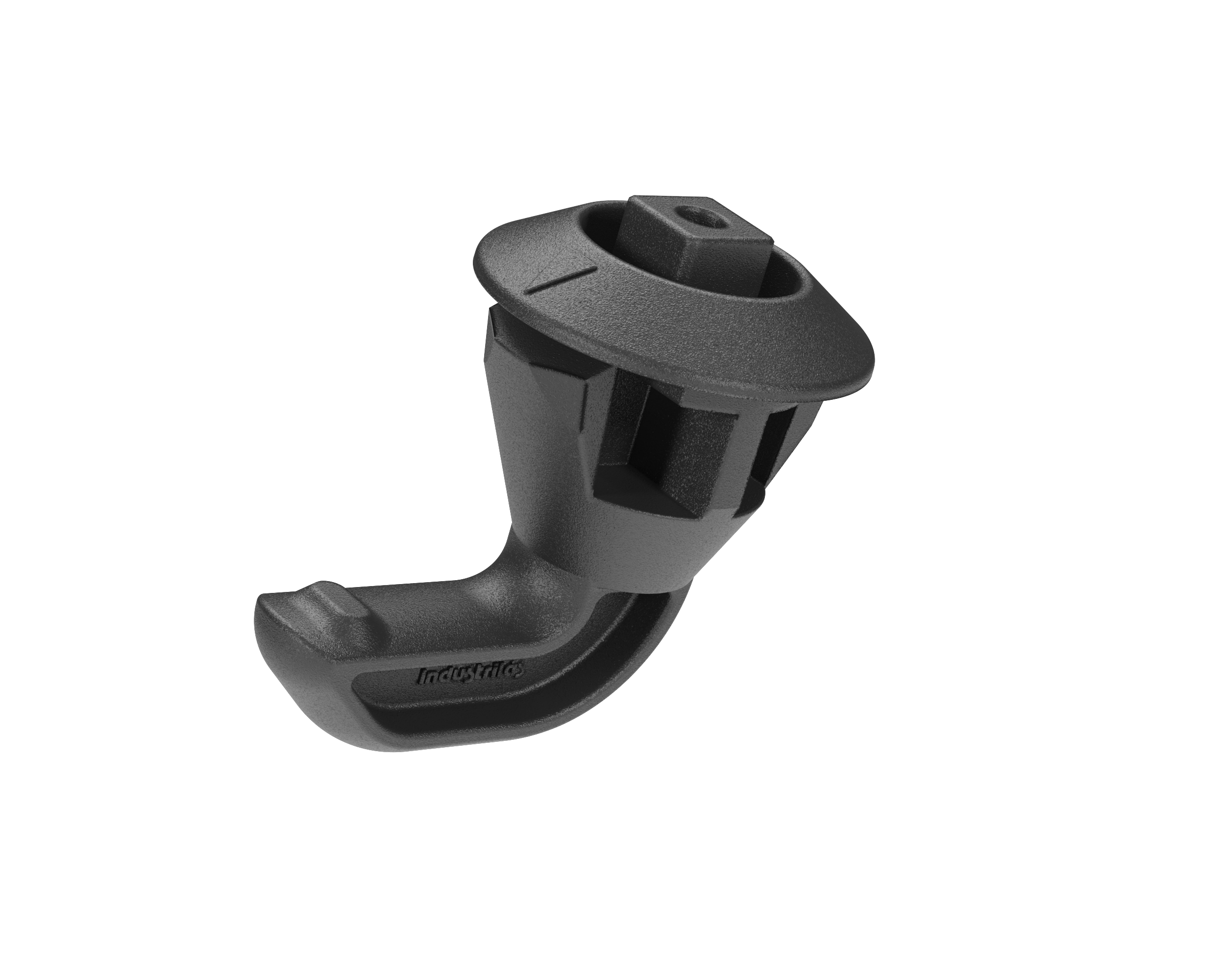

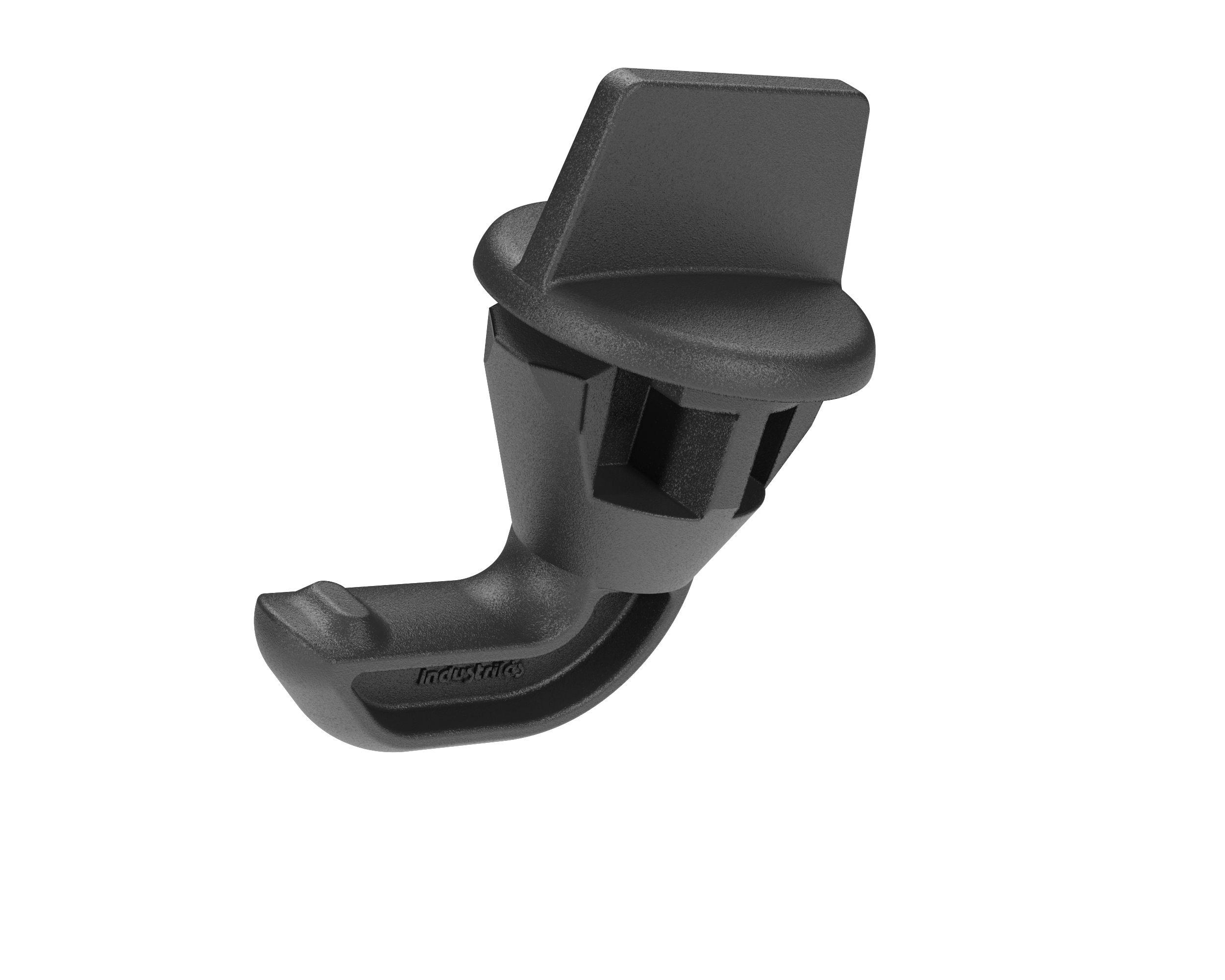

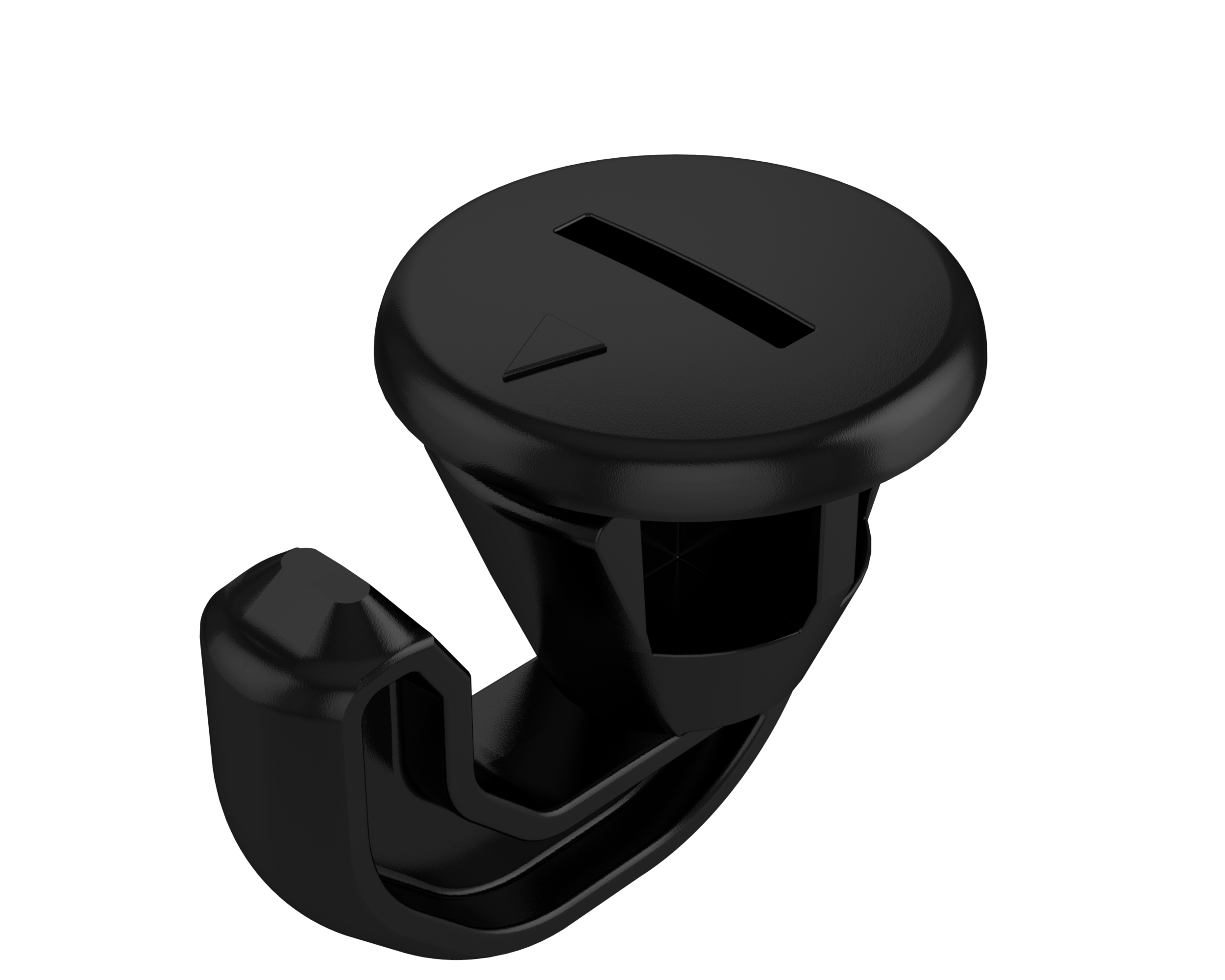

Handle rotation 90° in both directions

Quick Assembly one piece latch

Index Code:
2-100

One-piece quarter-turn latch with four available grip ranges (H) between 2 and 26 mm. Easy snap mounting suited for metal thickness of 0,6-1,5 mm. When using the shown cut out, a 90º turn stop is created, and when using a complete round cut out, the latch can turn 360º.

Download PDF
Product Data Sheet
LatchPolyamide (PA6)
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account
A product number is created by combining the figures in each column (AAAA-BBCCDE-HHLL)
AAAA Type
2460One-piece latch
BB Insert / Knob
05Square 8
15Triangle 8
26Slotted
77Integrated knob
CC Material / Color
56PA6 / Black
D Metal thickness door
10,6 mm - 1,5 mm
E Type
0Standard
HHLL H= L=
0228228.5
11281128.5
17281728.5
21282128.5
26282628.5
