Handle rotation 90° in both directions

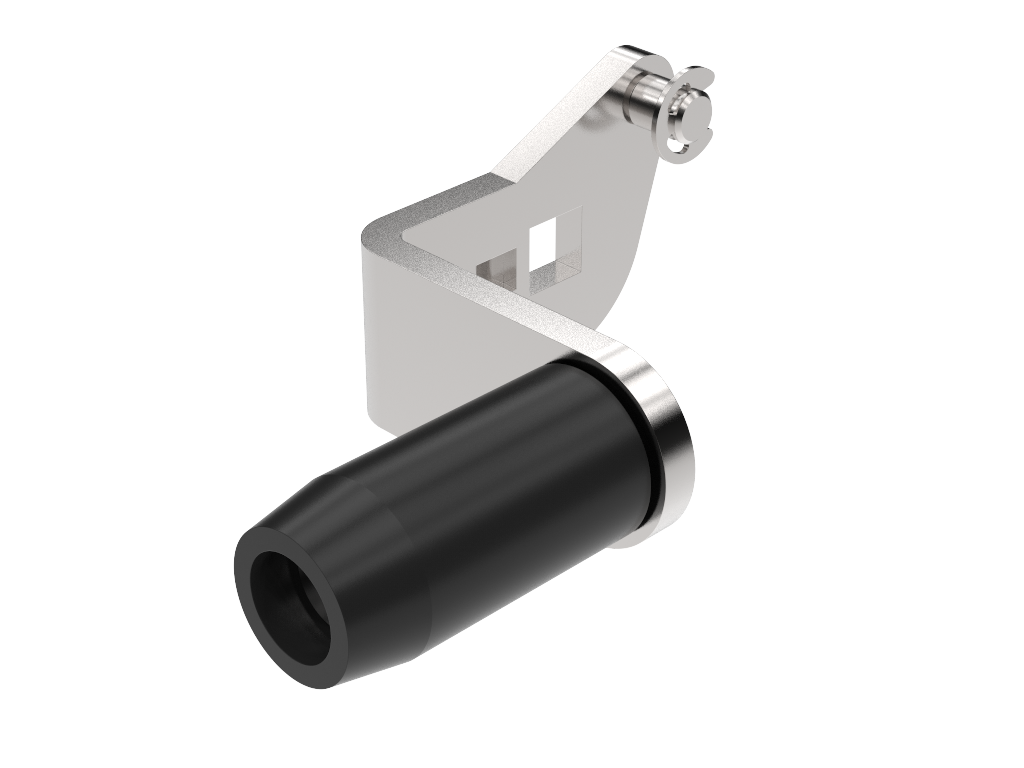

Three-Point Roller Cams

Index Code:
2-500b

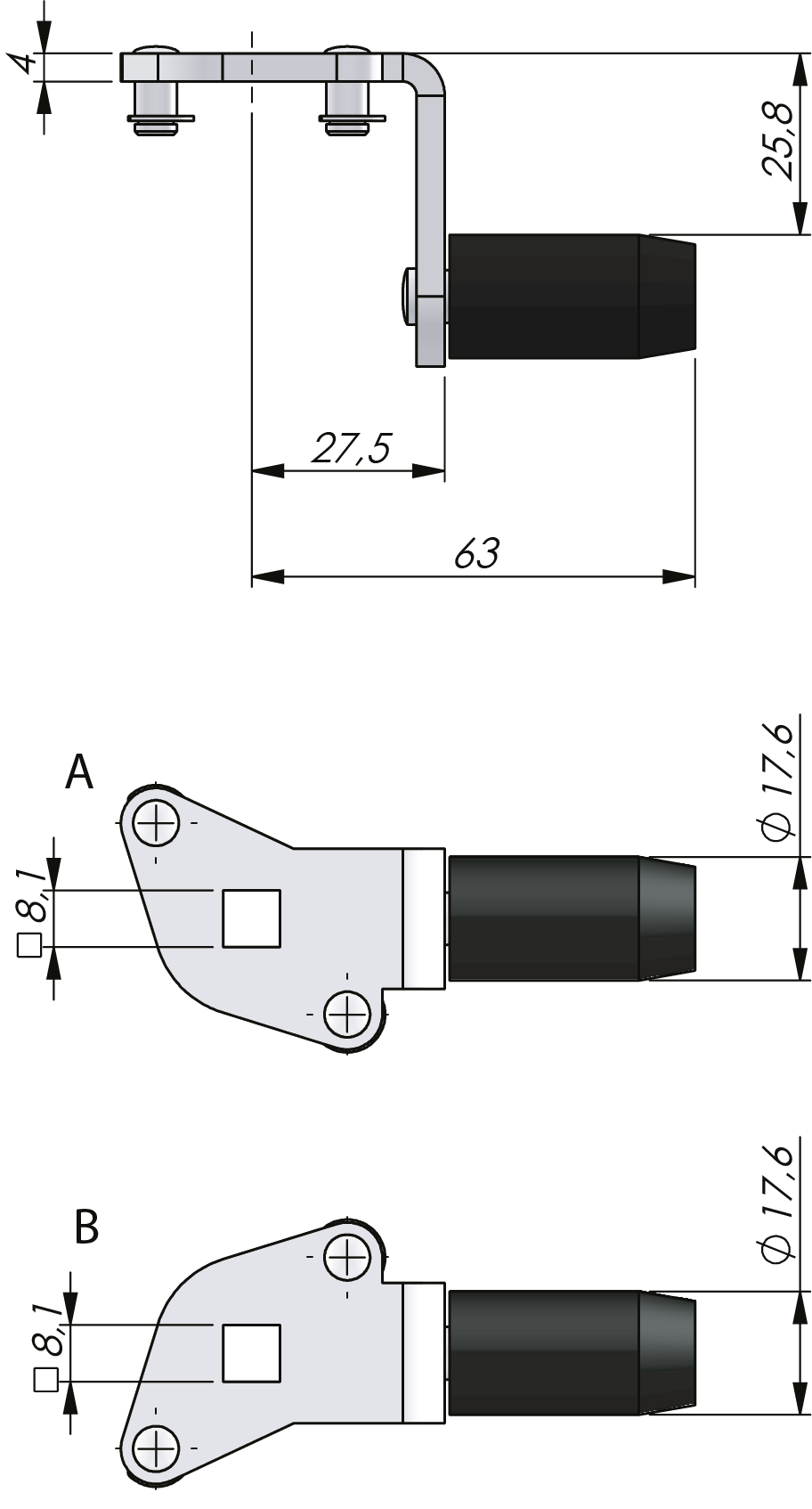

Roller cam for three-point latching systems with rods. Can remotely operate additional roller cams from a single handle or quarter-turn latch. Supplied with E-clips. Version A without projection is shown in the drawing.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
CamSteel, passivated
RollerGlass fibre reinforced polyamide (PA6GF30)
Shaft and E-clipSteel, zinc plated
