Grab Handle

Index Code 5-195

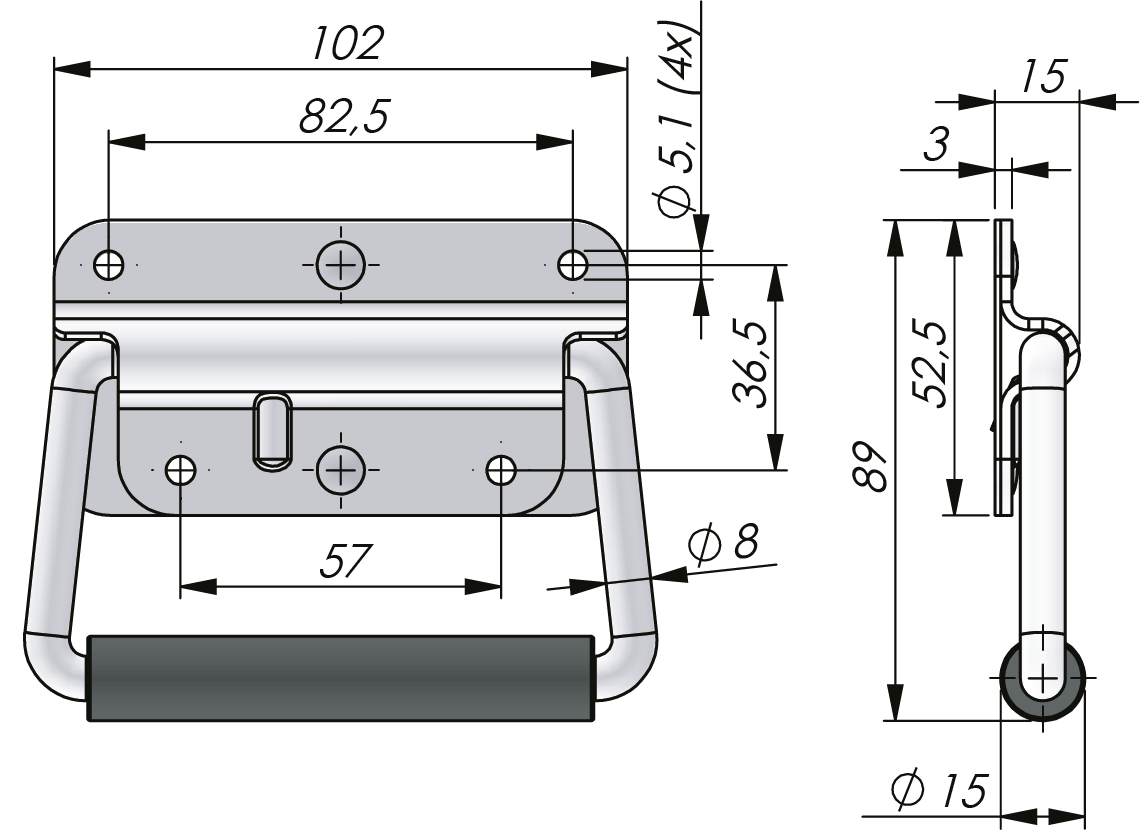

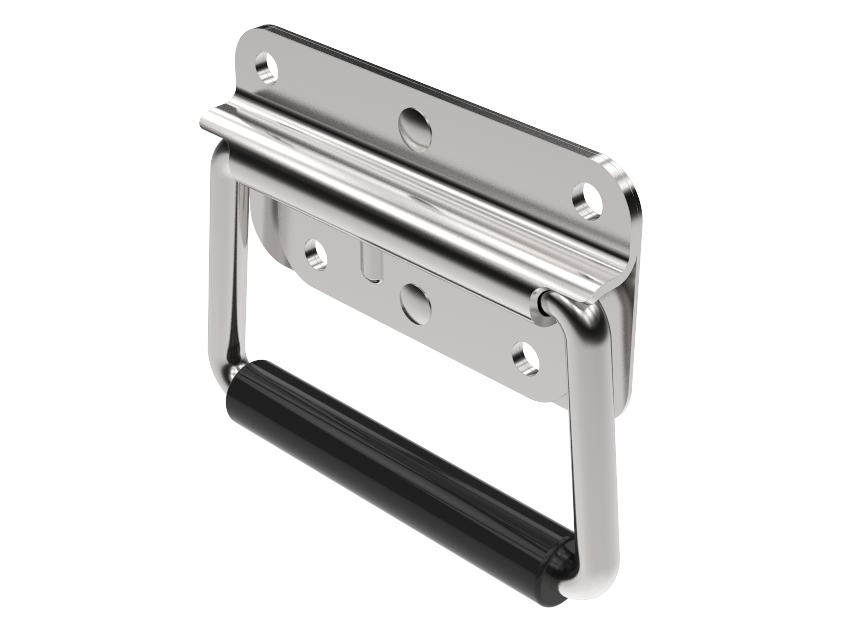

Spring loaded surface mounted handle. Folds out during use and will spring back to flush position when released. Handle part is covered with durable PVC.
Download PDFRecommended Tightening Torque
HandleSteel, zinc plated
Inner plateStainless steel
Outer plateSteel, zinc plated
GripPVC
Choose CAD format here: INFO_TEXT
Download here:
3D CAD files are for reference only and are not a quality document. Errors may occur. Read full disclaimer

The 3D CAD models are provided as a design aid and for reference only. They are not a quality document and do not replace official product specifications, technical drawings or data sheets. Simplifications, inaccuracies or errors can occur, for example in dimensions, tolerances or details, and may also arise when files are converted between formats. Industrilås accepts no liability for errors in the CAD files or for any consequences of their use. Always verify critical dimensions against the current product documentation, or contact us if you are unsure.

CAD* P/N Description
572103 Spring loaded handle
