Klima-flex 1 Acid-proof Latching System

Index Code:
2-311ef

These Klima-flex 1 latching systems provides a complete stainless steel latch and handle configuration. Handles and external exposed housing are always manufactured in acid-proof 316 material, available in non-locking or padlockable version. The latching units G40 and M are available in acid-proof stainless steel 316. The non-locking handle 269076-00 can be ordered separately and can be used with all Klima-flex 1 latching units. Padlockable acid-proof handle can only be ordered as a complete system according to P/N-structure 2690.

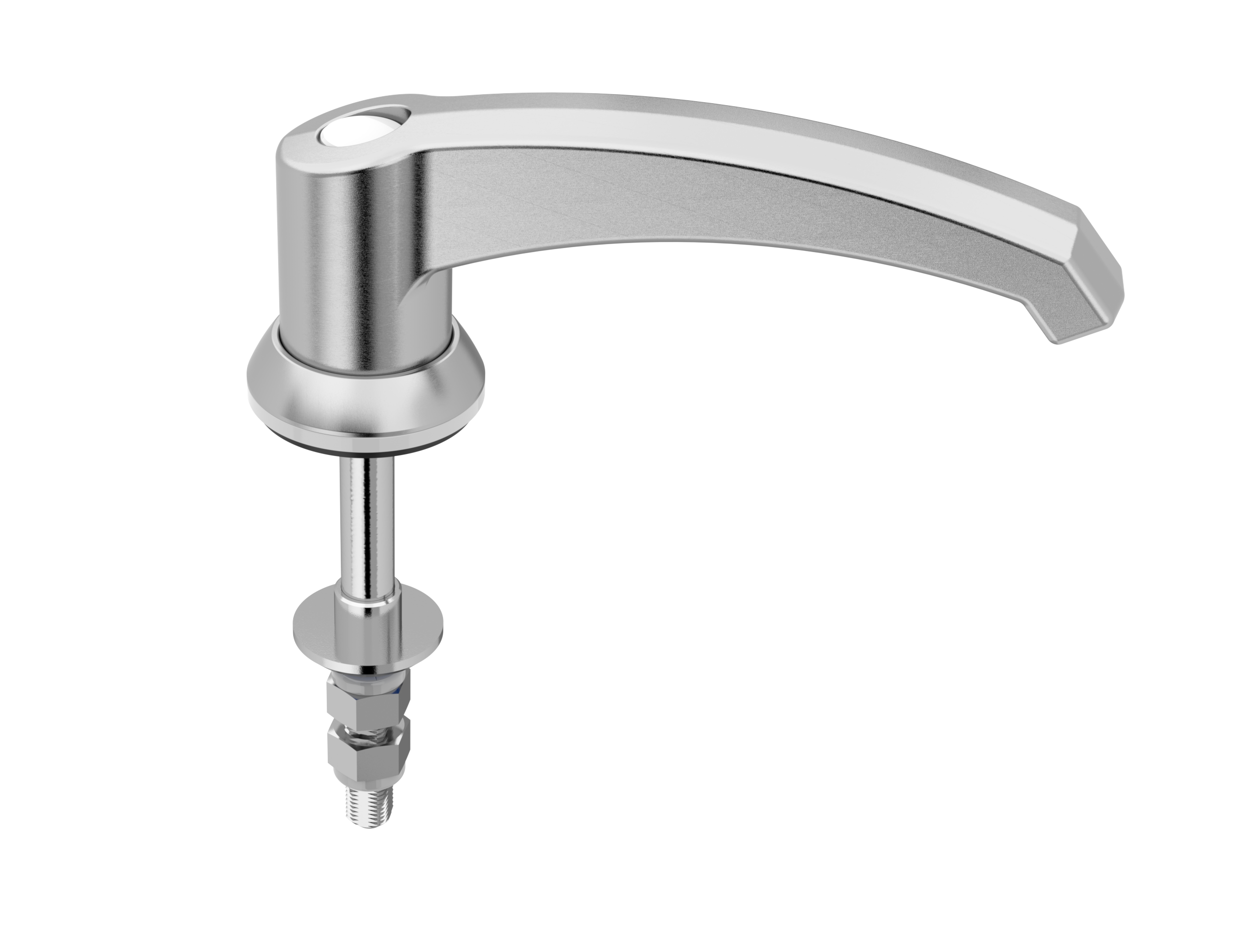

Drawing A = Non-locking latching unit (G40)
Drawing B = Padlocking latching unit (G40)

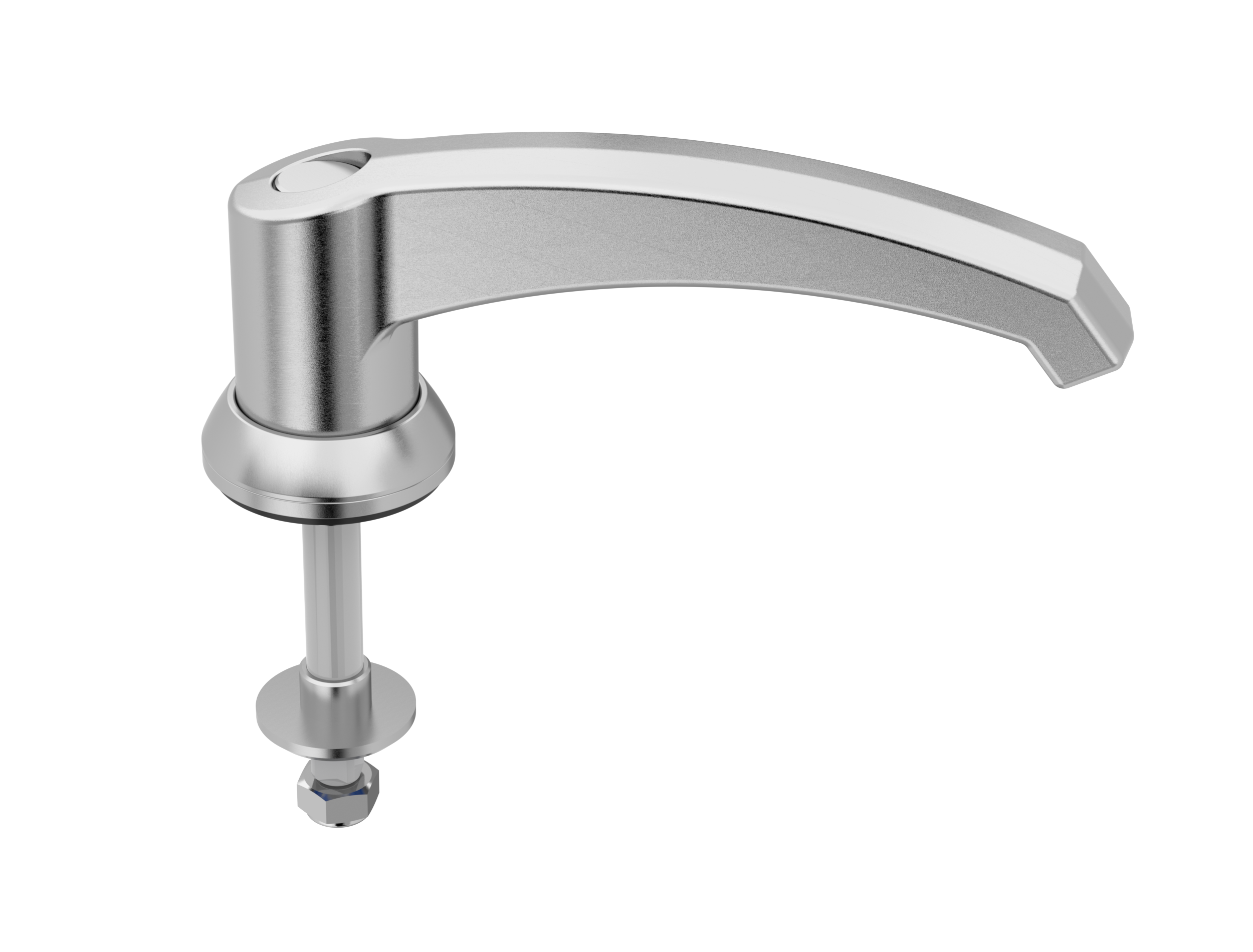

Drawing C = Non-locking latching unit (M)
Drawing D = Padlocking latching unit (M)

HandleStainless steel 316
HousingStainless steel 316
Latching unitStainless steel 316
NutStainless steel 316
Padlock loopStainless steel 316
ScrewStainless steel 316
Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
StandardsVDI 6022
Download PDF
Assembly Instructions 2690-00-G
Download PDF
Assembly Instructions 2690-60-G
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account
A product number is created by combining the figures in each column (AAAA-BB-CD-EEE)
AAAA Handle
2690SS 316
BB Locking
00Non-locking
60Padlockable
C Latching unit
GG40
MM
D Material insert and housing
9SS 316
EEE Panel thickness
02525 mm
05050 mm
07575 mm
100100 mm
