Handle rotation 90° in both directionsOpening angle of hinges, applicable angle shown in numbersProfile cylinder

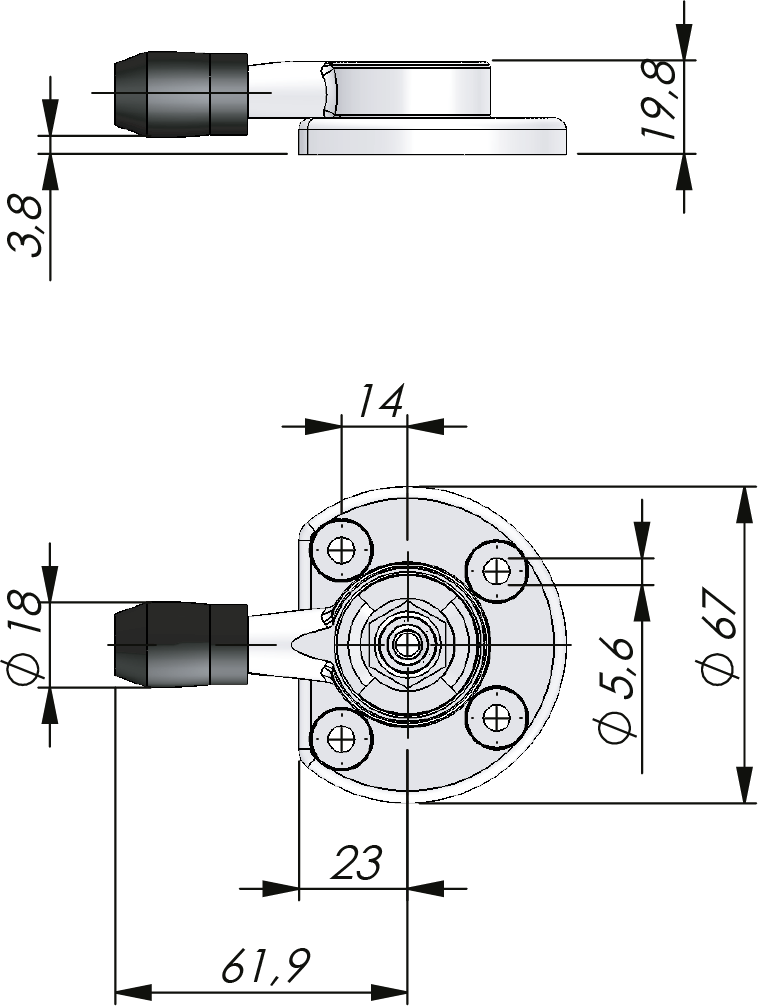

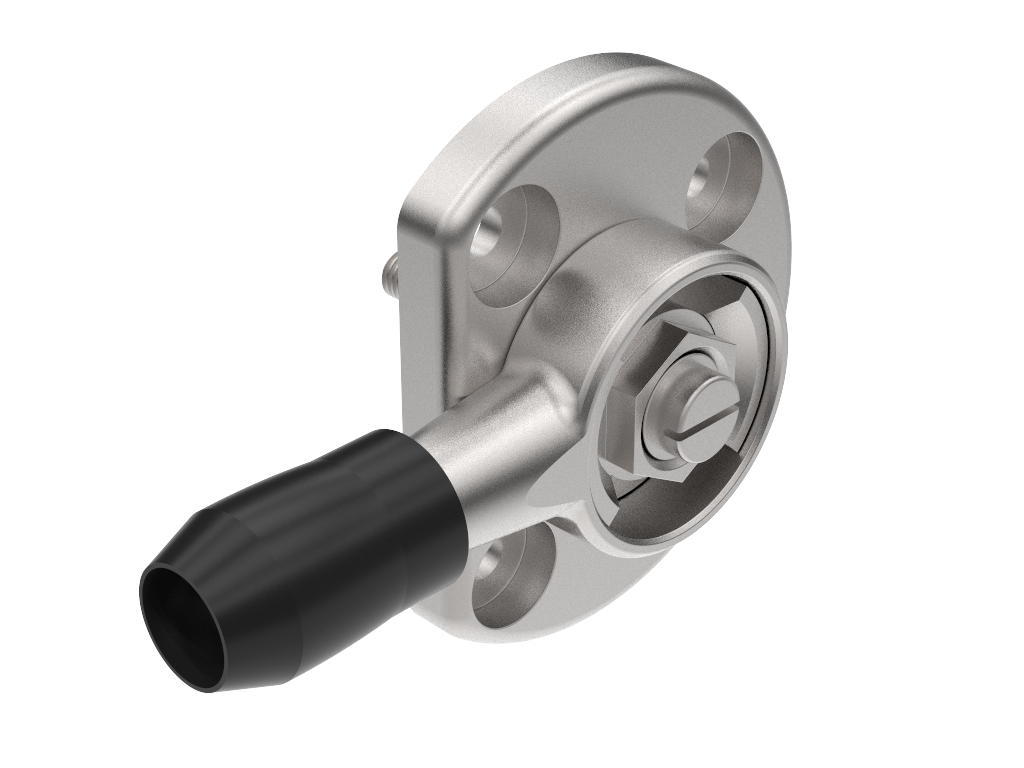

Klima-flex 1 Latch Unit Inswing Door

Index Code:
2-316b

Industrilas Klim-flex™ latching unit for doors that opens inwards for HVAC-applications. Mounted with screws or rivets.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
Base plateZinc die cast, zinc plated
CamZinc die cast, zinc plated
RollerGlass fibre reinforced polyamide (PA6GF30)
