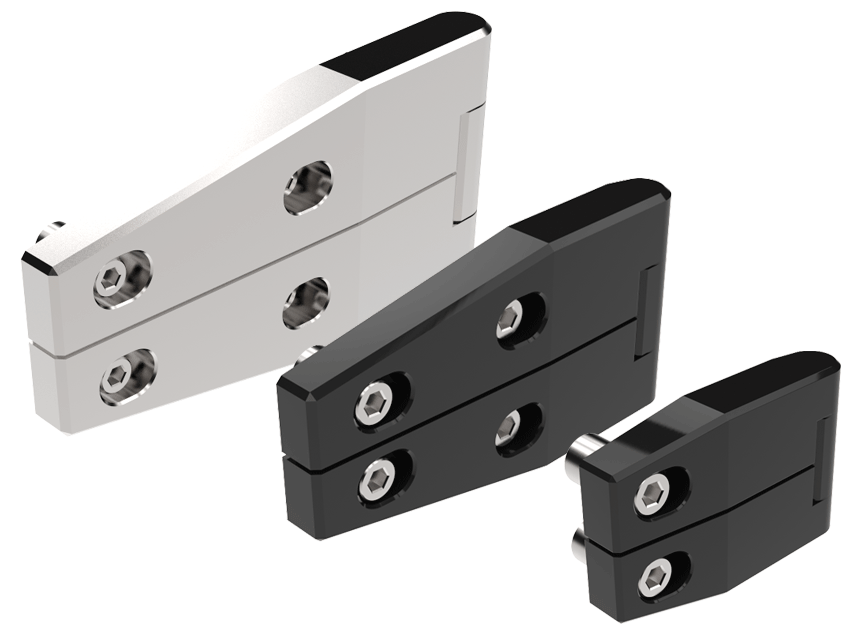

Klima-flex Adjustable 2D-Hinge 180°
Index Code:3-160
Specifically designed hinges to simplify mounting on insulated doors. Adjustable in the X- and Y-axis by 3 mm. Lift-off feature when lower hinge part is removed. Supplied with mounting plate.
| Hinge | Zinc die cast, zinc plated or black texture powder coated |
|---|---|
| Mounting plate | Zinc die cast, zinc plated |
| Pin | Steel, zinc plated |
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Download PDF | 3-160 321651 assembly instruction.pdf |
