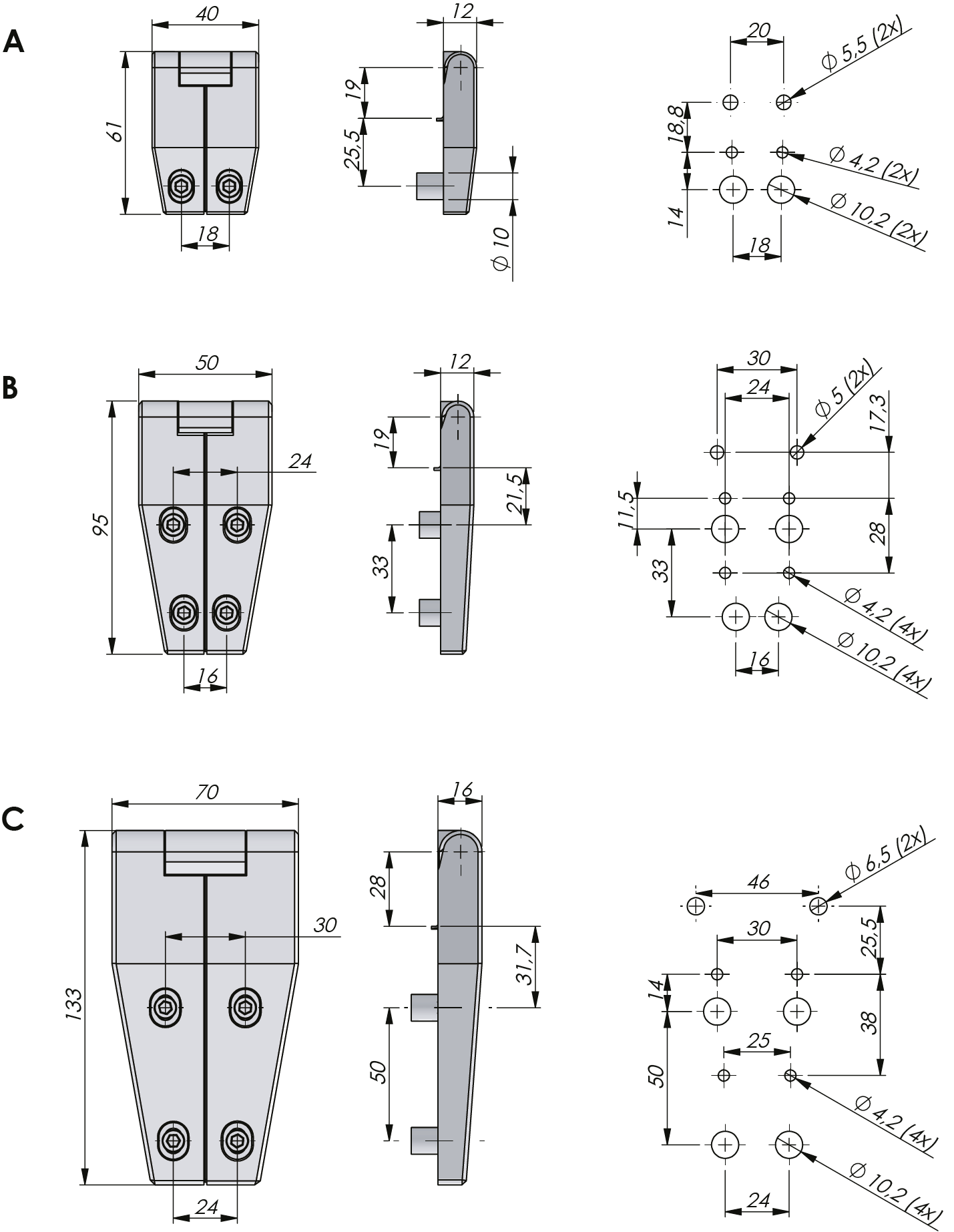

Klima-flex Adjustable 2D-Hinge 180° Stainless Steel

Index Code:
6-355

Specifically designed hinges to simplify mounting on insulated (double skinned) doors. Adjustable in the X- and Y-axis by 3 mm and with opening angle 180°. Supplied with mounting plate.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
HingeStainless steel 304
Mounting plateStainless steel 304
PinStainless steel 304
Notes

On request this hinge may also be delivered in acid-proof stainless steel 316 and acid-proof stainless steel 316L for welding.
