Handle rotation 90° in both directionsOpening angle of hinges, applicable angle shown in numbers

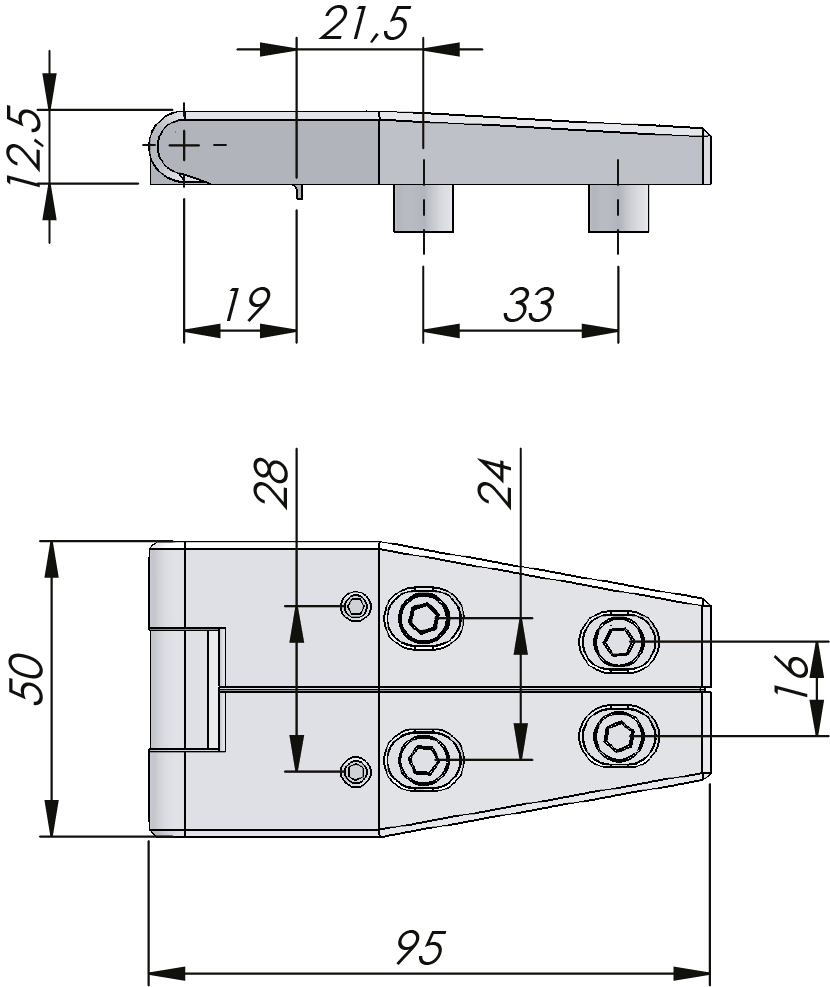

Klima-flex Adjustable 3D-Hinge 180°

Index Code:
3-163

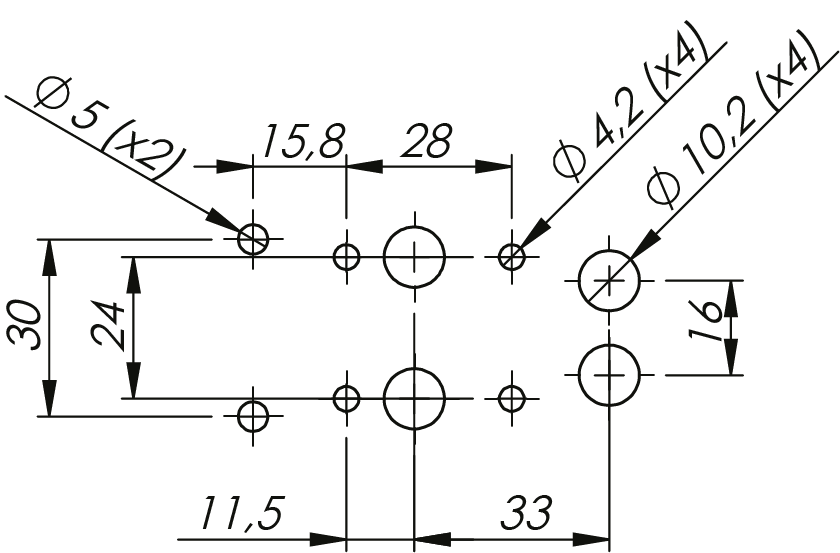

Specifically designed hinge to simplify mounting on insulated doors. Adjustable in the X-, Y- and Z-axis by 3 mm.

Supplied with adjustment screws and fastening plate.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
HingeZinc die cast, zinc plated or black texture powder coated
PinSteel, zinc plated
Mounting plateZinc die cast, zinc plated
