Klima-flex Heavy-duty Adjustable 3D-Hinge 180°
Index Code:3-162

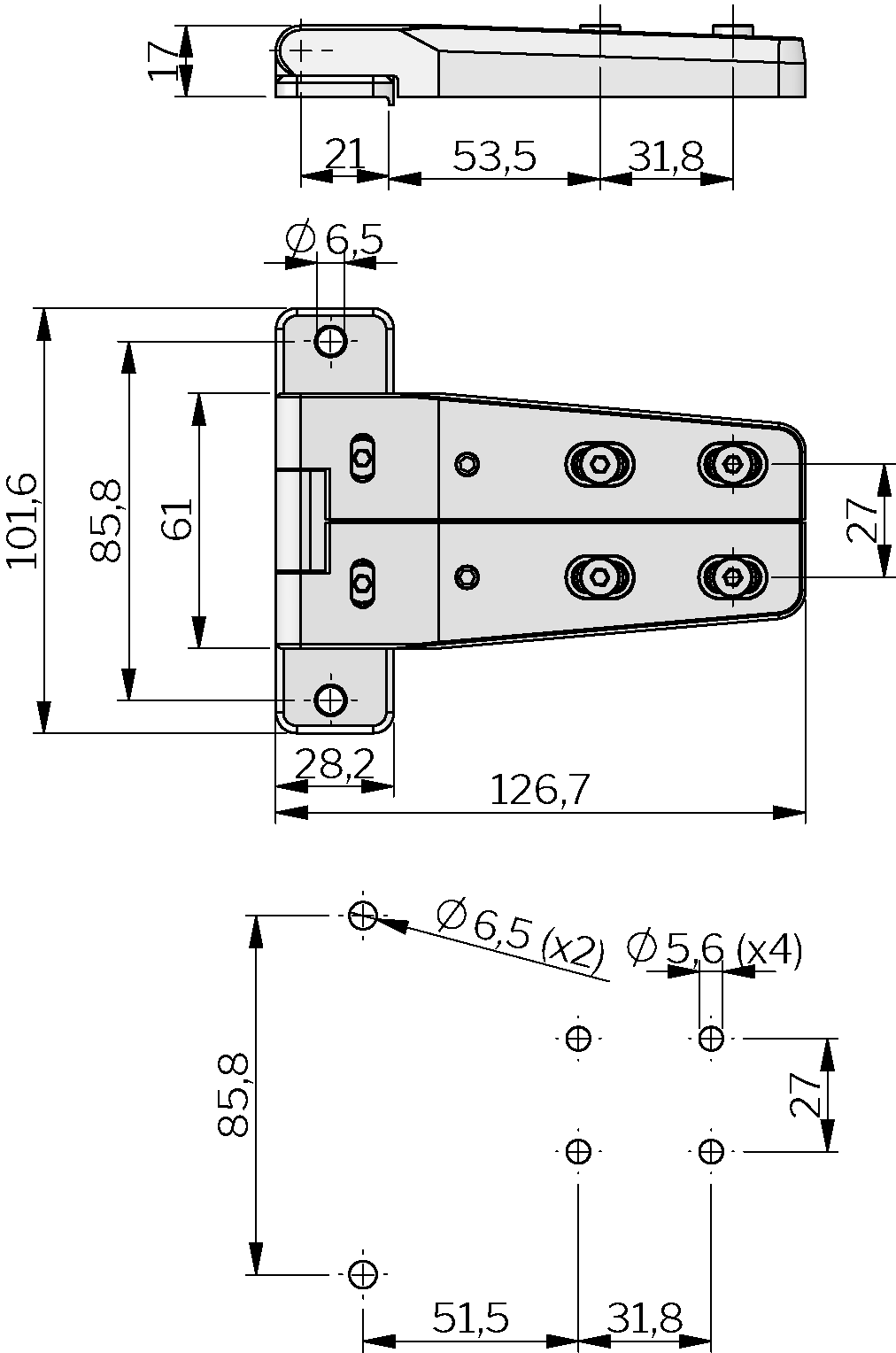

Surface mounted heavy-duty hinge, especially designed for insulated doors. Adjustability in all three dimensions ensure perfect alignment of your door. Adjustable in X- and Y-axes with 6 mm and in Z-axis with 3 mm. Comes with a fastening plate for thin door skins. Lift-off feature when lower hinge part is removed in first step.
Supplied with adjustment screws and fastening plate.
Download PDF | Product Data Sheet |
Download PDF | Recommended Tightening Torque |
Door part | Zinc die cast, zinc plated or black texture powder coated |
---|---|
Frame part | Zinc die cast, zinc plated or black texture powder coated |
Screw | Steel, zinc plated |
Mounting plate | Zinc die cast, zinc plated |
Pin | Steel, zinc plated |
Washer | Brass, nickel plated |
