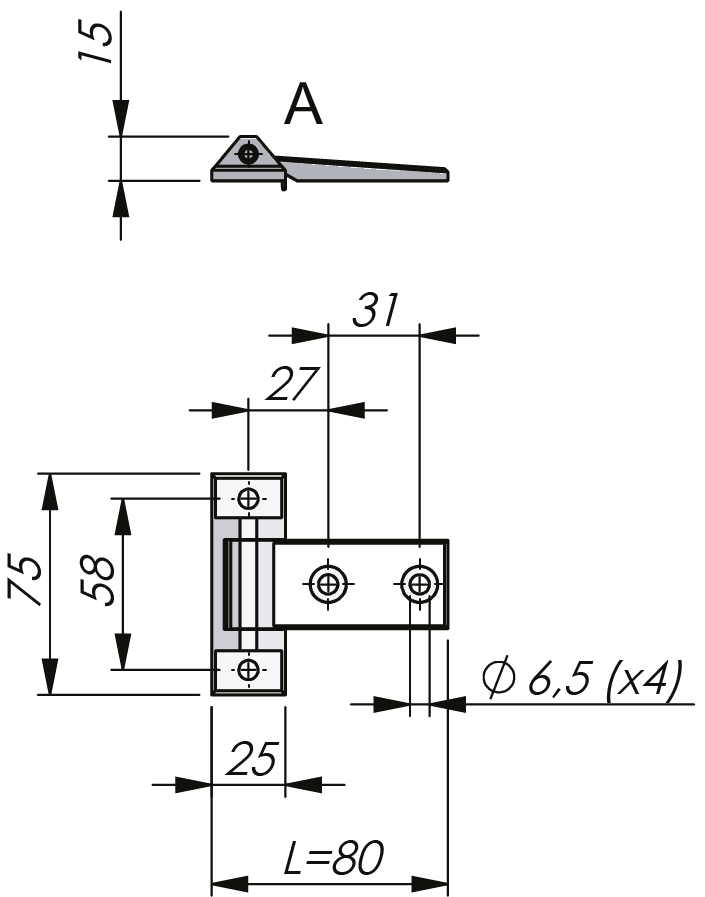

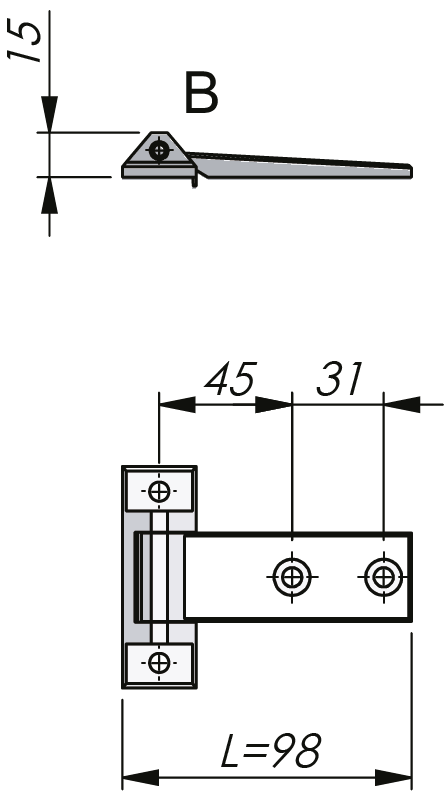

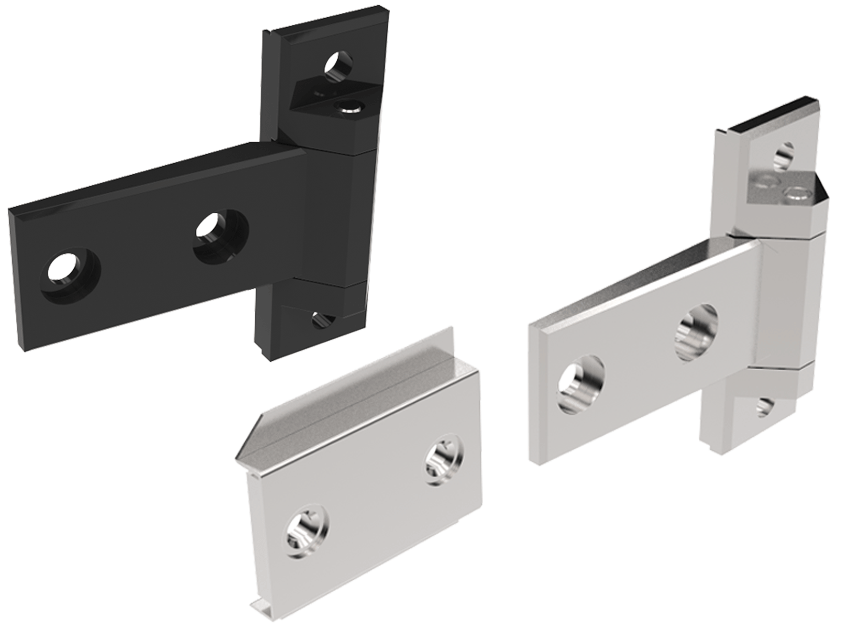

Klima-flex Hinge 180°
Index Code:3-170
Adjustable in the X- and Y-axis if used with adjustment parts and oversized mounting holes in the door. The hinge is mounted to a threaded plate previously attached to the inside of the door with a mounting bracket, temporarily taped to the door skin. The hinge can also be used without the adjustment parts, by using self-tapping screws. Universal right or left mounting.

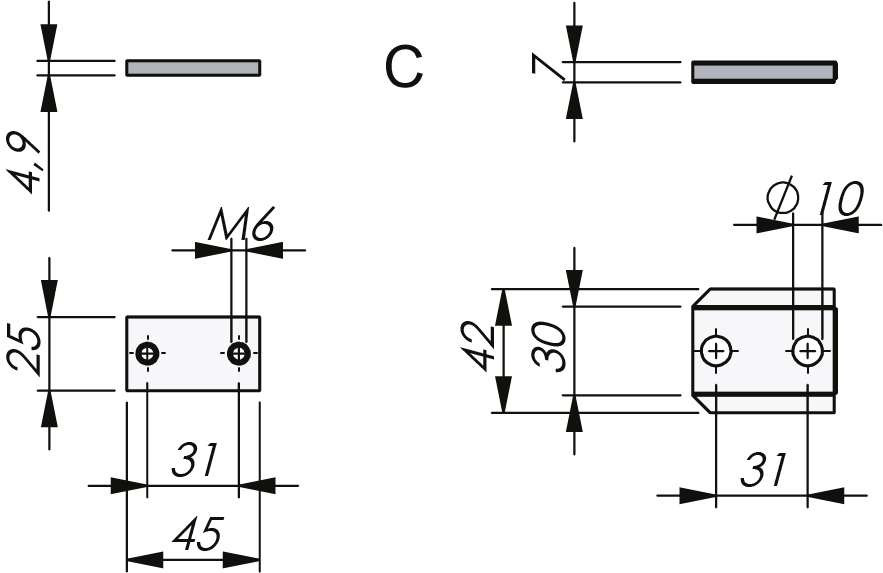

Adjustment parts = Threaded plate with bracket (drawing C).
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Bracket | Steel, zinc plated |
|---|---|
| Hinge | Zinc die cast, zinc plated, chrome plated or black texture powder coated |
| Pin | Steel, zinc plated |
| Threaded plate | Zinc die cast, zinc plated |
