Handle rotation 90° in both directions Round cylinder Padlock loop For use with control mechanism Classified according to IP66 Universally right or left mounted Equipped with integrated PUR-gasket (a.k.a

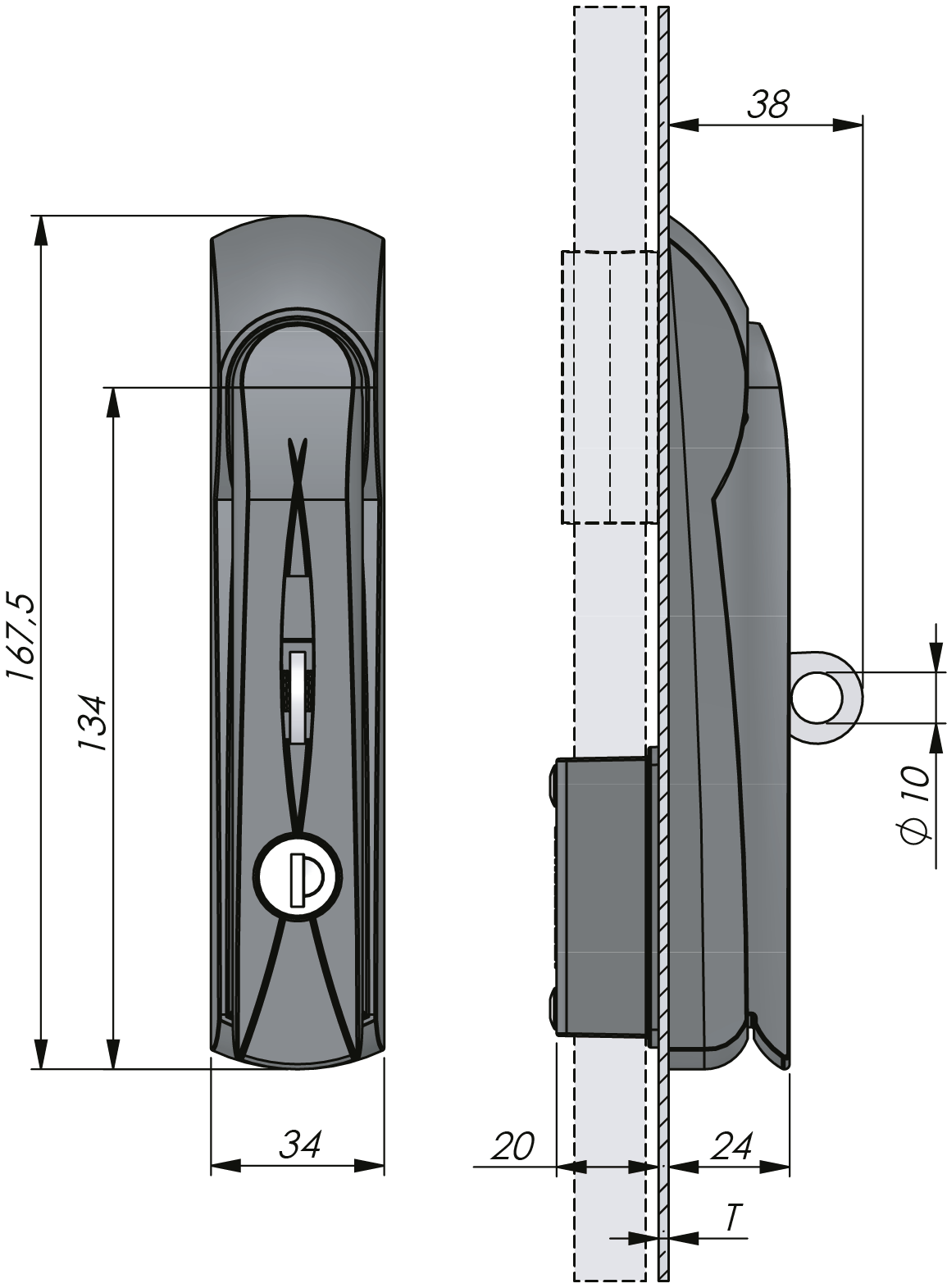

Vision Swing Handle Standard with cylinder

Index Code: 1-002.01

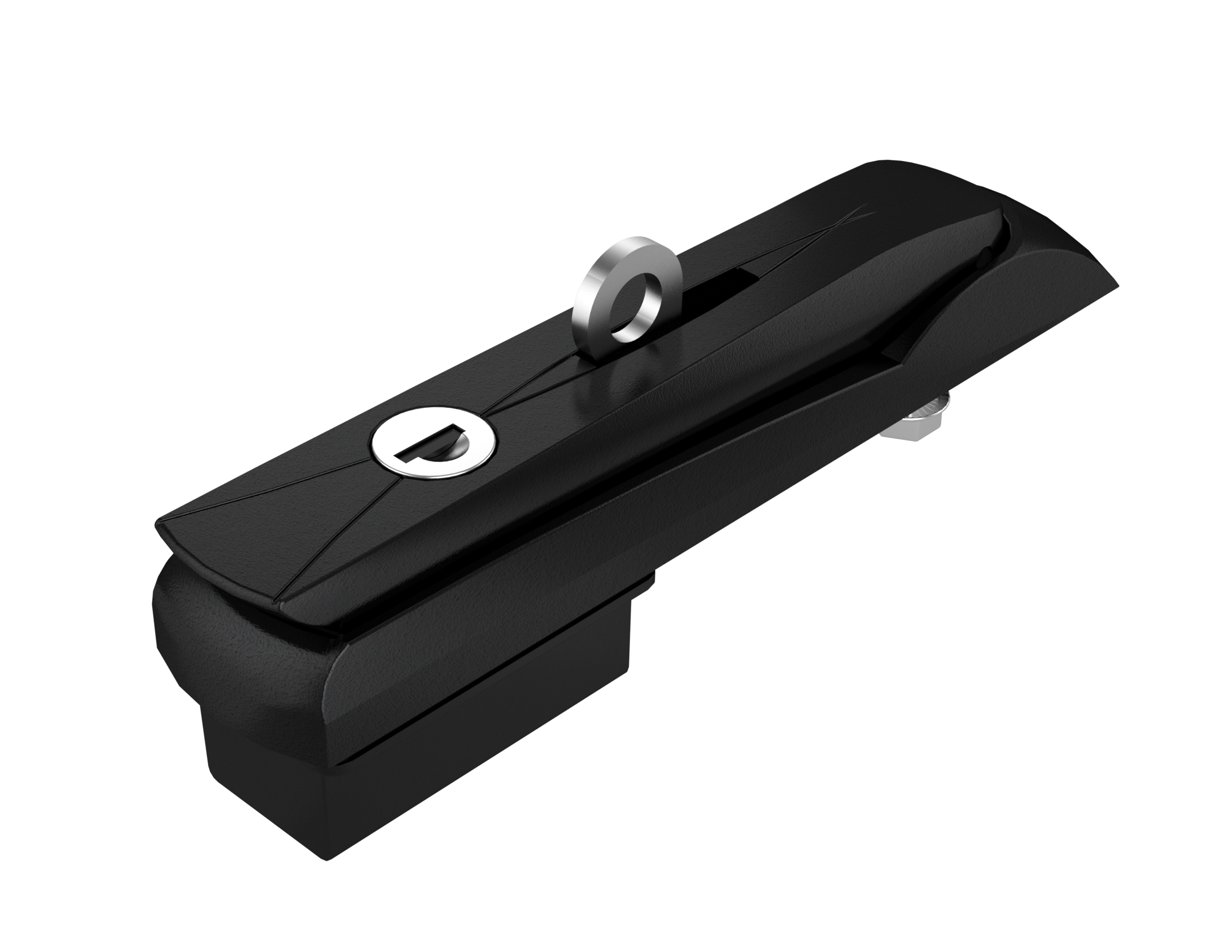

Low profile swing handle with cylinder lock for control mechanism. Supplied with two keys. Available in push-to-latch version where the spring-loaded cam latches when the handle is pushed in.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
Download PDF
Industrilas cut out versions
Cylinder Zinc die cast, stainless steel 304 cap and dust shutter
Handle Zinc die cast, black coated or fibre glass reinforced polyamide (PA6GF30)
Padlock loop Stainless steel 304
Pivot shaft Zinc die cast, zinc plated
Cutout Version C
Cylinder information Master key system on request
Standards IP66
NEMA 4
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account
A product number is created by combining the figures in each column (AAAAAAABC-DDDD)
AAAAAAA Material
1216118 Handle zinc / dish PA6
1216418 Handle zinc / dish zinc
1250118 Handle PA6 / Dish PA6
B Door thickness T
1 0,8-1,5 mm
2 1,6-2,5 mm
3 2,6-3,5 mm
C PDL
0 No
1 Yes
DDDD Cylinder
C21S Keyed alike IL101
C22S Keyed to differ*
C23S Keyed alike IL0333
500S No cylinder - blind plug

PDL = Spring loaded padlock loop retracts when handle is released.
