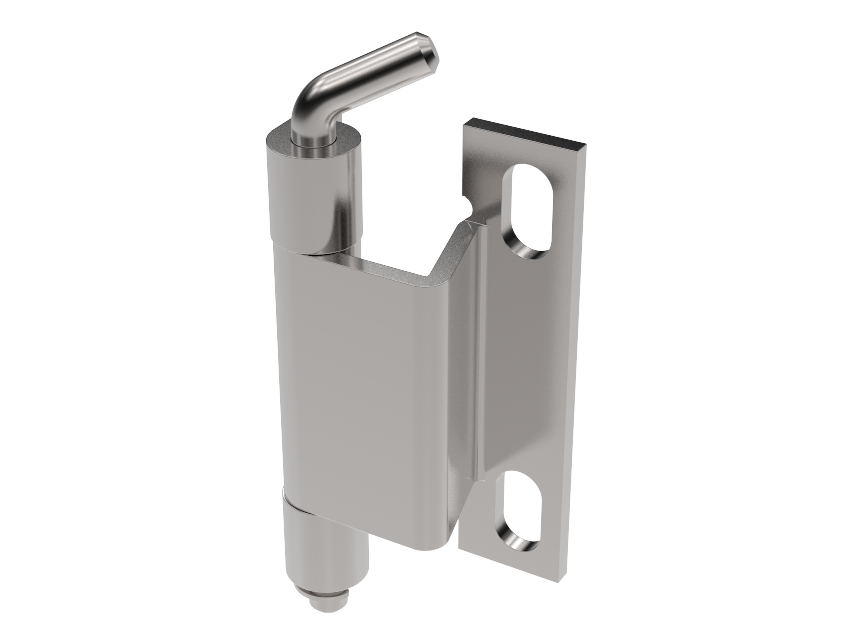

Concealed Adjustable Hinge 120° Stainless Steel
Index Code:6-330

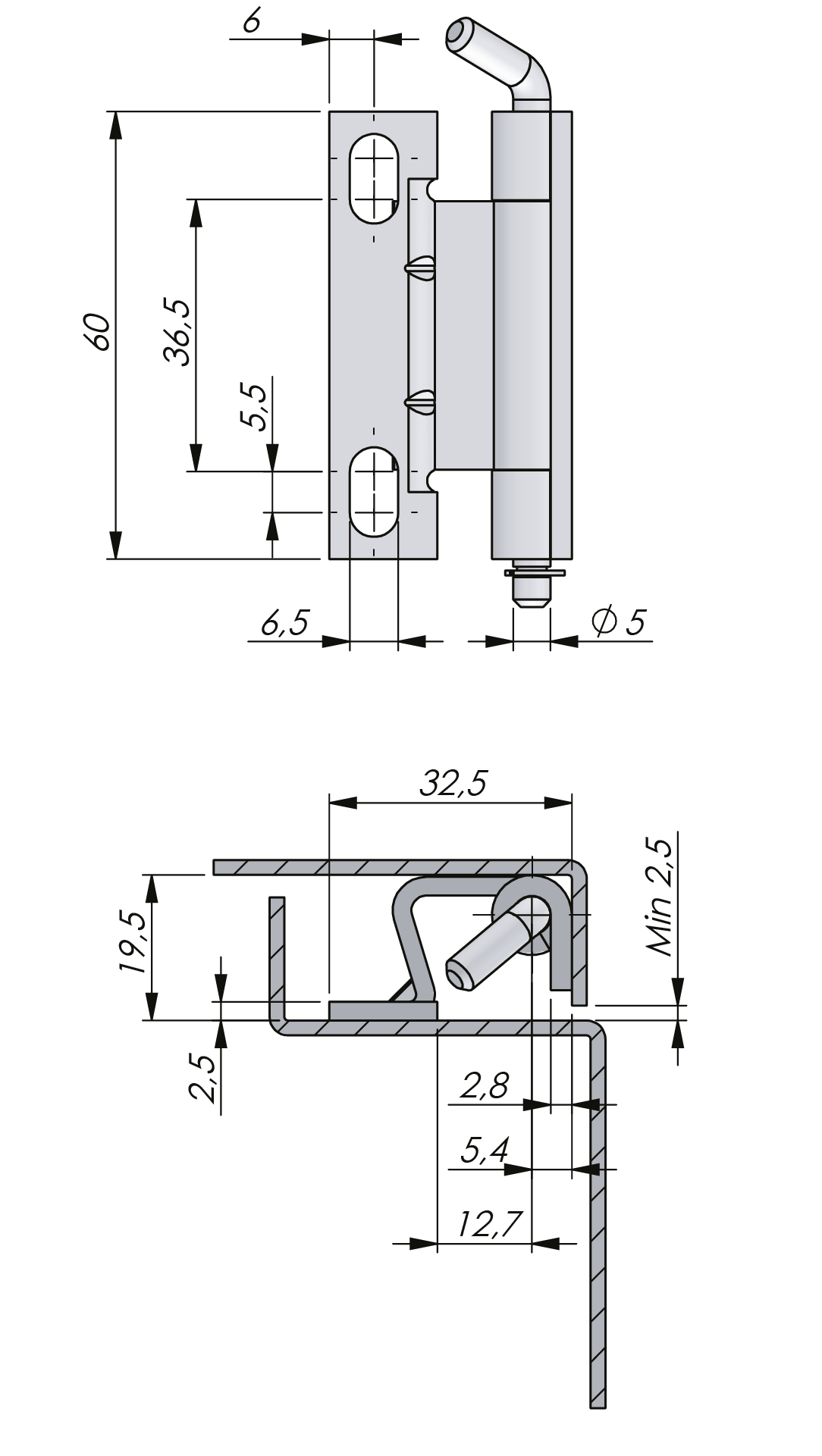

Concealed adjustable hinge for surface mounted doors with universal left and right mounting. For weld-on and screw mounting. Opening angle 120°. The hinge can be adjusted 5,5 mm vertically and is supplied with E-clip.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| E-clip | Stainless steel 316 |
|---|---|
| Hinge | Stainless steel 304 |
| Pin | Stainless steel 303 |
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
