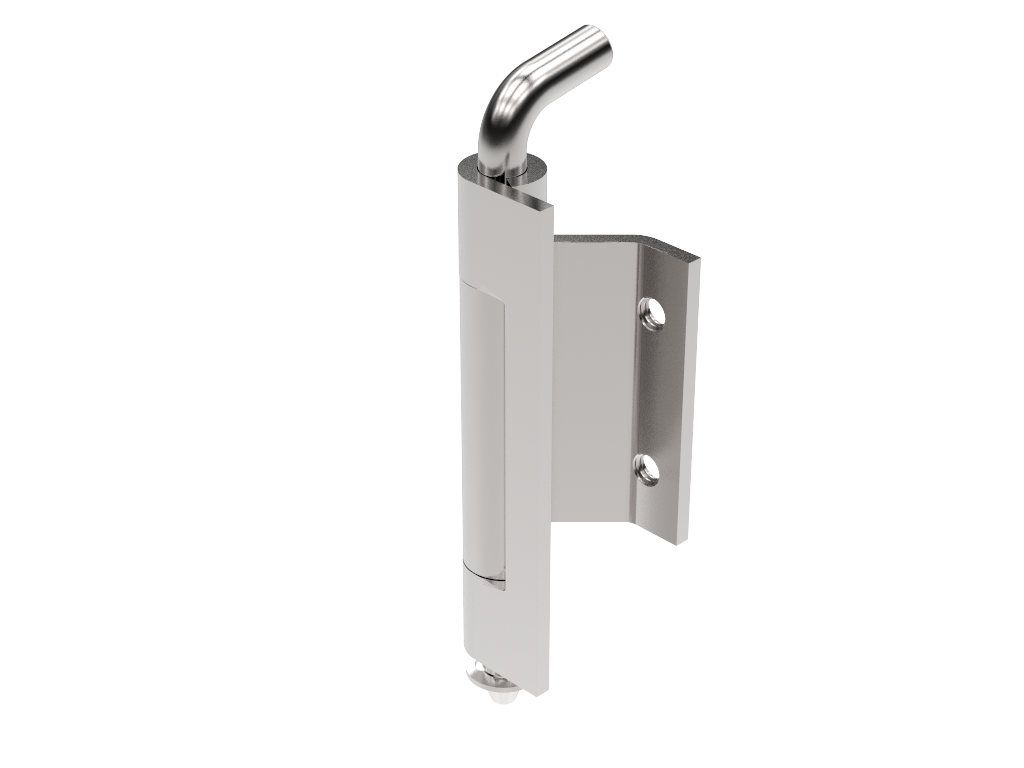

Concealed Hinge 100°
Index Code:3-050
Concealed hinge for mounting inside externally mounted doors with universal left and right mounting. Weld-on and screw-on mounting in combinations according to table.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Door part | Steel, unplated |
|---|---|
| Frame part | Steel, zinc plated or untreated |
| Pin | Steel, zinc plated |
| Notes | Product is supplied with E-clip. |
|---|
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
The weld-on parts are unplated.
