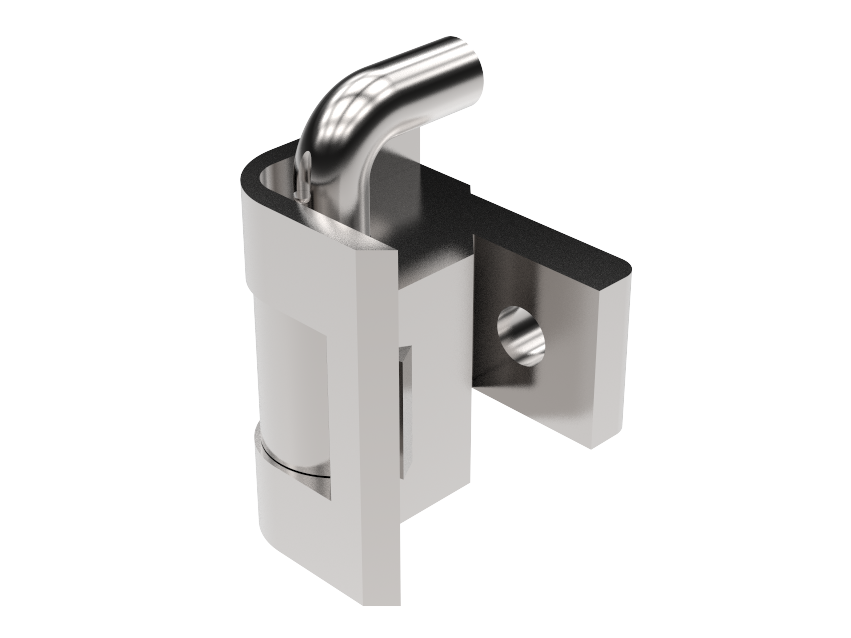

Corner Hinge 180°
Index Code:3-190
Corner hinge for surface mounted doors. Frame part is mounted using one screw from the inside. The door part is attached to the door and the pin is inserted into the hinge. Universal left and right mounting.
For plate thickness 1,0 - 1,5 mm. Supplied with special pin for grounding.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Hinge | Zinc die cast, chrome plated, black texture powder coated or black chromated |
|---|---|
| Pin | Hardened steel |
