Handle rotation 90° in both directionsOpening angle of hinges, applicable angle shown in numbers

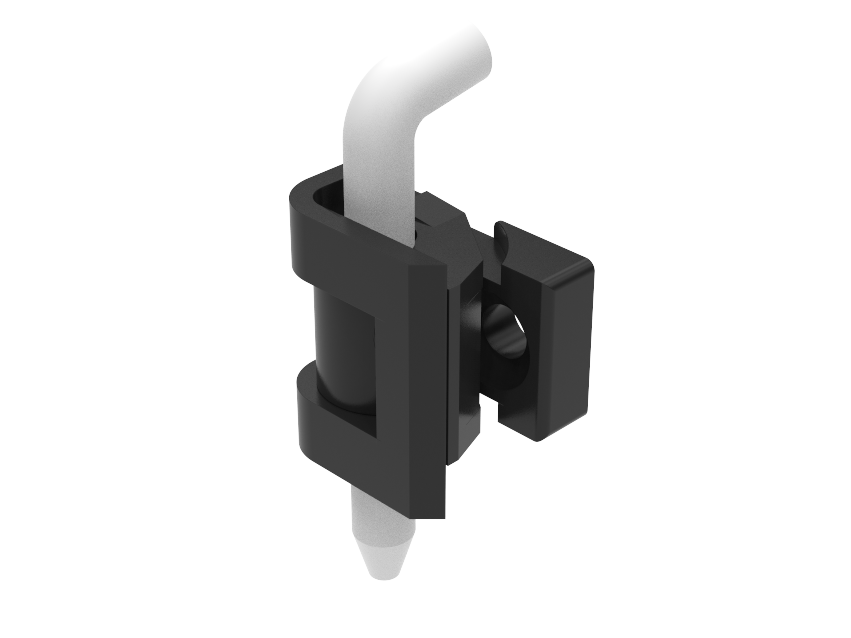

Corner Hinge 180°

Index Code:
3-195

Polyamide corner hinge for surface mounted doors. The frame part is mounted using one screw and nut from the inside. The door part is attached to the door and the pin is inserted into the hinge. Universal left and right mounting.

For plate thickness 1,2 - 1,5 mm.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
Door partGlass fibre reinforced polyamide (PA6GF30)
Frame partGlass fibre reinforced Polyamide (PA6GF30)
PinDelrin
