Handle rotation 90° in both directionsOpening angle of hinges, applicable angle shown in numbers

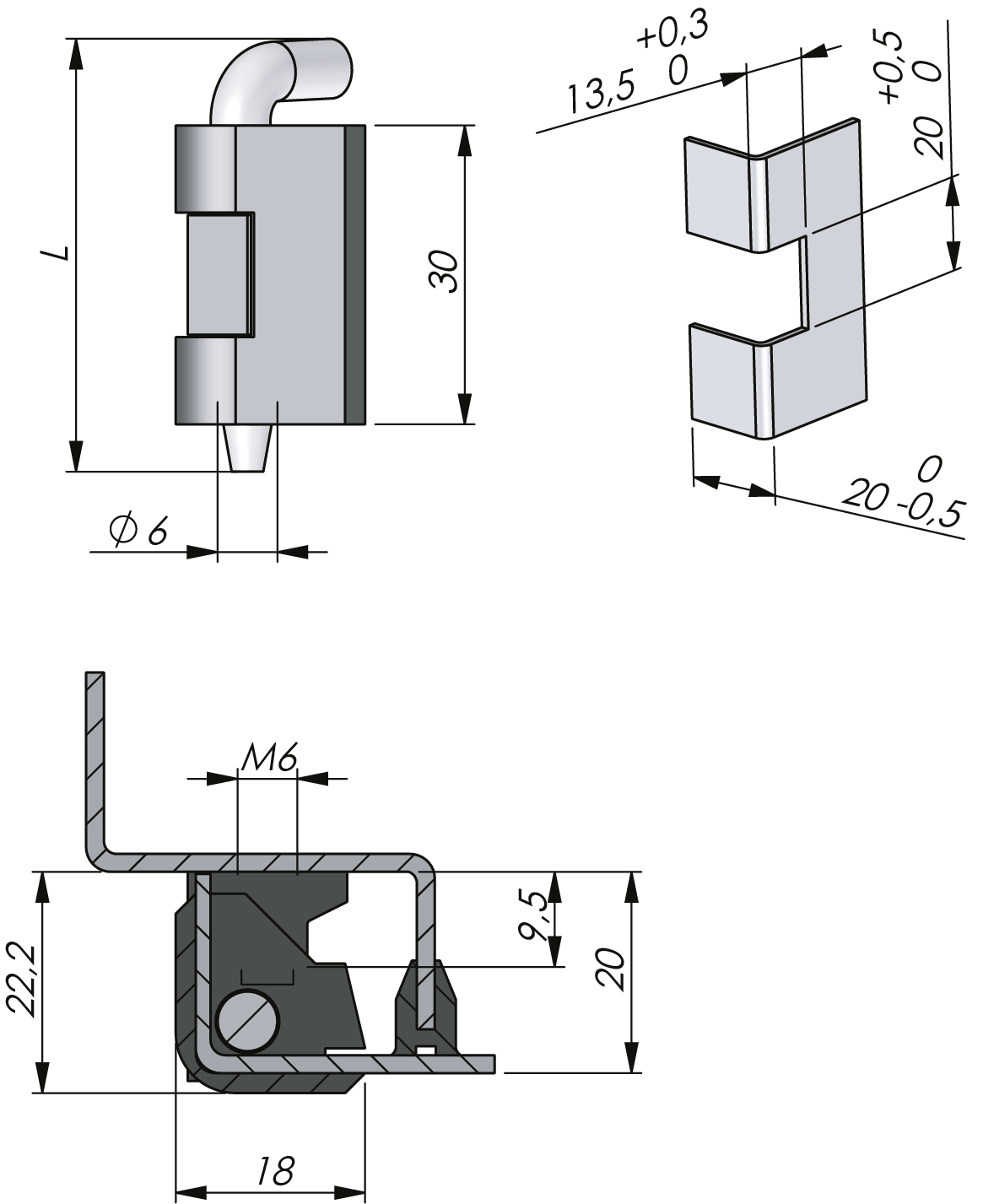

Corner Hinge 90°

Index Code:
3-185

Corner hinge for surface mounted doors. Frame part is mounted using one screw from the inside. The door part is attached to the door and the pin is inserted into the hinge. Universal left and right mounting.

For plate thickness 1,8 - 2,25 mm.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque

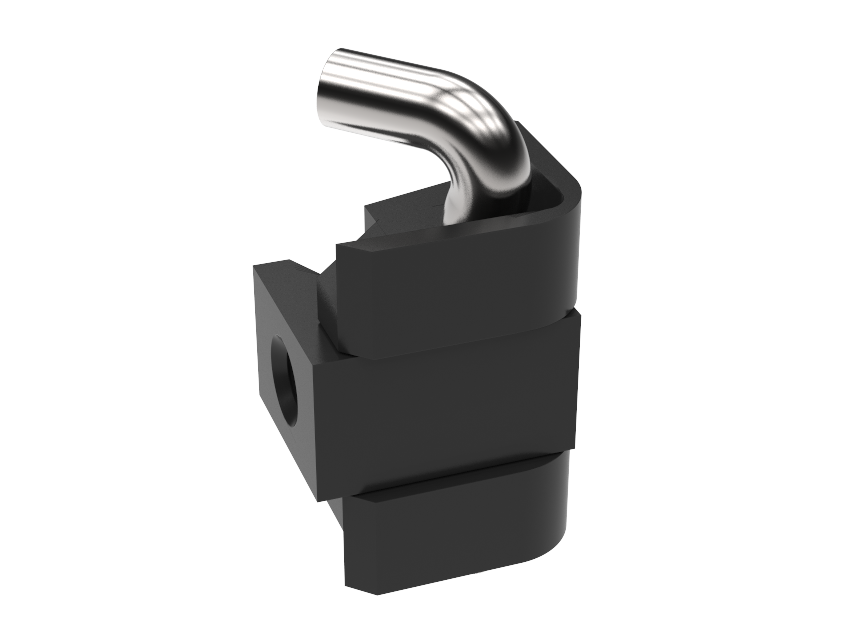

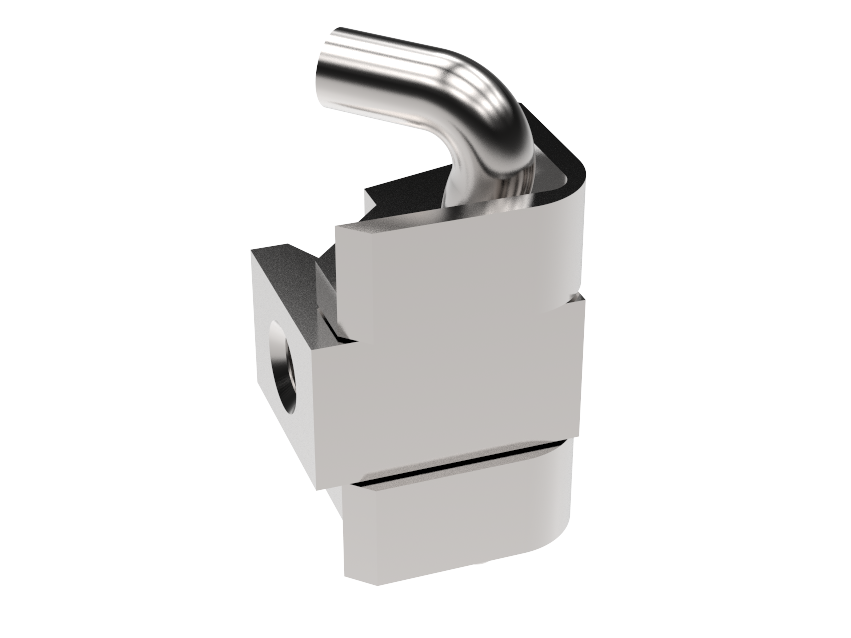

HingeZinc die cast, chrome plated, black texture powder coated or black chromated
PinSteel, zinc plated
Choose CAD format here:

To download CAD-Files for this product
1. Select CAD-format
2. Click the green cube icon to generate CAD-Files
3. Wait until the download symbol is completed
4. Click the download symbol to download

Download here:
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account
