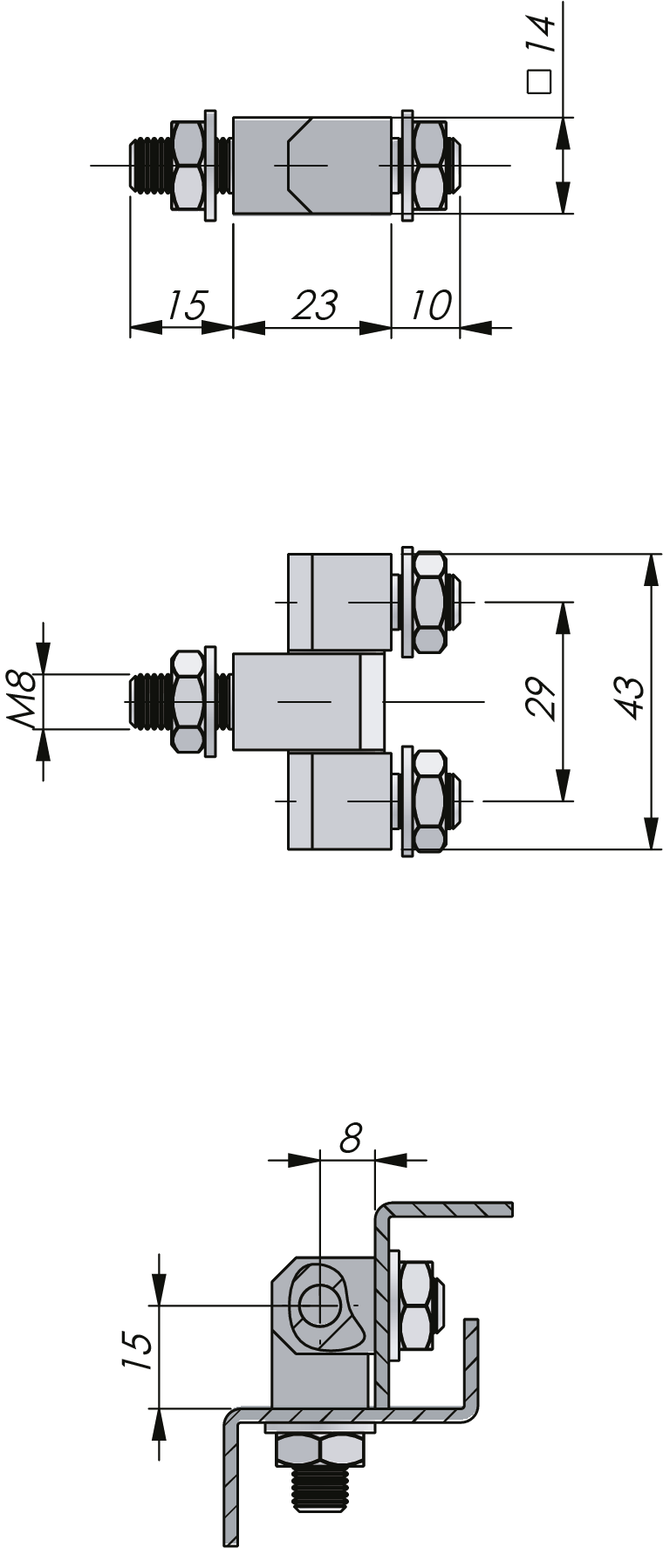

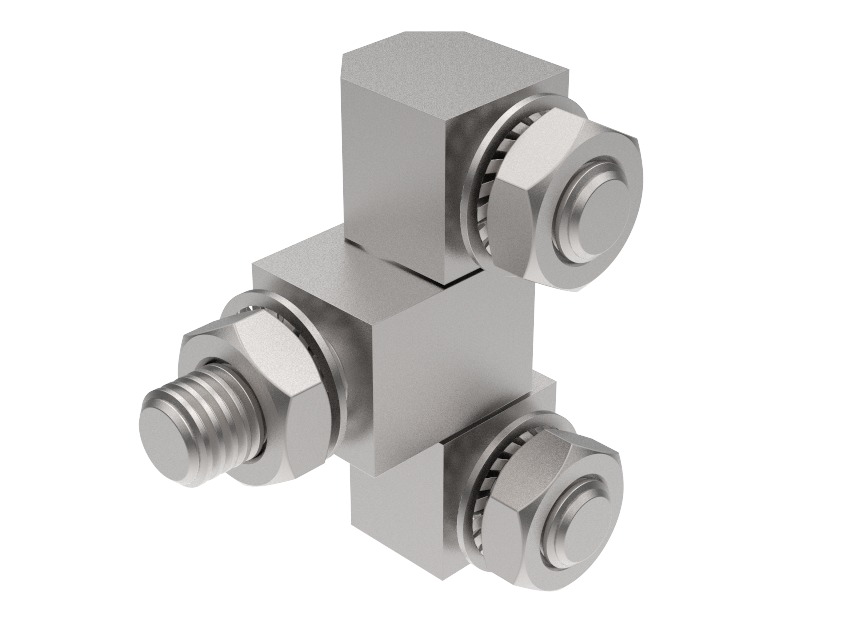

External Bolt-On Hinge 180°
Index Code:3-530
External bolt-on hinge for surface mounted doors with universal left and right mounting. Opening angle 180°.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Hinge | Steel, zinc plated |
|---|---|
| Nut | Steel, zinc plated |
| Washer | Brass, nickel plated |
| Pin | Brass, nickel plated |
| Notes | Supplied unassembled, with nuts and washers. |
|---|
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
