External Bolt-On Hinge 180°

Index Code 3-505
180° opening angle of hinges Universally right or left mounted Lift-off function

External bolt-on hinge for surface mounted doors with universal left and right mounting. Opening angle 180°. Two-part version in lift-off design, and three-part version in fixed design.

Non-stock item, price and delivery time upon request.

Download PDFRecommended Tightening Torque
NutSteel, zinc plated
HingeSteel, zinc plated
PinBrass, nickel plated
WasherBrass, nickel plated
NotesSupplied unassembled, with nuts and washers.
Choose CAD format here: INFO_TEXT
Download here:
3D CAD files are for reference only and are not a quality document. Errors may occur. Read full disclaimer

The 3D CAD models are provided as a design aid and for reference only. They are not a quality document and do not replace official product specifications, technical drawings or data sheets. Simplifications, inaccuracies or errors can occur, for example in dimensions, tolerances or details, and may also arise when files are converted between formats. Industrilås accepts no liability for errors in the CAD files or for any consequences of their use. Always verify critical dimensions against the current product documentation, or contact us if you are unsure.

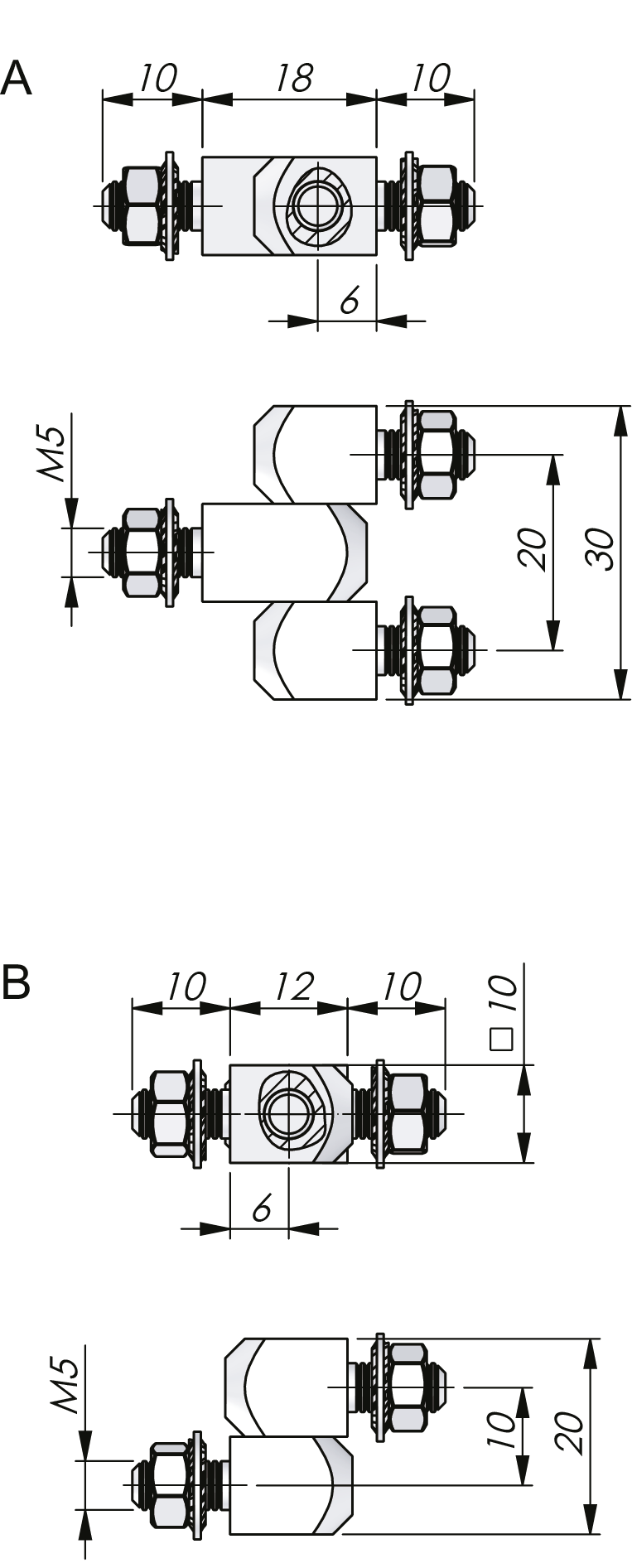

CAD* P/N Description Version Opening Angle Drawing
322109  Two-part hinge Lift-off 180° B
322110  Three-part hinge Fixed 180° A
