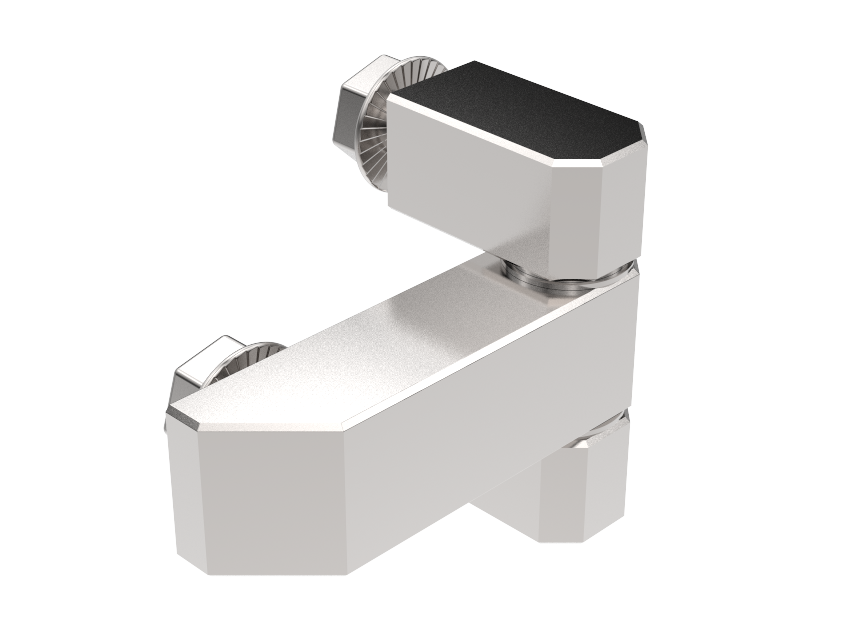

External Bolt-On Hinge 180°

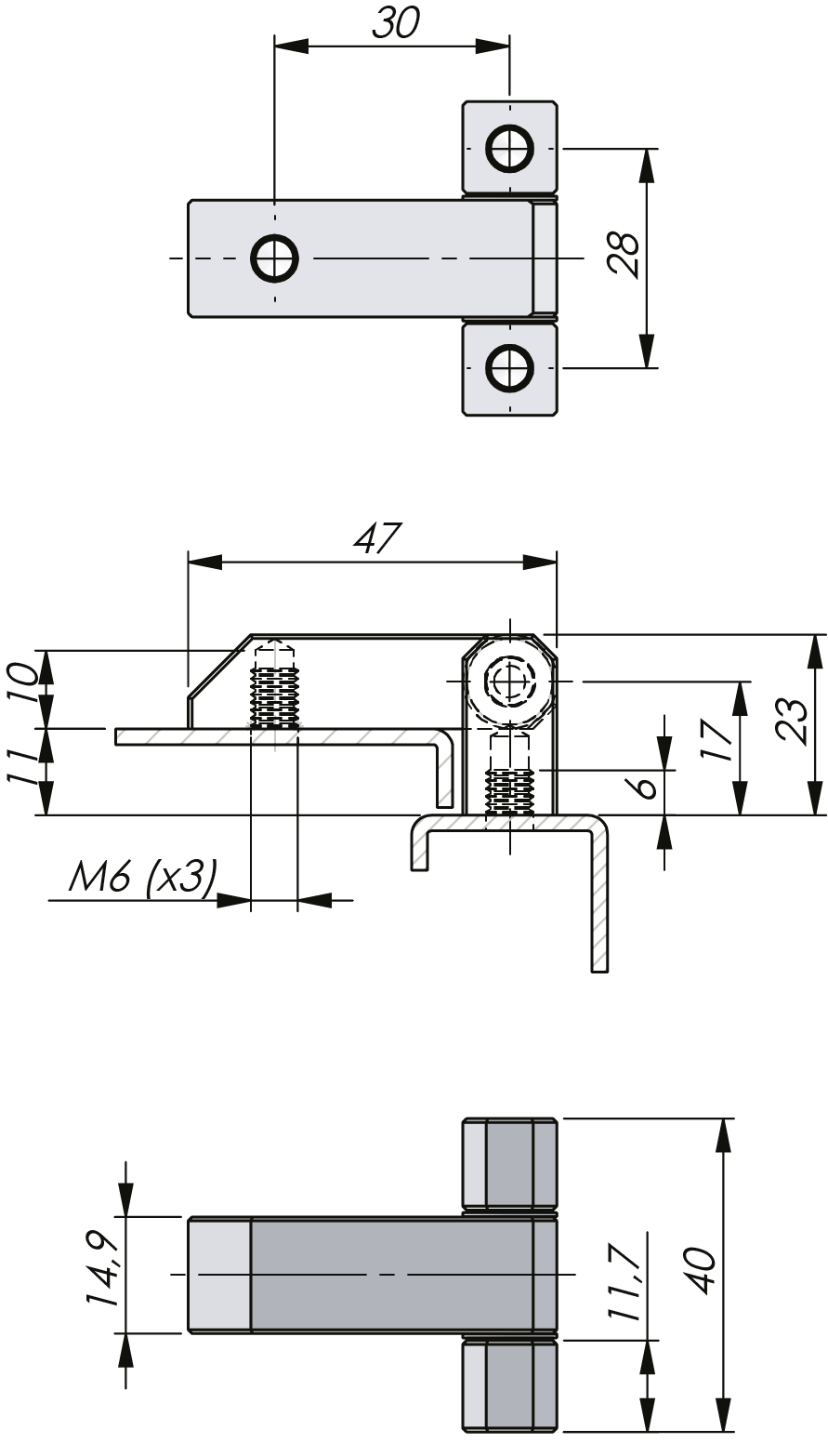

External bolt-on hinge for surface mounted doors with universal left and right mounting. Opening angle 180°. Offset between frame part and door part is 11 mm.
| Download PDF | Recommended Tightening Torque |
| Screw | Steel, zinc plated |
| Hinge | Zinc die cast, zinc plated or black texture powder coated |
| Pin | Steel, zinc plated |
| Washer | Brass, nickel plated |
| Notes | Each hinge is supplied assembled and with three mounting screws M6 x 6 mm. |
| Choose CAD format here: INFO_TEXT |
| Download here: |
3D CAD files are for reference only and are not a quality document. Errors may occur. Read full disclaimer
The 3D CAD models are provided as a design aid and for reference only. They are not a quality document and do not replace official product specifications, technical drawings or data sheets. Simplifications, inaccuracies or errors can occur, for example in dimensions, tolerances or details, and may also arise when files are converted between formats. Industrilås accepts no liability for errors in the CAD files or for any consequences of their use. Always verify critical dimensions against the current product documentation, or contact us if you are unsure.
| CAD* | P/N | Surface treatment | Opening Angle |
|---|---|---|---|
| 321110 | Zinc plated | 180° | |
| 321610 | Black powder coated | 180° |
