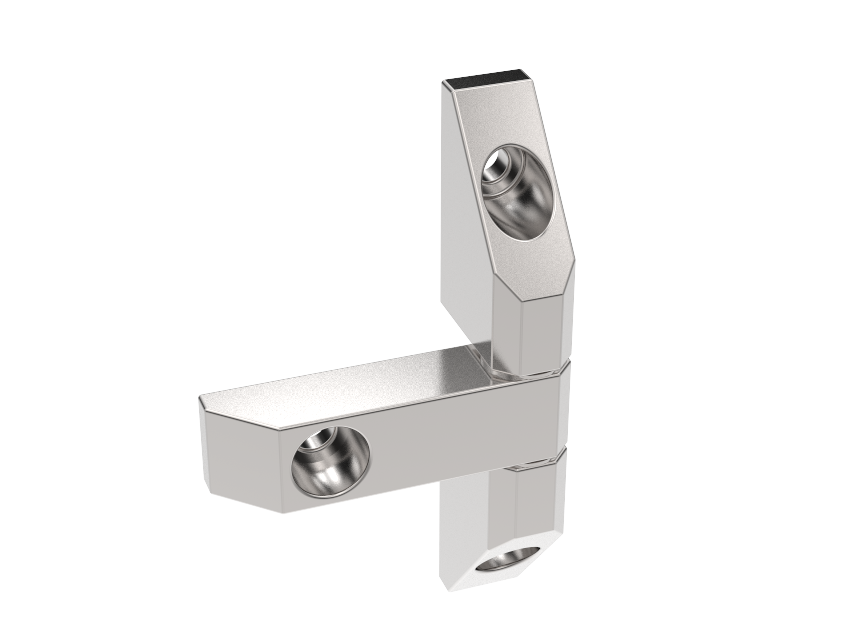

External Bolt-On Hinge 180°
Index Code:3-525
Bolt-on hinge for surface mounted doors with recessed holes for outside mounting. Universal left and right mounting. Opening angle 180°.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Hinge | Zinc die cast, zinc plated, chrome plated or black texture powder coated |
|---|---|
| Pin | Brass, nickel plated |
| Washer | Brass, nickel plated |
| Notes | Supplied assembled. |
|---|
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
