External Heavy-Duty Hinge 180°
Index Code:3-680

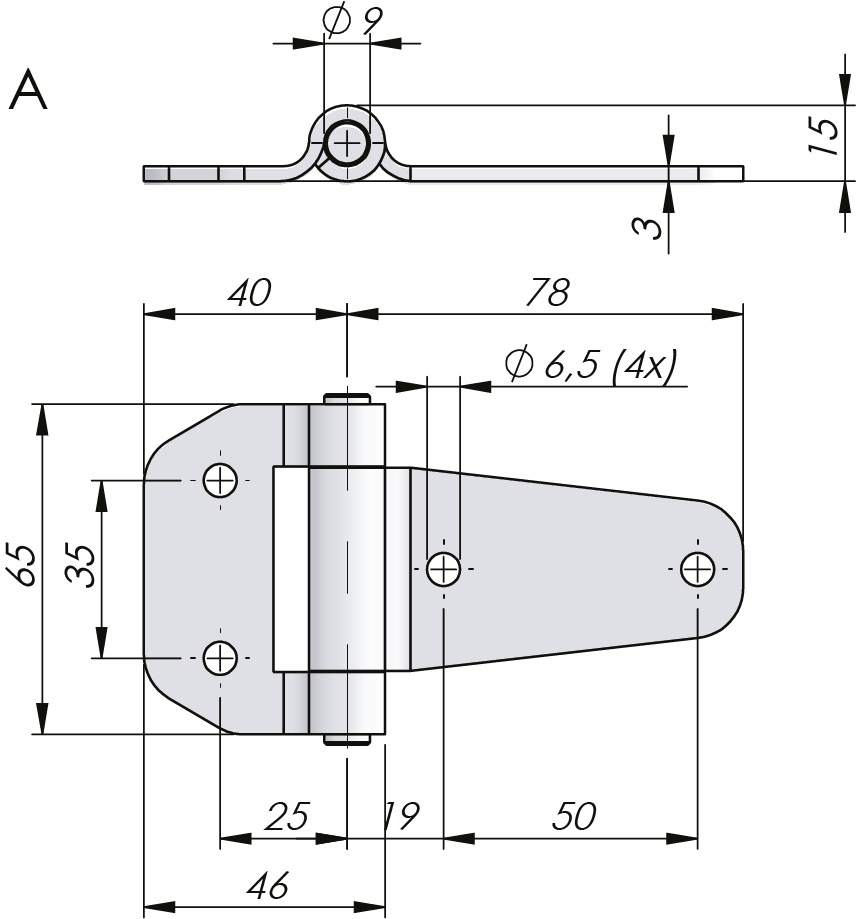

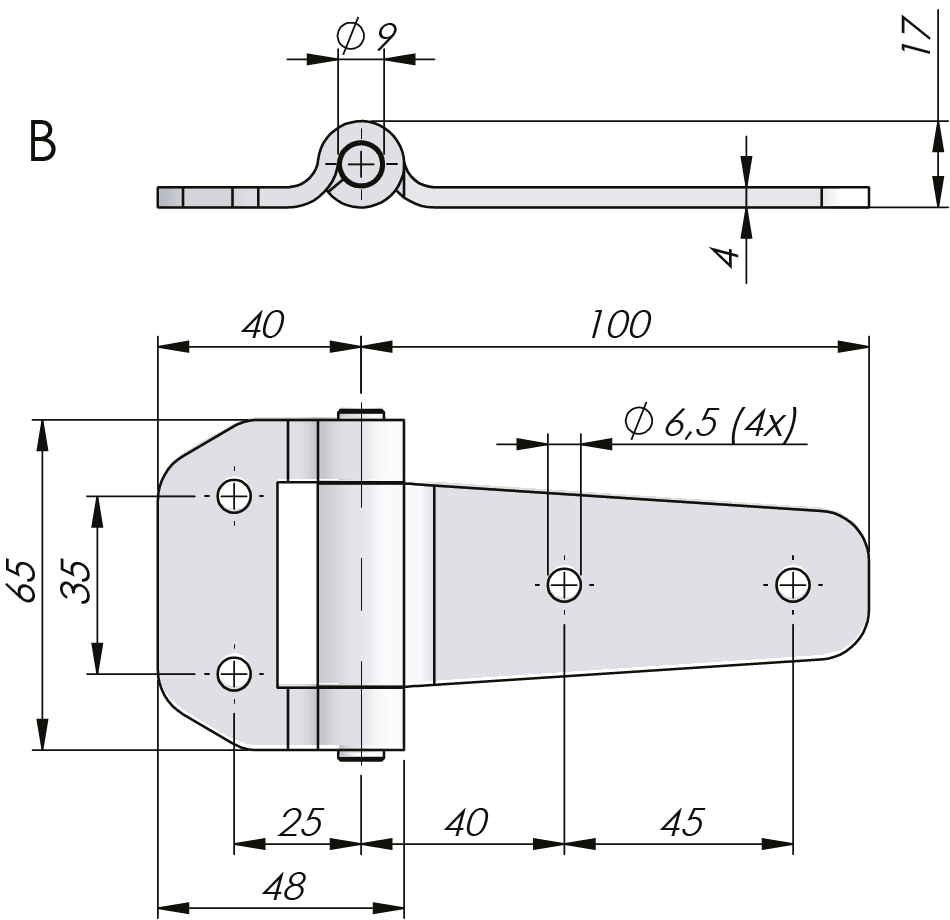

Heavy-duty rolled hinge for mounting with screws or rivets that is ideal for vehicles. The hinge-leaves are folded, designed for a flat surface mounting, and the four holes have a hole diameter of Ø 6,5 mm. Opening angle 180°. The hinge pin is fixed.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Hinge | Steel, zinc plated |
|---|
| Standards | DIN EN 61373 |
|---|
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
