180° opening angle of hingesUniversally right or left mountedLift-off function

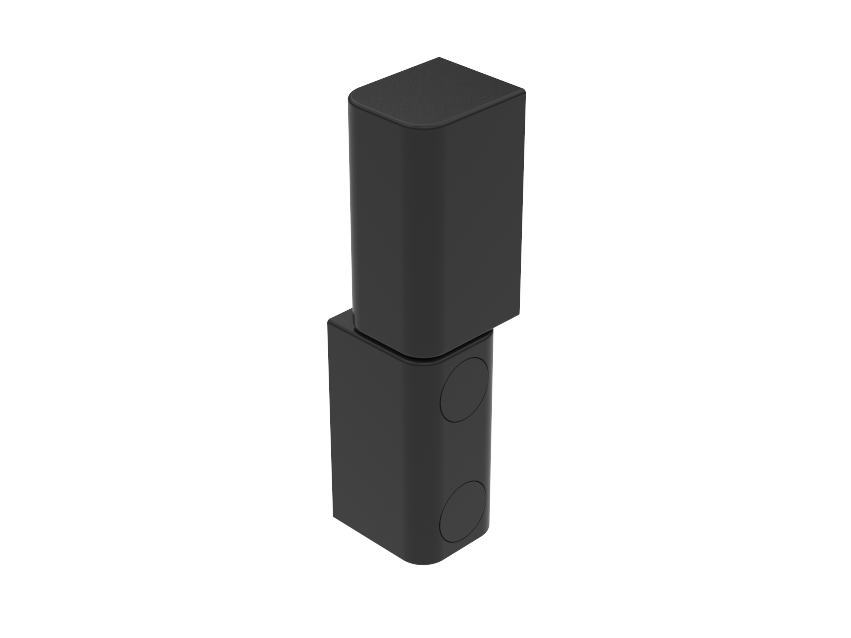

External Lift Off Hinge 180°

Index Code:
3-130

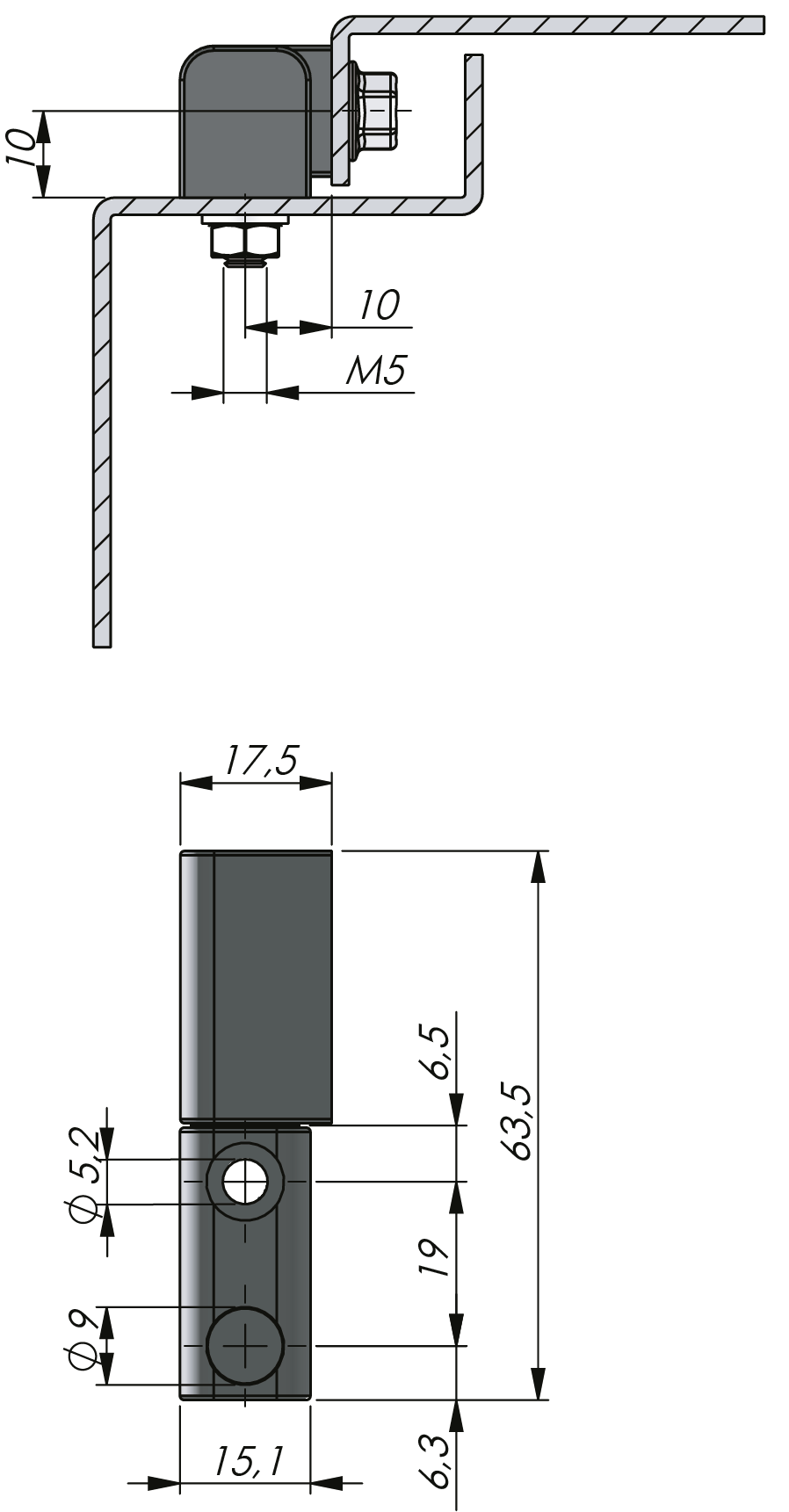

Lift-off hinge for external mounting for surface mounted doors. Concealed screws on the door part is mounted from the inside, and screws on the frame part is mounted from the front. Supplied with plastic covers for recessed hexagon M5-screw according to DIN 912. Universal right and left mounting.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
HingeZinc die cast, black powder coated
Choose CAD format here:

To download CAD-Files for this product
1. Select CAD-format
2. Click the green cube icon to generate CAD-Files
3. Wait until the download symbol is completed
4. Click the download symbol to download

Download here:
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account

Other surface treatments on request.
