External Lift Off Hinge 180°
Index Code:3-570

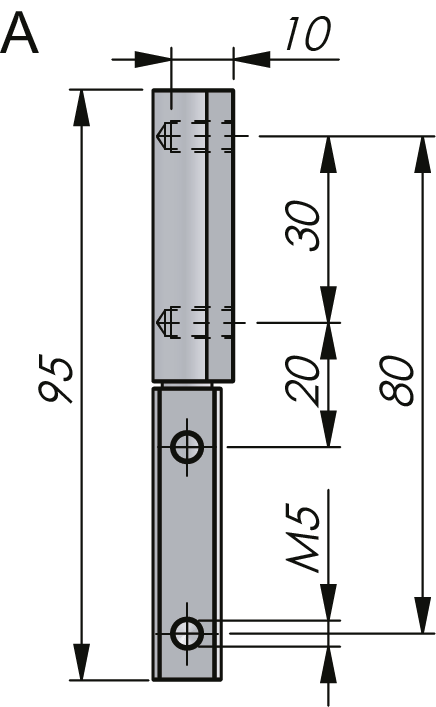

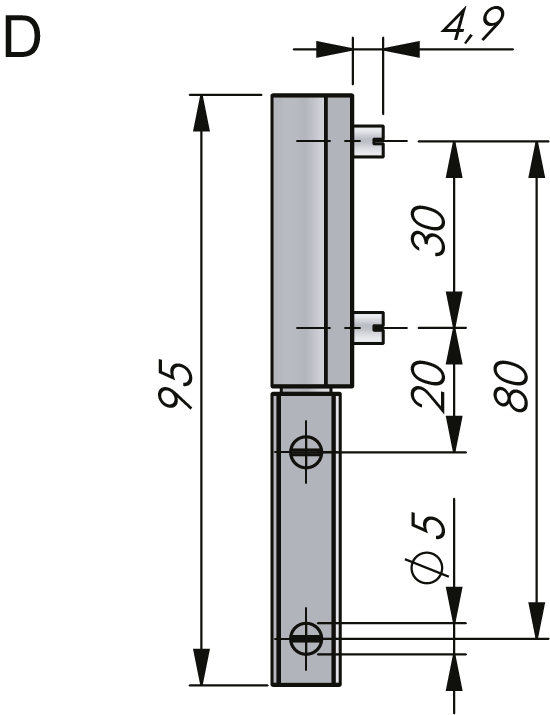

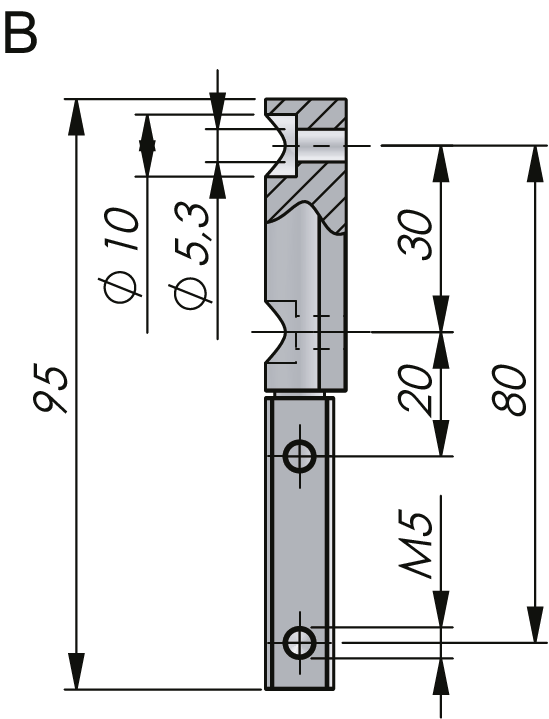

Profile hinge for external mounting on surface mounted doors with universal left and right mounting. Opening angle 180°. Screw-on or weld-on mounting options.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Cover | Stainless steel 304 |
|---|---|
| Hinge | Steel, zinc plated |
| Pin | Steel, zinc plated |
| Screw | Steel, zinc plated |
| Washer | Brass, zinc plated |
| Notes | Screw-on version is supplied with screws, screw covers and washers. Weld-on version equipped with studs to simplify positioning. The combination of weld-on and screw-on mounting may be supplied on request. |
|---|
