External Lift Off Hinge 80x65 mm 180°
Index Code:3-413

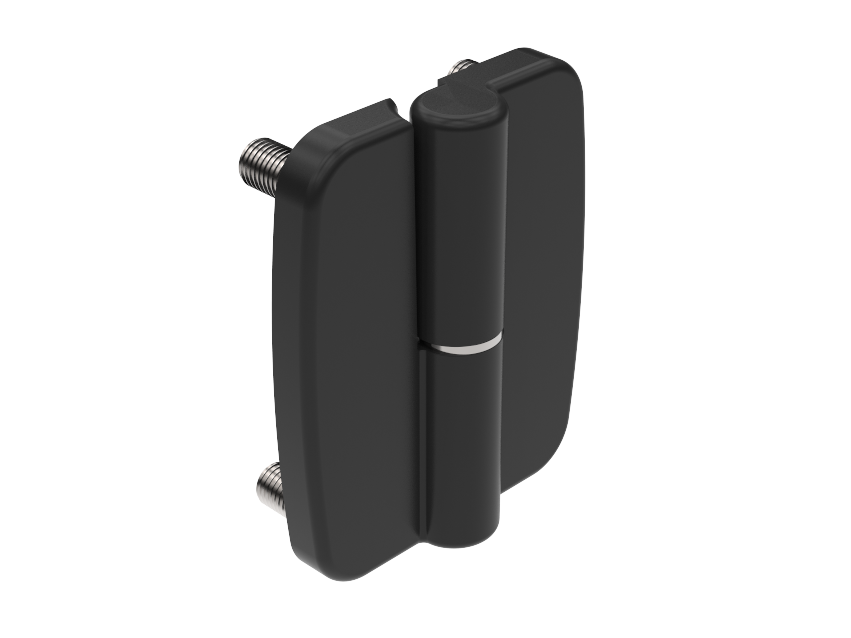

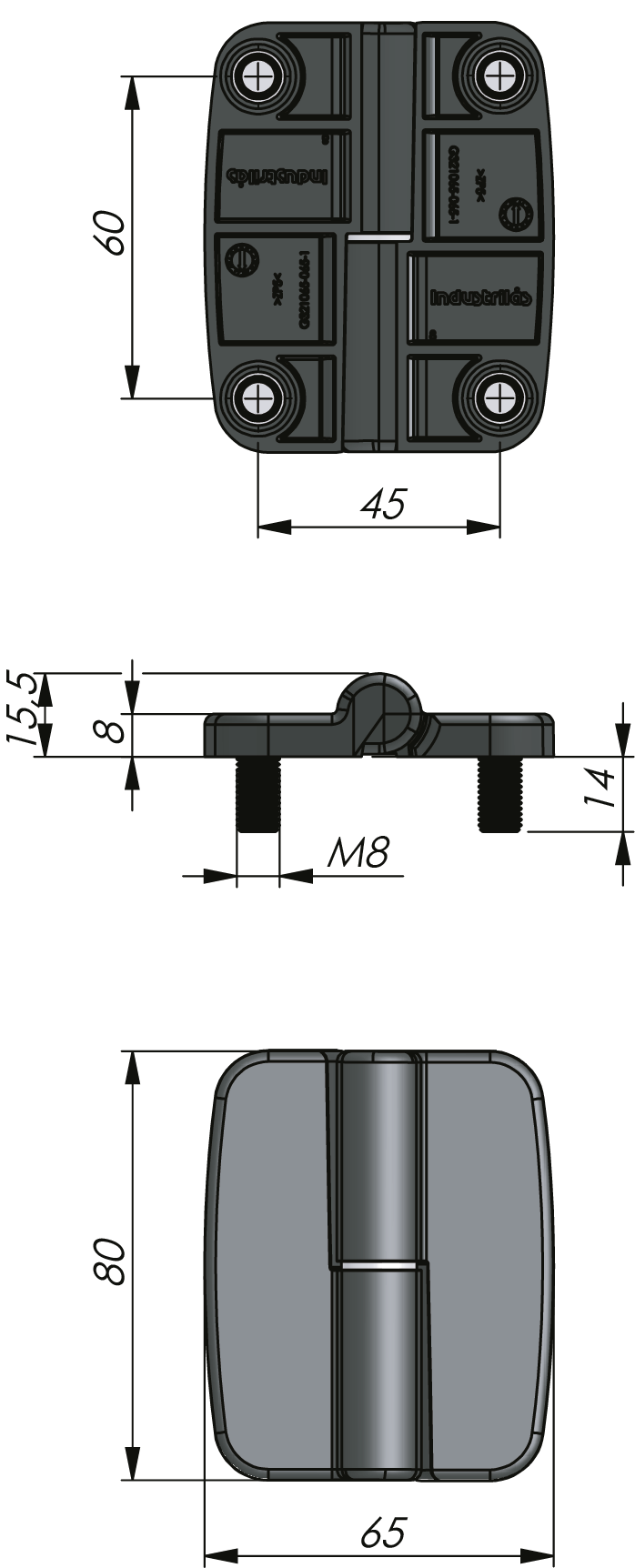

External lift-off hinge with cast-in M8-bolts. Available in left and right hinged version. Version for left hinged door is shown in the drawing. Opening angle 180°.
Nuts or washers are not supplied with the hinge, but may be ordered separately (see part numbers under Related products, Accessories on this page).
Download PDF | Product Data Sheet |
Download PDF | Cabinet Design Examples |
Download PDF | Cabinet Design Examples |
Download PDF | Recommended Tightening Torque |
Cast-in bolts | Stainless steel 303 |
---|---|
Hinge | Zinc die cast, black texture powder coated |
Nut | Steel, zinc plated |
Pin | Stainless steel 303 |
Washer | Steel, zinc plated |
