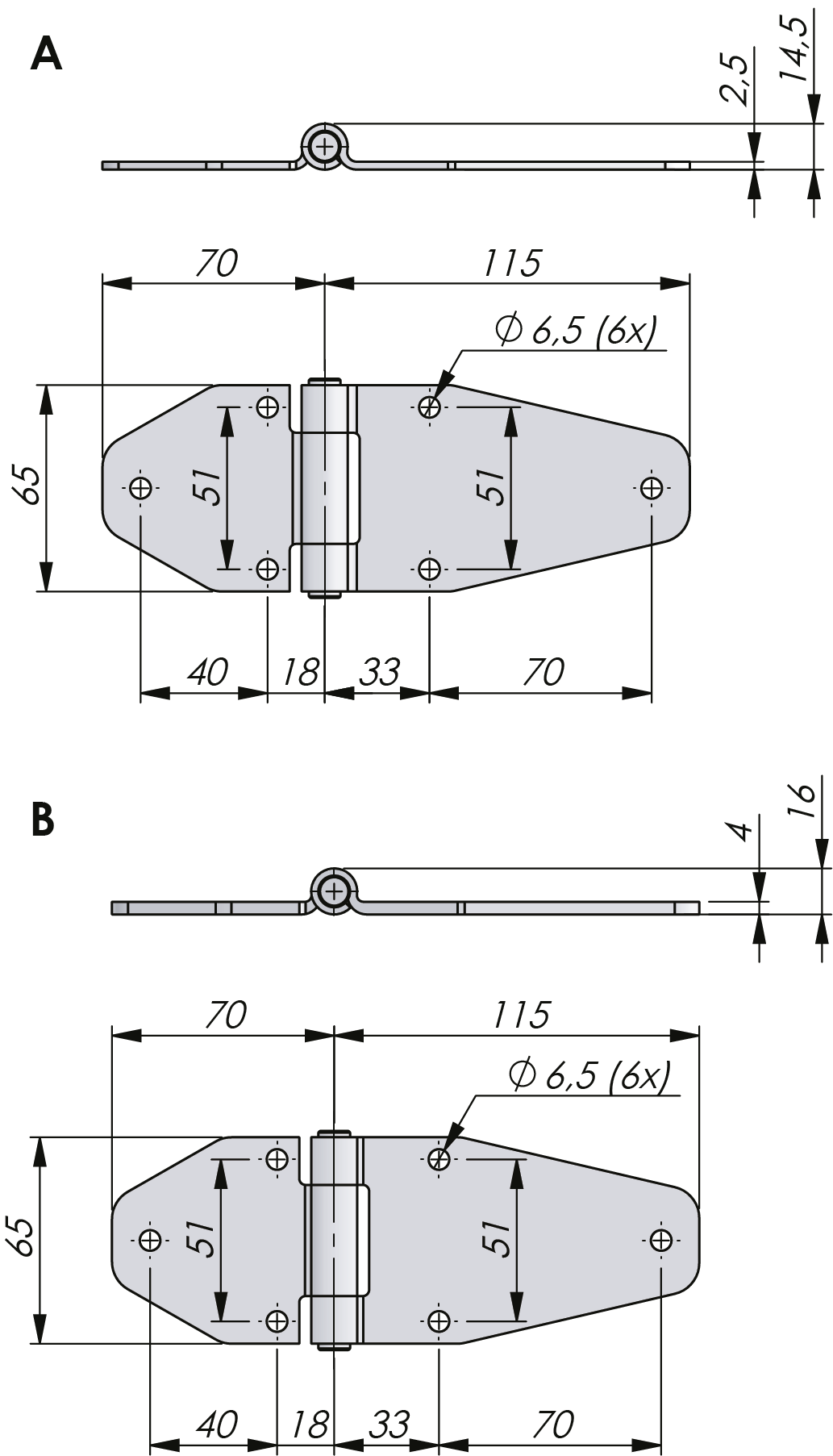

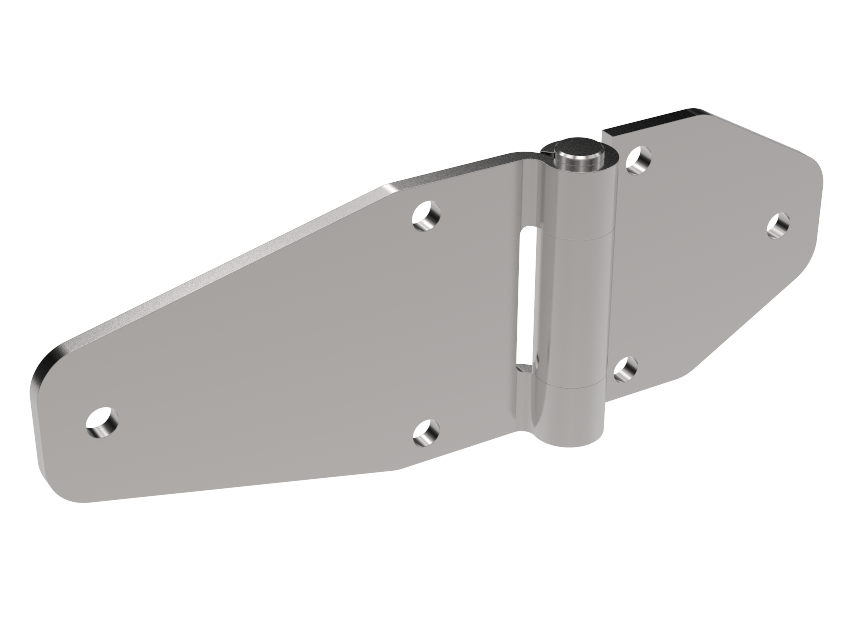

External Heavy-Duty Hinge 180° Stainless Steel

Index Code:
6-466

Heavy-duty rolled hinge for mounting with screws or rivets that is ideal for vehicles. The hinge-leaves are folded, allowing for a flat surface when mounting, and the six mounting holes have hole diameter Ø 6,5 mm. Opening angle 180°. The hinge pin is fixed.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
HingeStainless steel 304
StandardsDIN EN 61373
