Handle rotation 90° in both directionsOpening angle of hinges, applicable angle shown in numbers

Klima-flex 1 Roller Cams

Index Code:
2-312ab

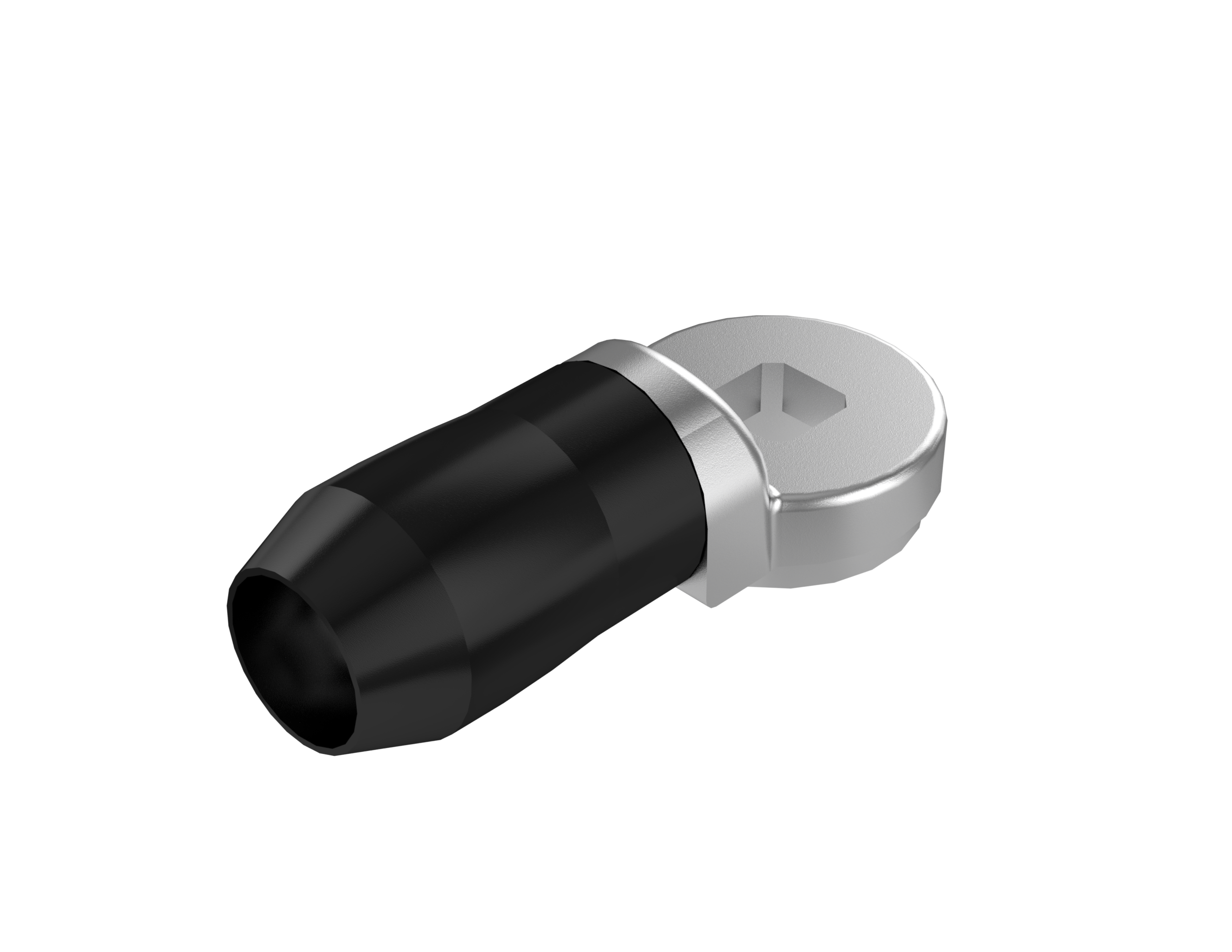

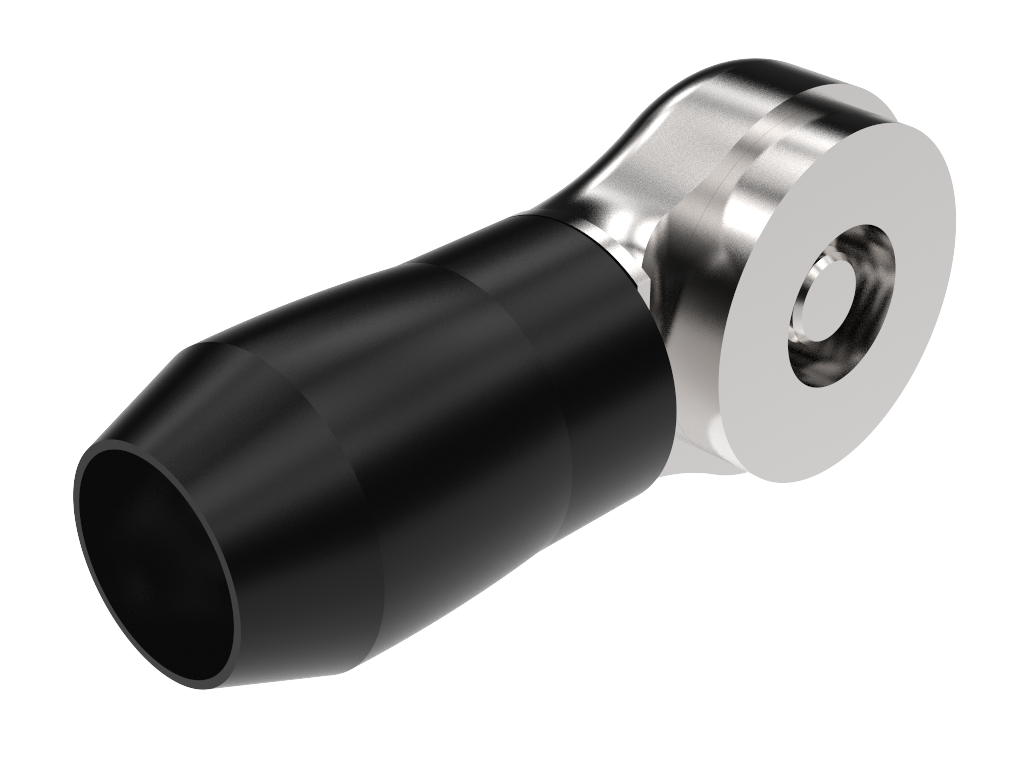

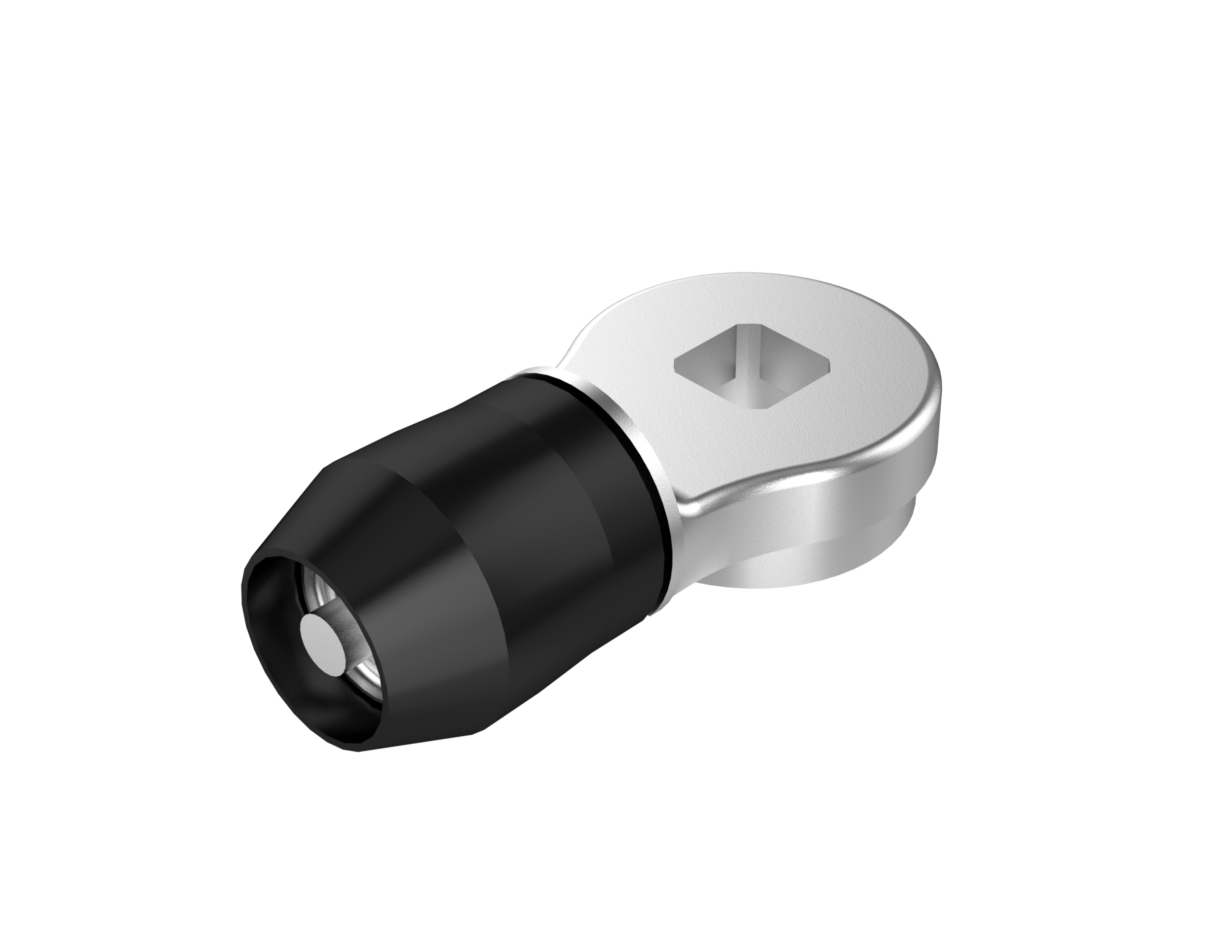

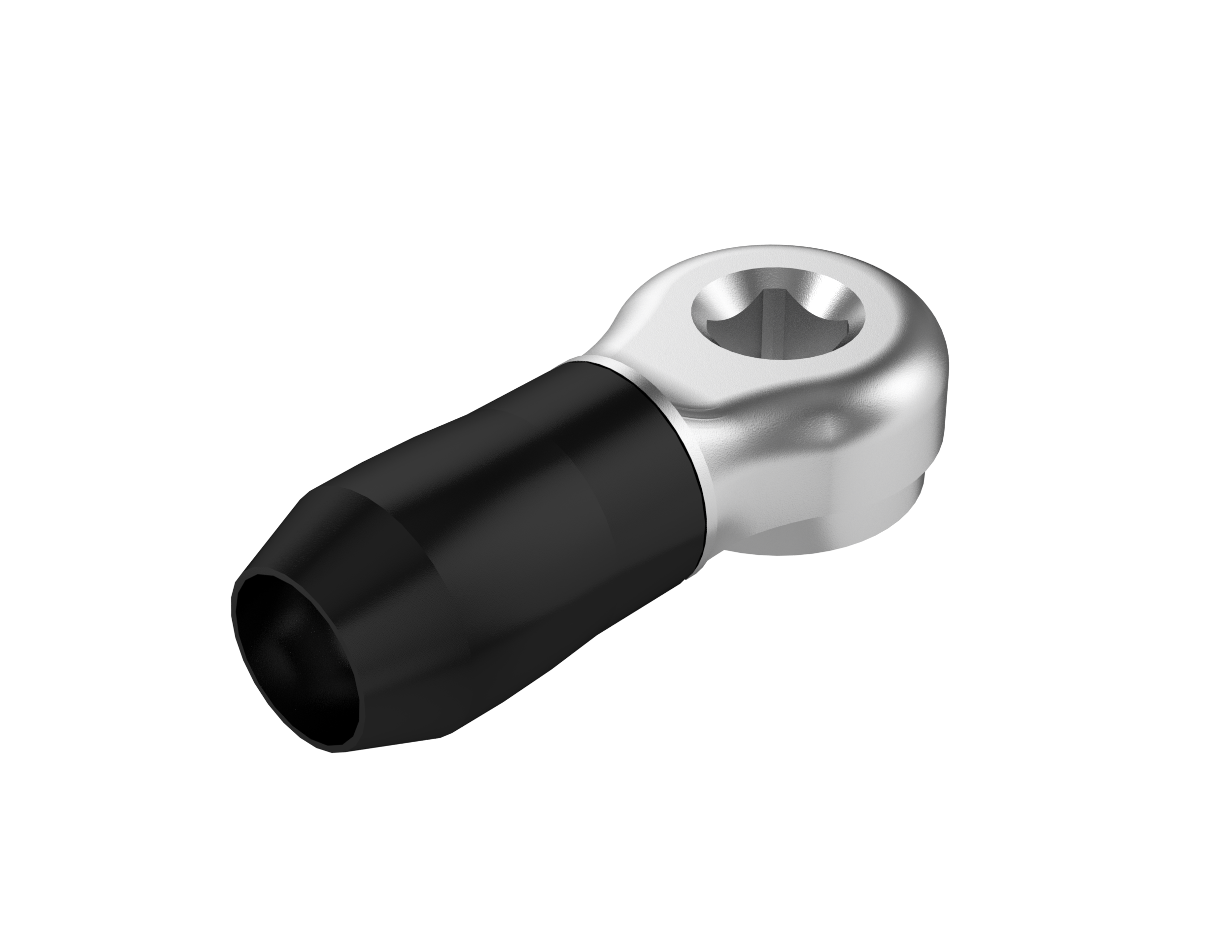

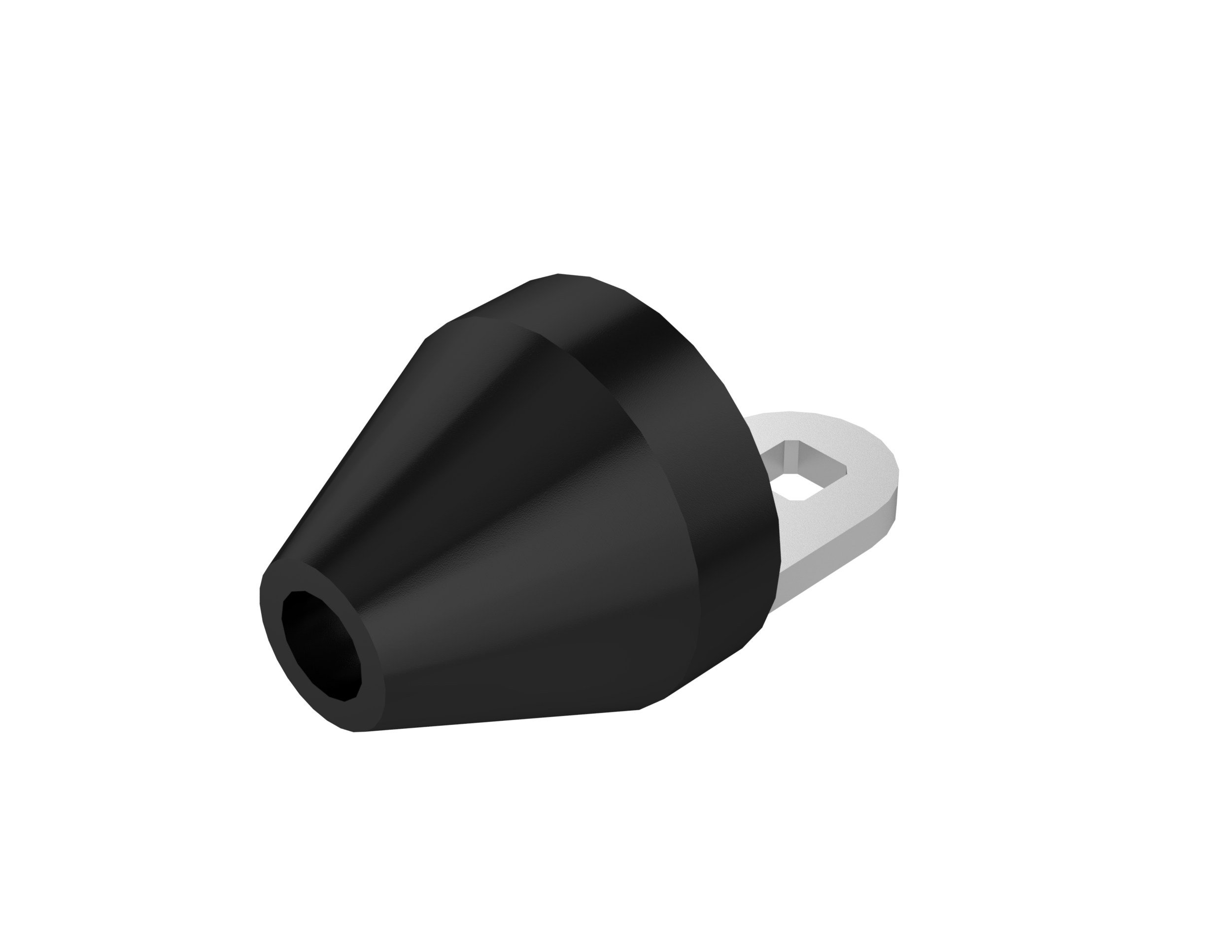

Roller cams for Klima-flex 1. The roller cams reduce operational friction and increase the gasket compression.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
Roller camZinc die cast, zinc plated, steel, zinc plated and glass fibre reinforced Polyamide (PA6GF30), black
Notes Inside handle is only approved in combination with non-locking outside handle.
