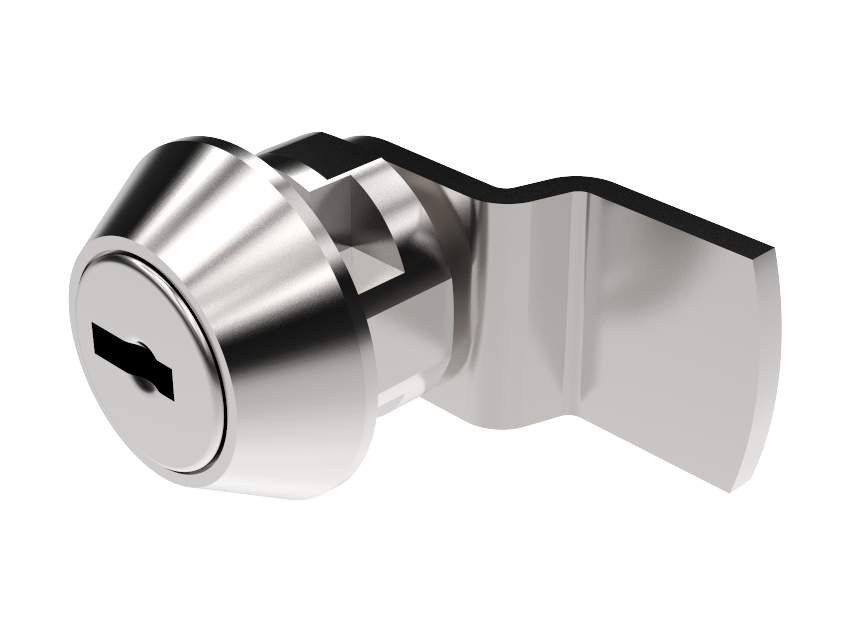

Cylinder Locks
Index Code:2-610

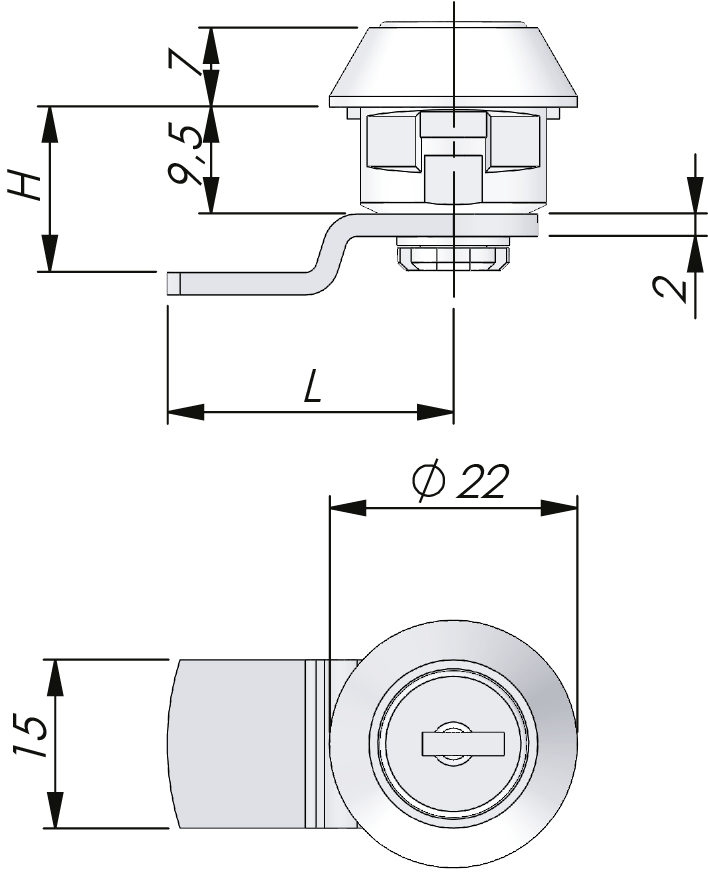

Cylinder lock with clip-in mounting. The product number is individual for each specific application. Refer to lock type 4900, define the L- and H-measurement according to attached drawing, mounting context and requirements, for defining the unique product number.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Clip | Steel, zinc plated |
|---|---|
| Cam | Steel, zinc plated |
| Cylinder | Zinc die cast, stainless steel 304 cap |
| Housing | Zinc die cast, chrome plated |
| Cylinder information | Master key system on request Supplied with two keys |
|---|---|
| Notes | Products are available on request only. |
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
