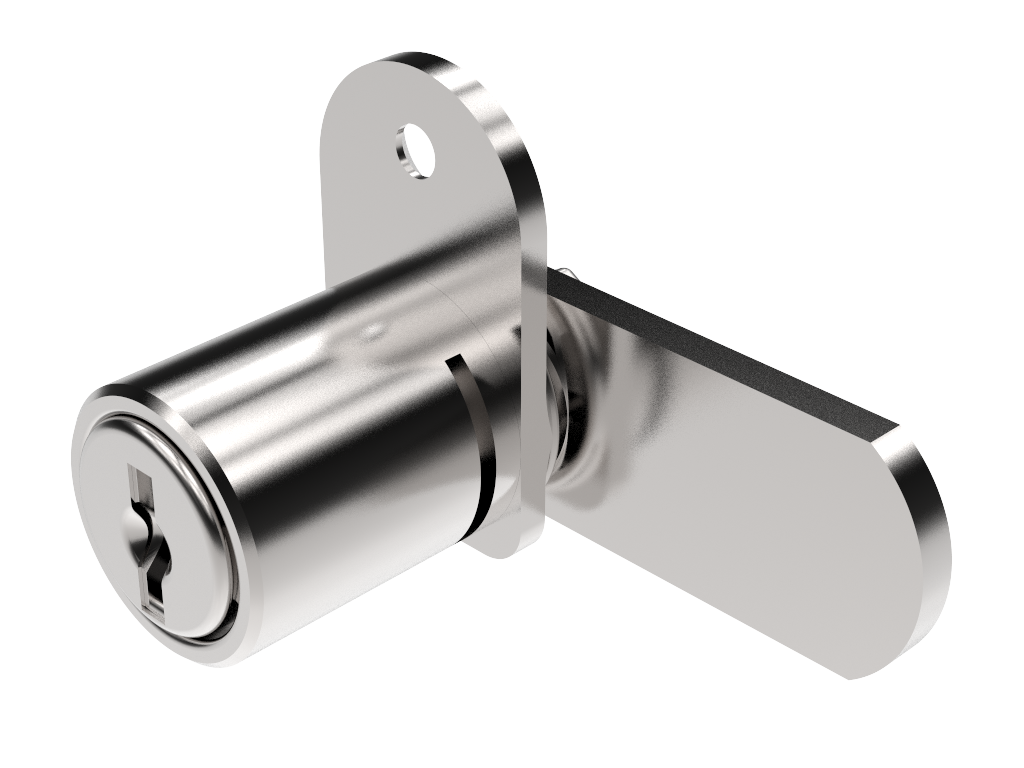

Cylinder Locks
Index Code:2-645
Cylinder lock for mounting in wooden doors and panels. The product number is individual for each specific application. Refer to lock type 32300, mounting context and requirements, for defining the unique product number. Supplied with front collar.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Cam | Steel, zinc plated |
|---|---|
| Collar | Steel, chrome plated |
| Cylinder | Zinc die cast, stainless steel 304 cap |
| Housing | Zinc die cast, chrome plated |
| Cylinder information | Master key system on request Supplied with two keys |
|---|---|
| Notes | Products are available on request only. |
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
