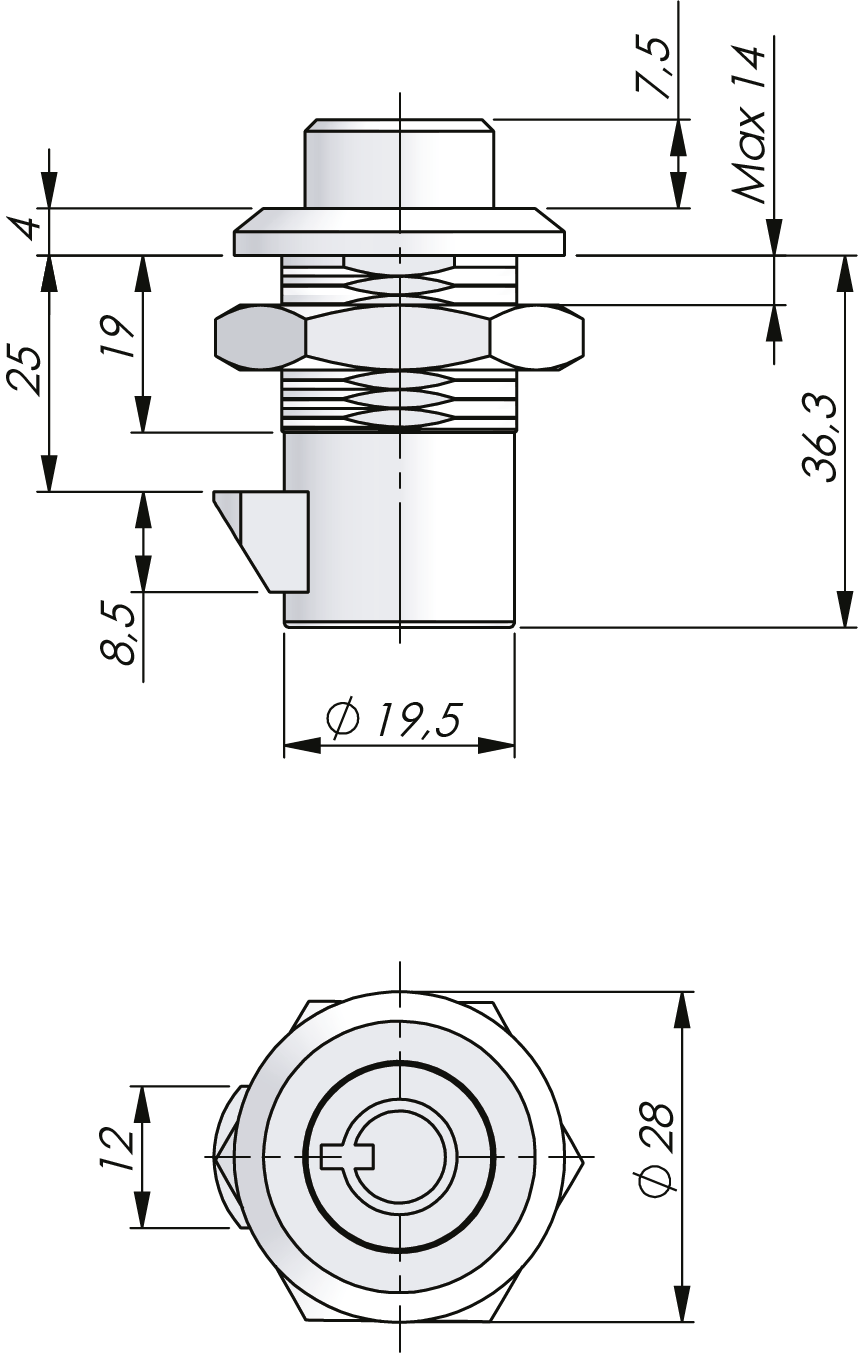

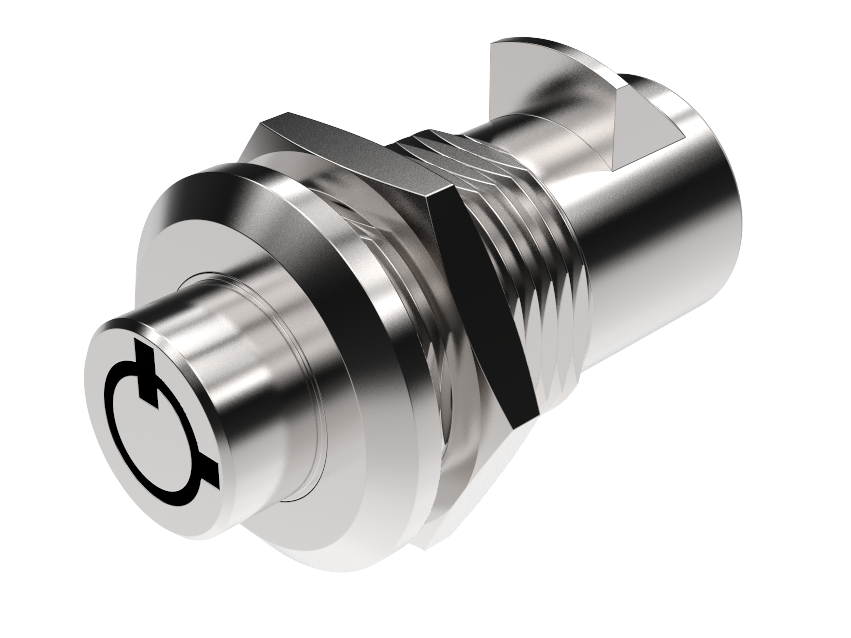

Push-Button Slam Latch
Index Code:2-741
7-pin tubular cam-lock with slam-latch-action. The spring loaded cam is operated by the lockable push button. Supplied with mounting nut.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Download PDF | Industrilas cut out versions |
| Cam | Zinc die cast, chrome plated |
|---|---|
| Housing | Zinc die cast, chrome plated |
| Nut | Zinc die cast, chrome |
| Cutout | COMBI |
|---|---|
| Cylinder information | Supplied with two keys |
| Key extraction | Open / Closed |
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
